Description

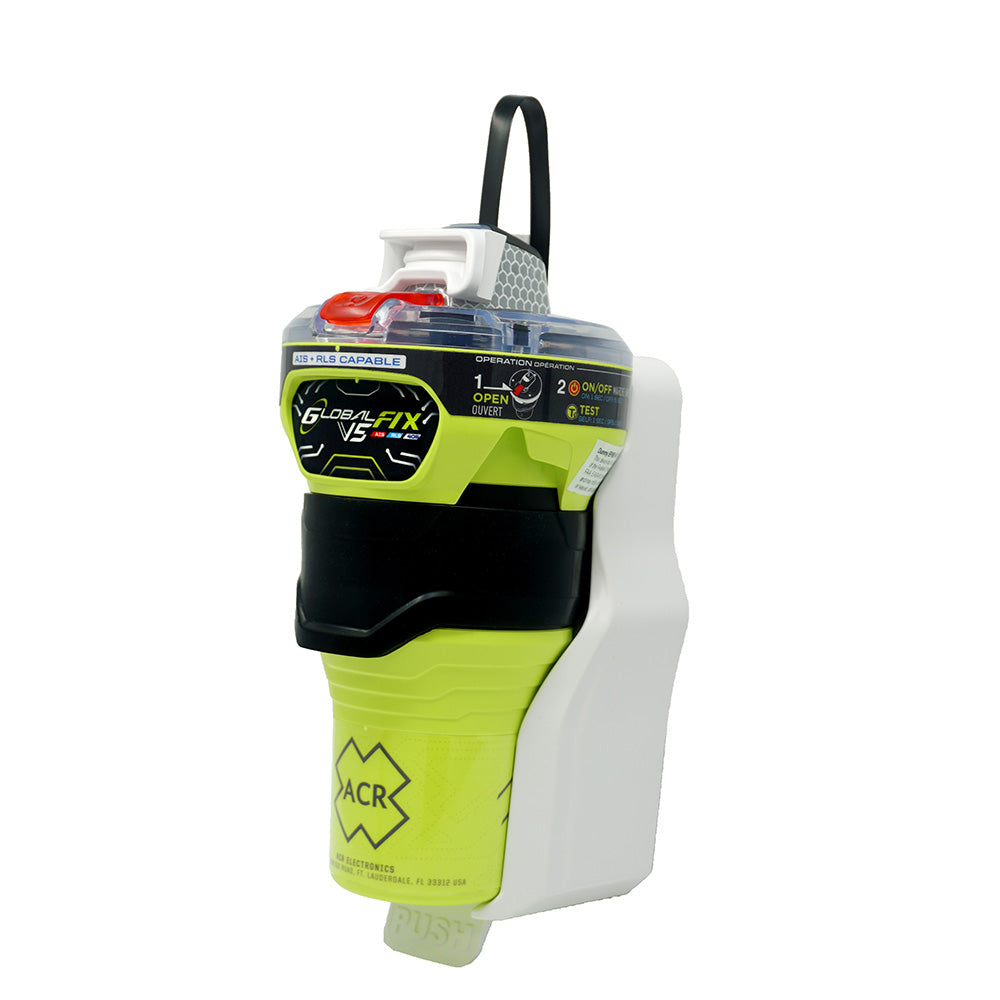

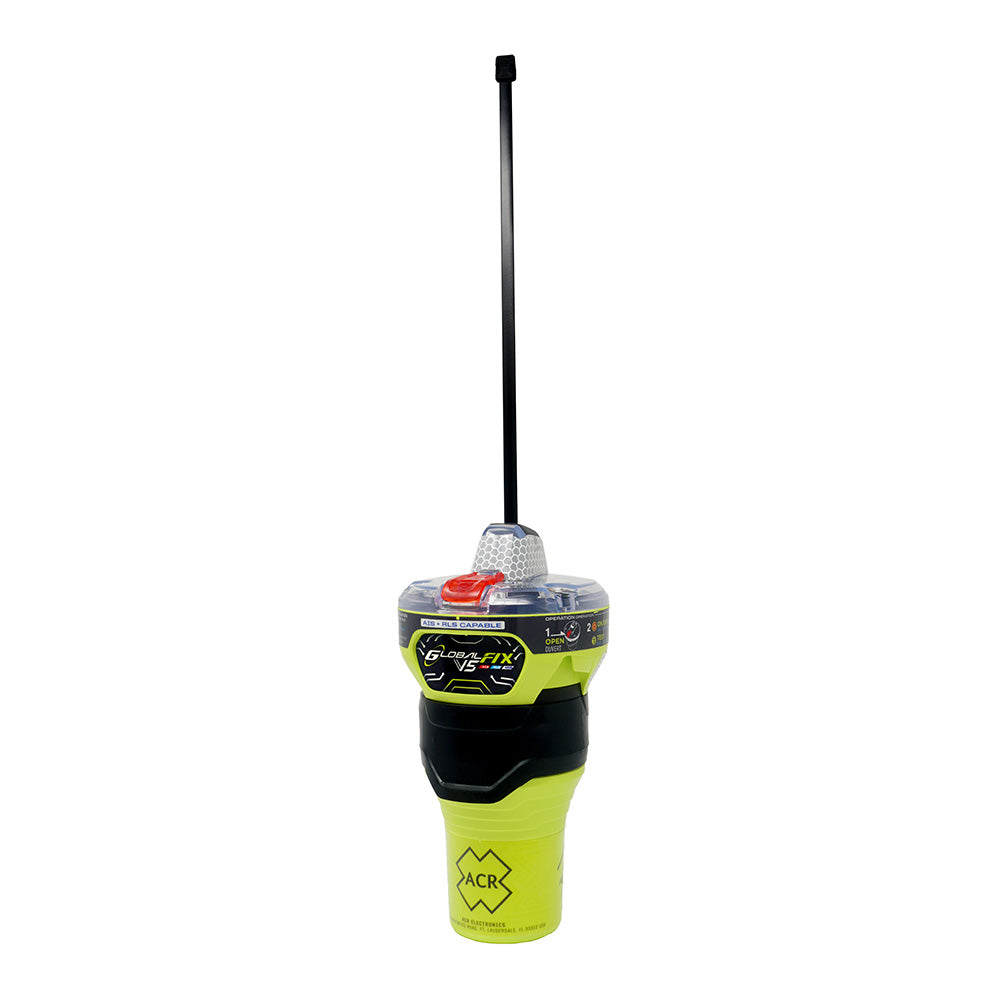

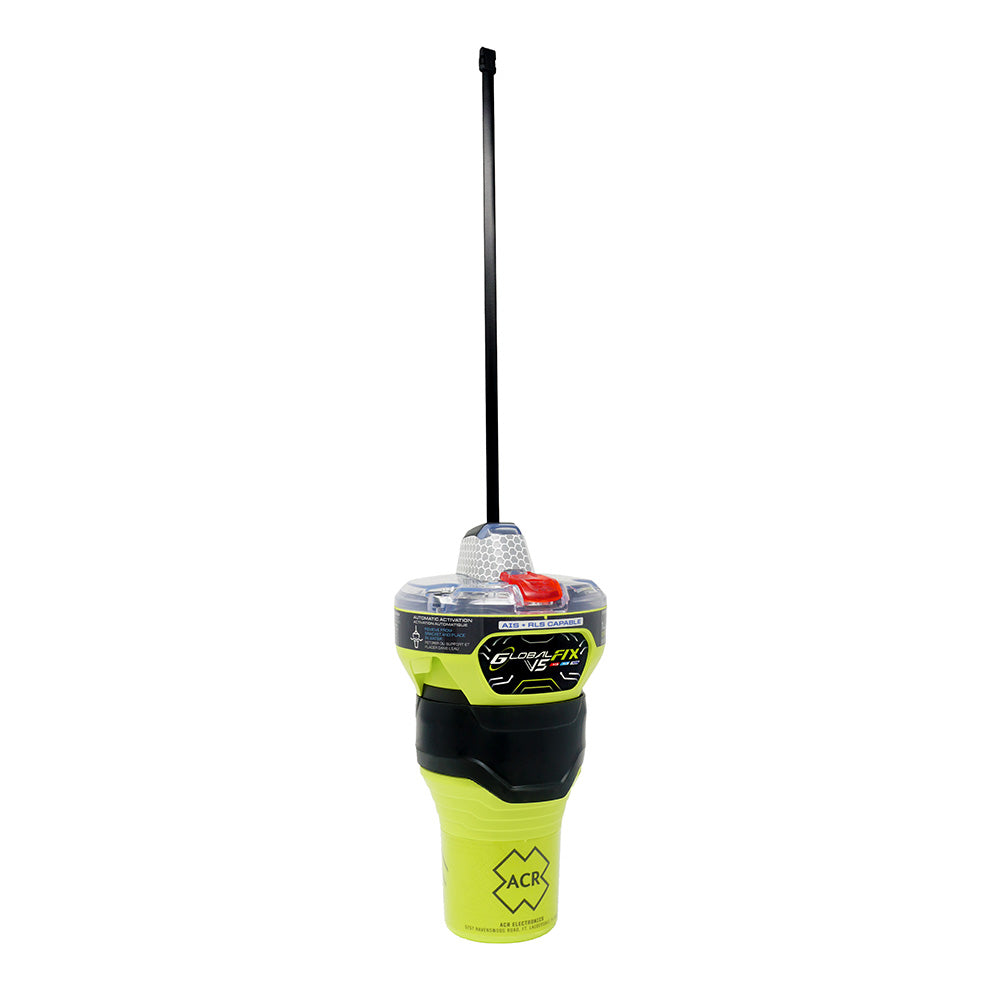

GlobalFix™ V5 Cat 1 GPS AIS EPIRB with Return Link Service & Mobile App
The ACR GlobalFix V5 EPIRB combines 406 MHz satellite connectivity with Automatic Identification System (AIS) functionality. This means that when the EPIRB is activated not only does it transmit your emergency signal to the global Cospas Sarsat satellite rescue system, but it broadcasts an AIS safety message on VHF-frequencies that can be seen immediately by any AIS-equipped vessel nearby. Other great features include Return Link Service (RLS) technology that provides visual confirmation to the user that their distress message has been received, a 121.5 MHz homing signal, and visible and infrared strobe lights for easy target identification at night or in poor visibility. Another feature is Near Field Communication (NFC) which allows users to monitor their EPIRB using a smartphone App. ACR is the global leader in marine safety and rescue technology and the GlobalFix V5 GPS EPIRB with AIS combines the durability and reliability they are known for with advanced technology designed to speed rescue response time.
Faster Rescues through the Pairing of Global and Local Rescue
The ACR GlobalFix V5 EPIRB accurately derives its position anywhere in the world using GNSS (GPS, Galileo, Glonass) positioning networks. Upon activation 406 MHz distress transmissions relay the GPS EPIRB (GPIRB) position, accurate to within 100 meters, to the worldwide Cospas Sarsat search and rescue satellite network. EPIRB identifiers and position information is relayed to ground stations through the satellite system initiating rescue operations. With advanced AIS technology now incorporated into the EPIRB, once activated an AIS signal is transmitted so that nearby vessels outfitted with an AIS transponder are instantly notified of the EPIRB location. AIS-equipped vessels within the VHF range of the EPIRB will see a safety message on their screens including MMSI vessel identification. Vessels in the area where the EPIRB has been activated can then start rescue and recovery operations immediately without having to wait for an emergency response from the applicable SAR authority. AIS also allows local responders to easily pinpoint the EPIRB’s location which is presented as an AIS target on their onboard display. Nearby vessels with onboard AIS can navigate directly to the EPIRB by selecting the AIS target. This incredible technological advancement will speed recovery times which is sure to save lives.
Smartphone Connectivity utilizing Near Field Communication (NFC)
NFC (Near Field Communication) technology allows users to access EPIRB diagnostics using their smartphones. When a smartphone is placed adjacent to the GlobalFix V5 EPIRB the ACR Product App automatically opens providing access to EPIRB data. Beacon status information in the app includes current battery life, number of self-tests completed, number of GNSS tests completed, and the amount of time the EPIRB has been activated. Detailed information on each self-test and GNSS test performed by the device is also available. GNSS tests show a map view pinpointing where the previous test was performed, the date and time of the test, how long it took the EPIRB to get a fix on the GNSS coordinates, the number of satellites used to obtain that fix, and the accuracy of the fix. Easy App connectivity with NFC allows users to easily check the status of all EPIRB functions to ensure it is working properly.
Return Link Service (RLS)
Return Link Service tells whoever triggers the EPIRB that the distress message has been delivered. An RLS signal sent back through the Galileo satellite network confirms that the distress message along with the precise beacon location and identifiers have been detected. An easy-to-see flashing blue light indicates the EPIRB’s successful reception of the Return Link message from the Galileo satellite network. The comfort of knowing rescuers are aware that an EPIRB has been activated and that they have its location helps reduce the stress associated with mayday situations.
ACR specializes in electronic rescue devices and other life-saving products designed for both professional and recreational mariners. With the addition of AIS, the innovative ACR GlobalFix V5 EPIRB provides the easiest and quickest path to rescue. Return Link Service provides a welcomed sense of security knowing that your distress message has been received and Near Field Communication provides access to data and product functionality that has never before been available to any EPIRB customer. The advanced feature set of the GlobalFix V5 EPIRB makes it perfect for mariners whether coastal cruising, working offshore, or crossing oceans.
Specifications:
- Output Power (406/121.5): 406.040 MHz, 5W (nominal) / 121.5 MHz, 50mW (nominal)
- AIS: Yes, AIS Alerts for Local Rescue
- Return Link Service: Yes, Enabled RLS confirmation direct to beacon
- NFC/Mobile App: Yes, Near Field Communication (NFC) and Mobile App Included
- Strobe: White & Infrared Dual Technology
- Size (antenna up) – Beacon Only: 18.5” x 4.3” x 4.36” (470 mm x 109 mm x 111 mm)
- Weight – Beacon Only: 1.78 lbs (810 G)
- Battery: Lithium battery, Li/FeS2
- Battery Replacement: 10-year replaceable battery (replace 10 years after the date of manufacture or after activation)
- GPS: 72 Channel Multi-constellation receiver (GPS, Galileo, & Glonass GNSS)
- Activation: Out of bracket and wet, or manually in or out of the bracket
- Waterproof: 33 ft (10 m) for 5 min.
- Buoyant: Yes
- Operational Life: 48 hours minimum @ -4°F (-20°C)
- Deployment: Category I – Hydrostatic Release (auto deploy)
- Warranty: 5 years
- Approvals: Cospas-Sarsat/FCC/MED/MER Approved
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Category: 1
- Operational Life (Hours): 48 hours minimum
- Box Dimensions: 7"H x 7"W x 17"L WT: 3.9 lbs
- UPC: 791659028513
