Description

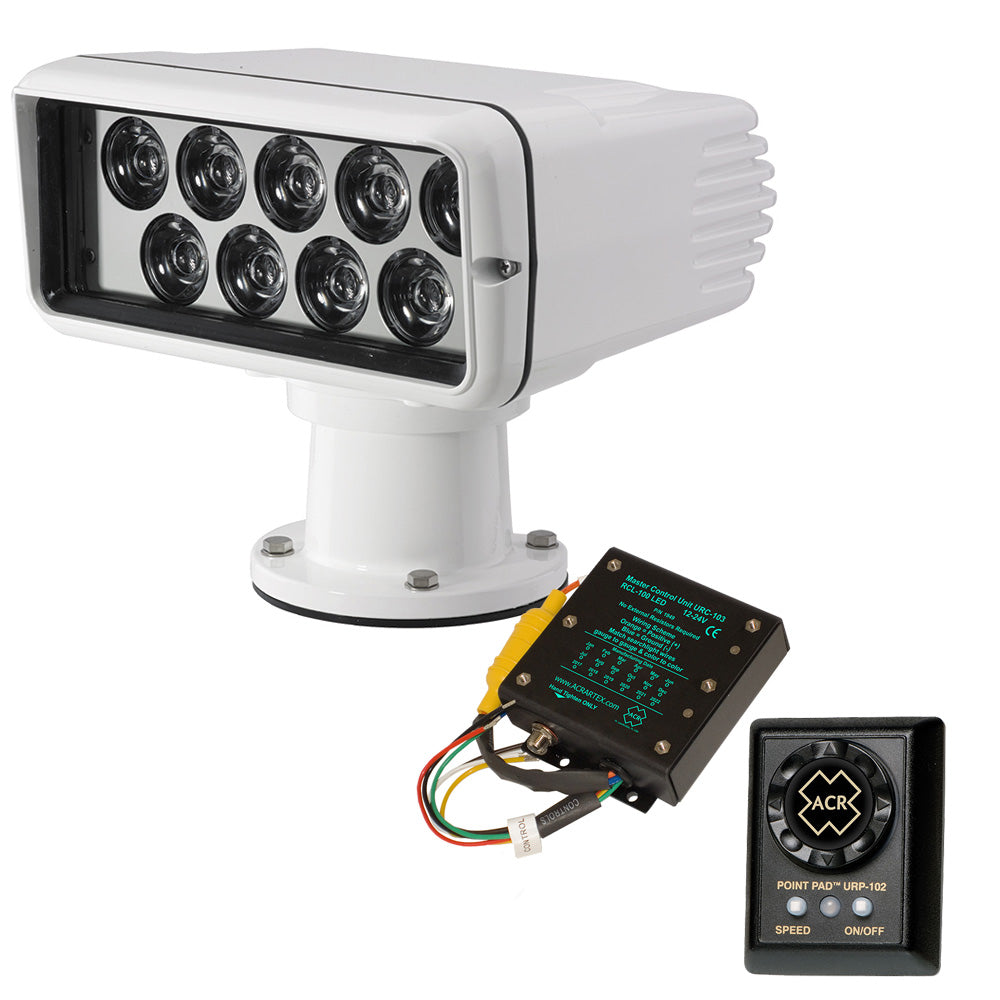

ACR RCL-100 LED Searchlight Kit - 12/24V - White
Not all searchlights are created equally.
The LED version of our most popular RCL-100D searchlight provides high intensity LED performance that pierces through nights and low lighting conditions with a blazing 220,000 candela. The RCL-100 LED’s traditionally sleek design makes it an attractive and cost-effective choice for sport yachts, mega-yachts, sport fishers and light commercial vessels.
The die-cast aluminum case is triple-primed and painted with UV stabilizer to withstand years of exposure in the harsh marine environment. The light’s internal elevation mechanisms are fully enclosed and provide precise pitch control of the beam while staying protected. The LED bulbs are efficiently designed to provide over 40,000 operating hours. The light also includes our Exclusive XRCiZ™ feature that is pre-programmed and allows for the light to independently rotate every 30 days from activation to ensure all bearing surfaces are free of corrosion and all electrical contacts functional.
this package also includes a URP-102 Point Pad™ controller and URC-103 Master Controller. All this makes for a powerful searchlight that is easy to use from multiple control points.
Features:
- Ultra-bright, 9 LED array generating over 220,000 peak candela
- Efficient, long-life LED’s - 40,000 operating hours
- Reduced power consumption
- The controller has state-of-the-art electronics to protect the light from most power surges
- Internal elevation mechanism for precise pitch control of beam
- Rugged triple-primed and sealed, marine-grade aluminum housing
- Cababe of working with up to three remote Point Pad™ units
- Exclusive XRCiZ™ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional
Technical Specifications:
- Color - White
- Material - 518 Die-cast aluminum
- Operation - Dash Mount Point Pad™
- Voltage Input - 12/24 VDC
- Rotation - 360° continuous
- Light Pattern - Spot
- Light Distance - 4,501' (1,372 M)
- Dimensions (H x W x D) - 8" x 9" x 8" (20.3 x 22.9 x 20.3 cm)
- Dimensions (Footprint Diameter) - 4.75" (12.7 cm)
- Weight - 7.2 lb (3.2 kg)
In the Box:
- RCL-100 LED Searchlight (12/24 V)
- Dash Mount Point Pad™ controller (URP-102)
- Master controller (URC-103)
- Instruction manual
*Sold as an Individual
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.Specifications:
- Wireless: No
- Voltage - Input Range (Volts): 12 - 24
- Candle Power: 220,000
- LED: Yes
- Box Dimensions: 11"H x 11"W x 13"L WT: 13.4 lbs
- UPC: 791659019511
Owner's Manual (pdf)
Brochure (pdf)
