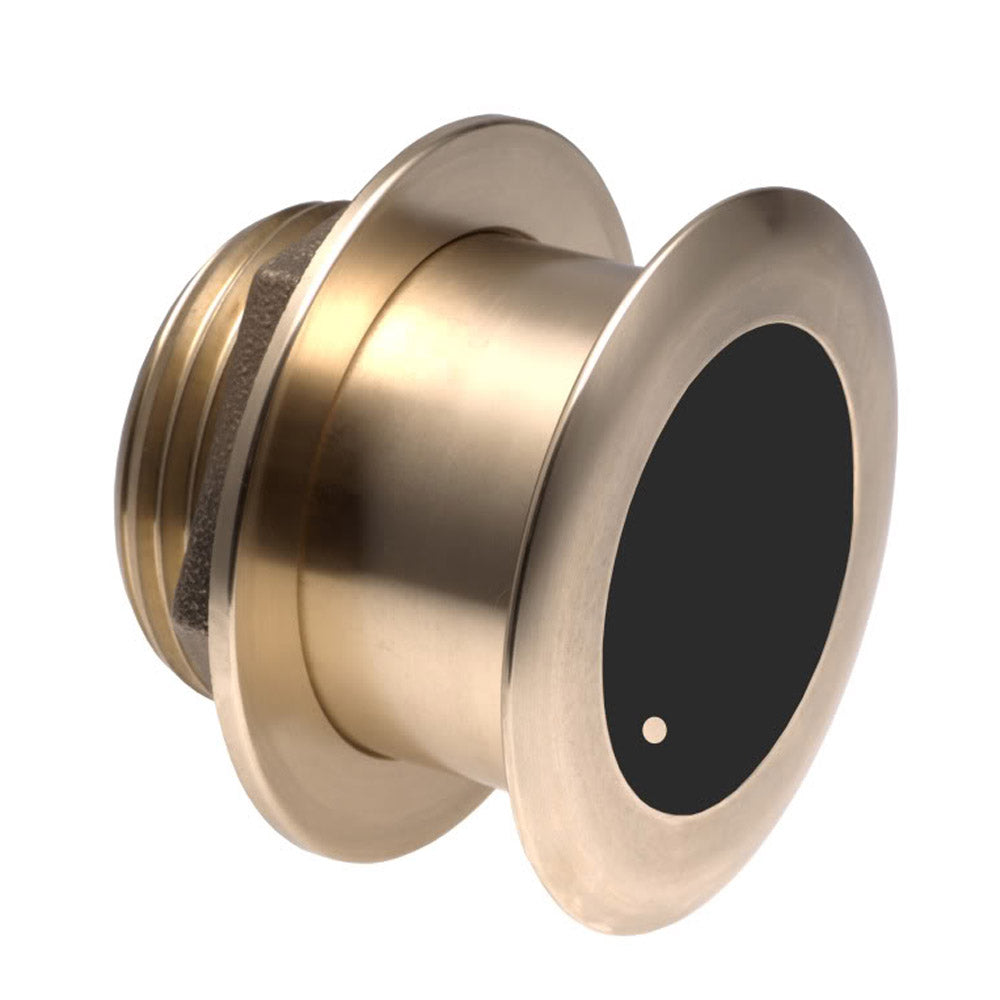

Airmar’s low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidth, excellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. Transmitting across 130 to 210 kHz, the B175H has up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.
Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.
Features
Fixed 12° tilted version for 8 to 15° hull deadrise angles
Depth and fast-response water-temperature sensing
1 kW of power with a maximum depth of 304 m (1000')
High frequency: 130 to 210 kHz
10° to 6° beamwidth
80 kHz of total bandwidth from one transducer
High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
Low-profile, thru-hull housing yields good display resolution at speed when installed properly
Recommended for stepped, planing, or displacement hull
Bronze housing for use in a fiberglass or wood hull
Patented Xducer ID® technology
Specifications
Power Rating: 1 kW
Max Deadrise Angle: 24°
Housing: Bronze
Functions: Depth, Temperature
Hull Material: Fiberglass or wood
Max Vessel LOA: Up to 11 m (36')
Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8")
Usable Shaft Length: 71 mm (2.80")
Mounting Style: Tilted Element Thru-Hull
Acoustic Window: Urethane
Common Use: Leisure/Yachting, Fishing
High Frequency: 130-210 kHz
High Frequency Beamwidth: 15°-9°
Max Deadrise: Up to 24°
Max Depth: 304 m (1000')
Retractable housing: No
Single or Dual Frequency: CHIRP-Ready Single-Band
Tilted Element: Yes
Weight: 2.7 kg (6 lbs.)
