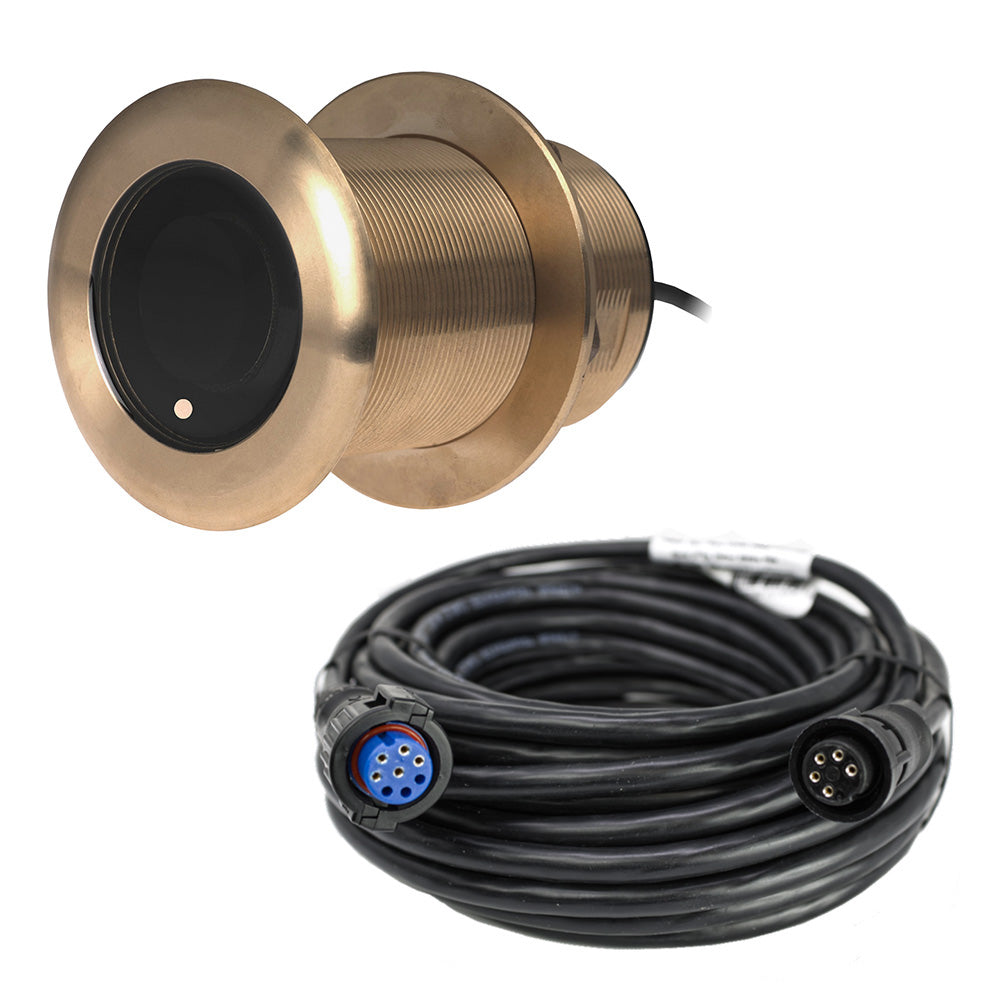

The B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at either a 12° angle within the housing. When the transducer is installed almost flush with the hull, the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more-accurate depth
Features:
The depth and fast-response water temperature sensing
600W of power
Dual-frequency element: 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200') and 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
Perfect for center-console or trailered boats
Low-profile bronze housing extends only 5 mm (3/16") outside the hull
No effect on your boat’s running performance
Bronze housing for fiberglass or wood hull
Fixed 12° tilted version for 8 to 15° hull deadrise angles
