Description

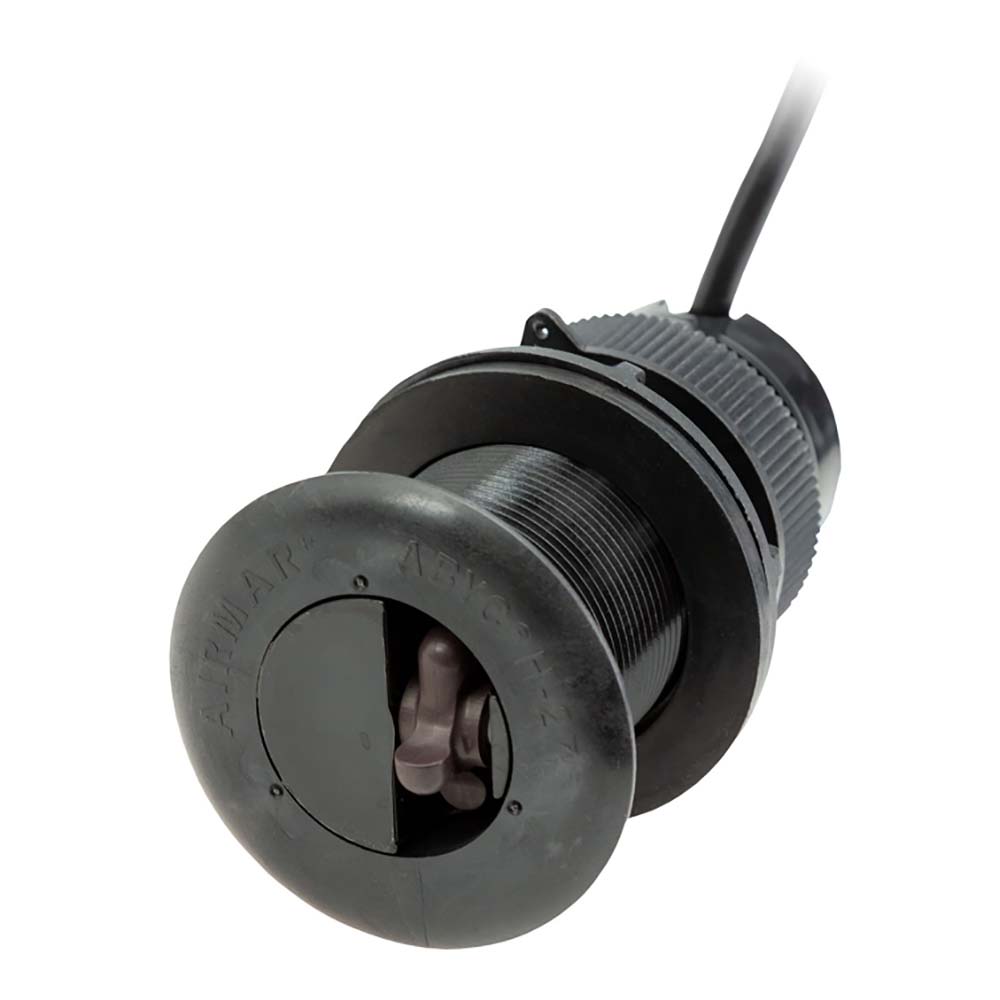

DST810 Plastic Smart Sensor 235kHz - NMEA 2000 - Bluetooth
Depth, Speed-Through-Water, Water Temperature, Boat Attitude
For a product to be considered a “breakthrough,” it has to vastly change conventional behavior and enhance abilities. The DST810 Smart Multisensor, featuring the new Gen2 paddlewheel together with Airmar's CAST™ App, is the convergence of advanced hull data, matched with a simple and reliable way to calibrate accurate speed via a wireless device. This changes how boaters receive and deliver information to get greater performance from their hull. It is a simple, consistent way to calibrate speed-through-water regardless of what display system is on board. The DST810 and Airmar CAST App deliver capabilities that until now, were only available through expensive PC-based software.
Besides water temperature, depth, and upgraded 5 Hz (5X per second) speed-through-water output, the DST810 features an integrated attitude sensor for heel and trim data. This information, combined with Airmar’s powerful and simple CAST App, makes heel-compensated speed calibration across multiple heel angles and speed ranges both fast and intuitive and is independent of the onboard instruments.
All speed calibrations and NMEA configurations are stored in the DST810 sensor—not in the displays.
Features
- 5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making
- Integrated attitude sensor for heel and trim benefits sailing and powerboats. Simple attitude calibration to correct for off-center mounting
- Hull Deadrise: Up to 22°
- Depth Frequency: 235 kHz
- Minimum Depth Range: 0.5 m (1.6')
- Maximum Depth Range: Up to 100 m (330')—NMEA 2000®
- Speed Range: Up to 45 knots
- Wireless Protocol: Bluetooth Low Energy (BLE)
- Wireless Range: Up to 30 feet depending on mount location
- Standard Cable Length: 6 m (20') DeviceNet—NMEA 2000®
- Temperature Sensor Accuracy: ±0.5°C (±1.8°F)
- Temperature Sensor Range: -10°C to 40°C (14°F to 104°F)
- Supply Voltage: 9 VDC to 16 VDC—per NMEA 2000
Wireless connectivity to Airmar's CAST App has user-friendly benefits:
- Calibrate the DST810 is a simple, intuitive way regardless of the instrument brand or model that is on board
- Conduct basic and advanced heel-compensated speed calibrations for improved speed-through-water outputs across the speed range
- Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software
- Enable and disable PGN’s and set offset and output rates
The Perfect Sensor for Every Use
SAILING
- 5 Hz speed output for visibly smoother speed data.
- Incredibly easy calibration via Airmar's CAST App. Wirelessly connect, calibrate speed, and configure data.
- DST810 stores configurations and delivers data to the NMEA 2000® network.
- Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor.
POWERBOATS
- 5 Hz speed, depth, pitch and roll, and water temperature from one installed instrument.
- Simple depth offsets and corrected speed-through-water via Airmar's CAST™ App.
- Popular depth sensor for shallow-water performance.
Specifications:
- Cable Length (Feet): 20ft
- Chirp: No
- Connection Gender: Male
- Data Interface: NMEA 2000
- Mounting Style: Thru-Hull
- Pins: 5
- Speed Included: Yes
- Temperature: Yes
- Box Dimensions: 4"H x 8"W x 10"L WT: 2.1 lbs
- UPC: 801769018677
