Description

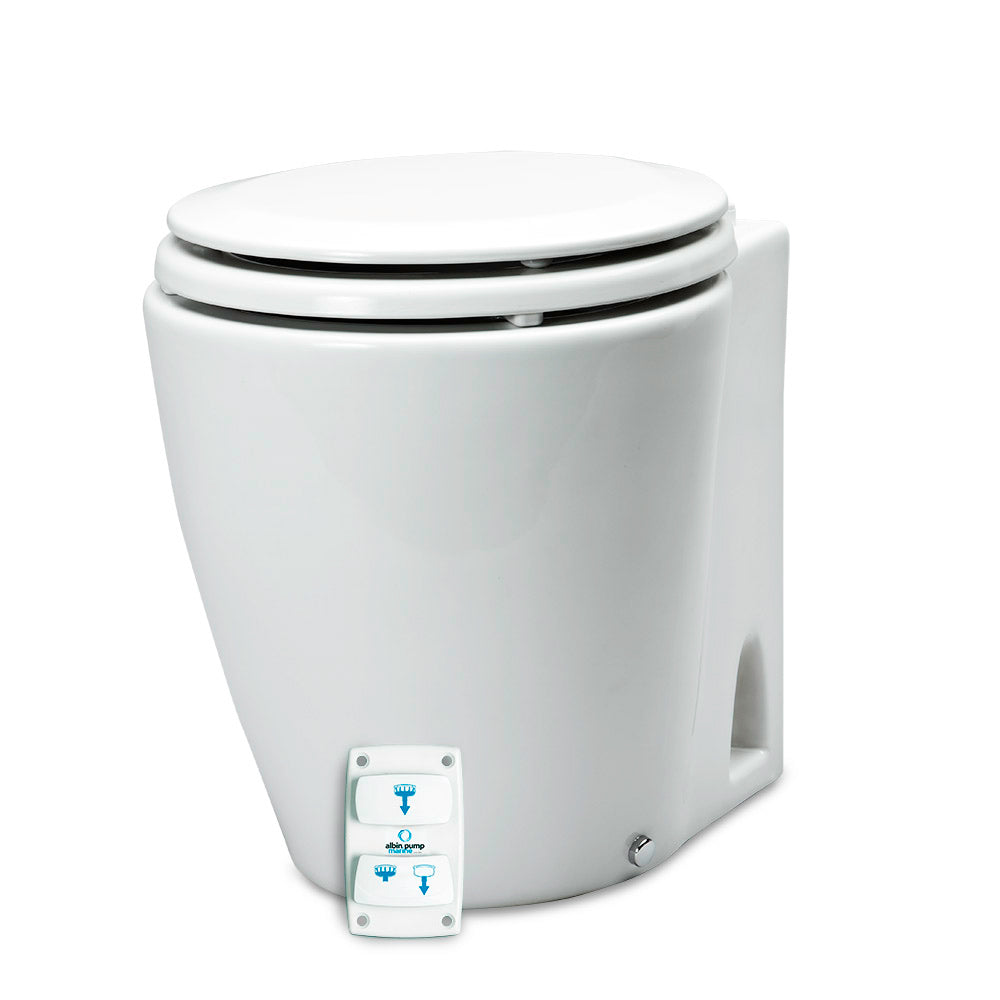

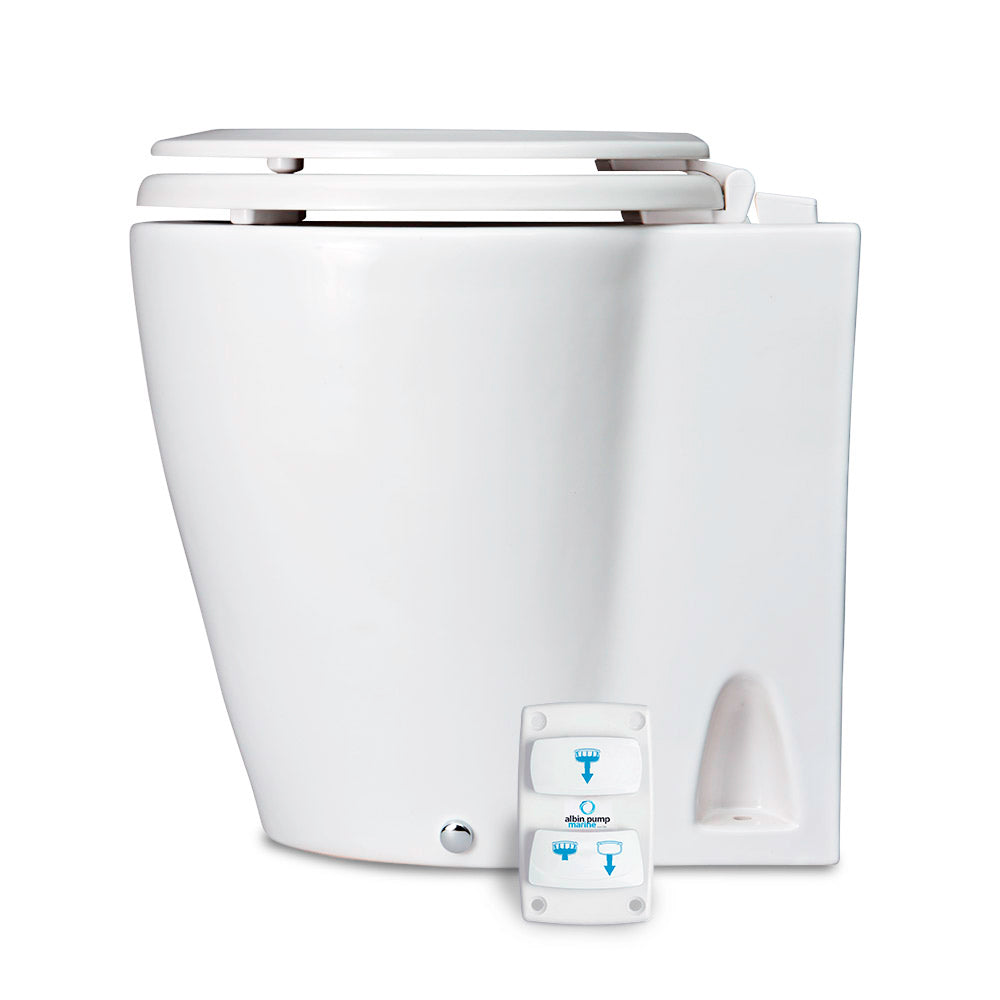

Design Marine Toilet Silent Electric - 12V
Design silent electric compact toilet with seperated flushing and waste disposal cycle. Including electronic 3 function control panel, before use, after use and short use plus a trimmer to regulate the flow rate.
Water is from existing pressurized water system onboard with 12V solenoid valve (PN 07-66-030) or 12V flush pump (PN 07-66-032)- not included!
Port conections inlet 19mm (3/4″), outlet 25mm or 38mm (1″ or 1,5″). Silent operation and low water consumption.
Easy to clean white ceramic design bowl and white wooden seat. Robust, stable and compact with a preferred appearance like a home toilet.
Specifications:
Weight: 15.2 kg/39 lbs
Dimensions: 405/15.9L x 410/16.14H x 340/13.4W mm/in
Type: Design Dual Operation Electric
*Certification: CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance
Arco A 275 alternator is almost a perfect fit on a yanmar 4jh3e. Installed with balmar pulley kit . Easy install and fast charging .n more belt dust covering everything.
ARCO Zeus A275L Alternator
Conan Disney
Providing a lot of power.
3@405 watt rec panels on top of Bimini with 2@ Hyundai bifacials on top of Atlantic tower. 1x2 “ anodised aluminum used for supports . Each panel has their own mppt charge controller due to the amount of Shade on my sailboat.panels are providing a lot of power.
REC Alpha Pure – 405w Solar panel
Conan Disney
ARCO Zeus regulator is performing great.
Instalation instructions where easy to follow.
The Zeus can be adjusted with the app to adjust the charging parameters.
Enclosed picture of gx device show a lot of solar going into batteries so the Zeus is providing enough amps to max out 300 amps going into batteries. If I was using more ac devices the alternator will increase output . Temperature sensor included with Zeus allows it to reduce output until alternator cools down.
ARCO Zeus Alternator Regulator- Standard
Conan Disney
Cools boat down quickly
Mabru air conditioner is great improvement from my old model. Cools boat down quickly. Easy install. I run this 17k unit of my 12/100/3000 ,victron invertor. Sometimes the solar panels will provide enough power for air conditioner ,2 fridges and all other loads.
MARINE AIR CONDITIONER SC17VI 17000 BTU 115/230v Self-Contained BY MABRU
Conan Disney
Modular Rainman watermaker installed in separate locations
Modular Rainman watermaker installed in separate locations. The motor and pump fit well under nav table seat ,membranes fit below forward bed. I made 80 gallons of water whilst motoring into port royal sound s.c. My victron 12/120/3000 invertor had no trouble running it .
The water produced was 200ppm. About the same as my city water filtered through Brita pitcher.
