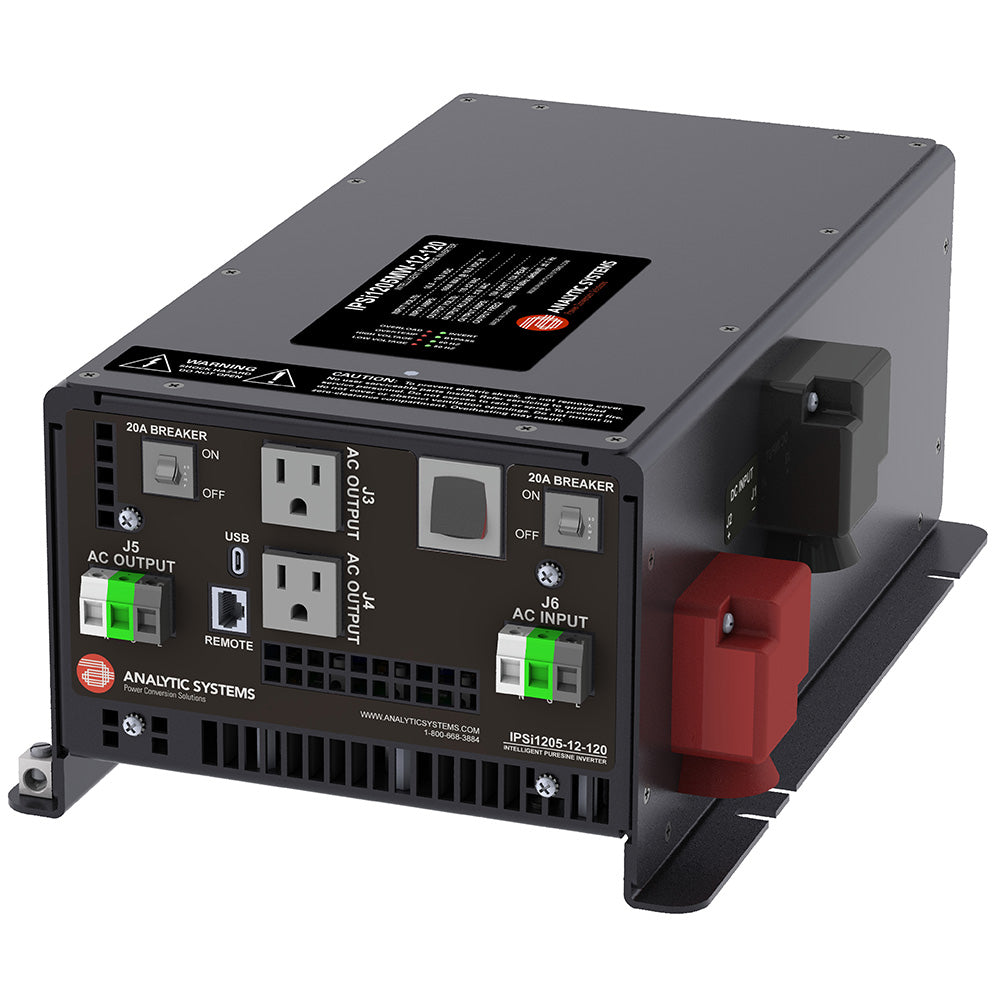

Analytic Systems AC Pure Sinewave Inverter 2400W 20-45V In 120VAC 60Hz Out AC Bypass

AC Pure Sinewave Inverter 2400W 20-45V In 120VAC 60Hz Out AC Bypass

Analytic Systems manufactures DC to AC Pure Sinewave Inverters with inputs from 12 to 400 volts DC and outputs from 100 to 250 volts AC with frequencies from 50 to 400 Hz at power levels from 300 to 3600 watts.

Analytic Systems has been producing Pure Sinewave Inverters since 1994. Originally designed for running navigation computers on commercial and fishing vessels, the IPSi line has evolved into a range of digitally controlled models with continuous power outputs from 300 to 3600 watts.

All our inverters are Digital Signal Processor controlled for precise frequencies of either 50 or 60 Hz, the powerful high frequency MosFet switching network produces a low voltage AC waveform that is stepped up to either 110 or 220 VAC by a Toroidal transformer for the cleanest possible sine wave output with very low emi.

This technique produces a very clean AC waveform and reduces EMI to lower levels than achievable with other methods. Military customers worldwide rely on our IPSi Series inverters for mission-critical applications where low acoustic and electromagnetic signatures are essential.

All IPSi Series inverters are available in IP66 rated water-resistant or IP67 certified billet machined chassis for operation in rugged environments where exposure to spray or even total immersion is possible.

Digitally Controlled Intelligent Pure Sine Wave Inverter

Using the free to download ‘Power Wizard’ software, the user can select output frequency, output voltage (within +/- 10 percent of the standard voltage), output frequency (50 or 60 Hz) and low voltage shutdown parameters (to match the battery voltage) from any laptop through the standard micro-usb interface. Safety features include over-temperature warning and shutdown, current limiting and short circuit protection. All models offer optional AC Input for Off-Line UPS functionality as well as optional Dry Contact output fail indication, Remote On/Off capability and RS232 communications for remote monitoring.
