Description

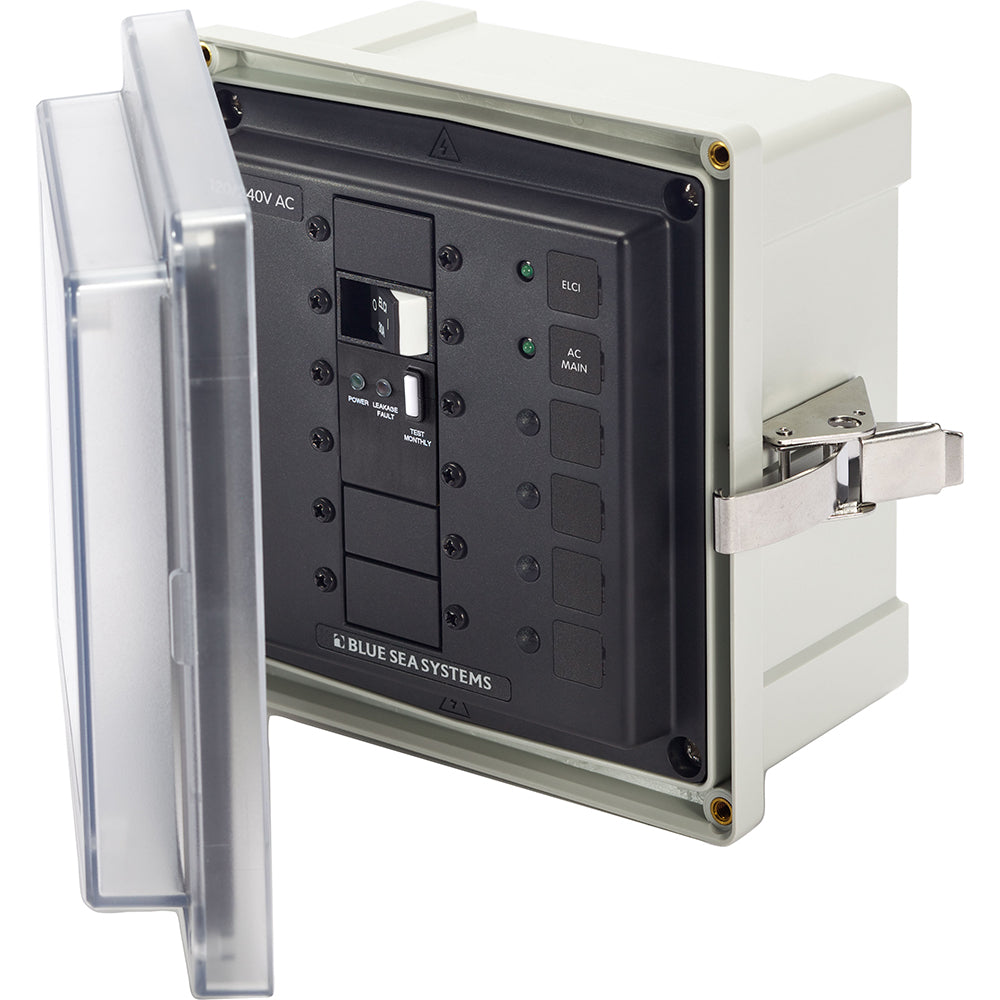

3120 - SMS Panel Enclosure with ELCI Main (50A) and 2 Blanks - 240V
The 3120 panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.
Features:
Blank apertures for custom breaker loading
Glass filled polycarbonate base
Clear cover allows easy view of circuit breaker status
Overlapping cover for strength and increased gasket protection
Oversized, formed in place seamless PUR gasket
Easily removable stainless steel hinge pin for unobstructed installation
Stainless steel latch secures cover without penetrating the enclosure
Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
Includes waterproof glands
LEDs for backlighting and ON indication
Technical Specifications:
Circuit Breaker Type - 1 x ELCI (50A) Main 240V and 2 x Blank
Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
LEDs Installed - 2 x Green ON (240V AC)
In the Box:
3120 Enclosure
Glands x 5
Labels
Mounting hardware
Instruction manual
*Sold as an Individual
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
