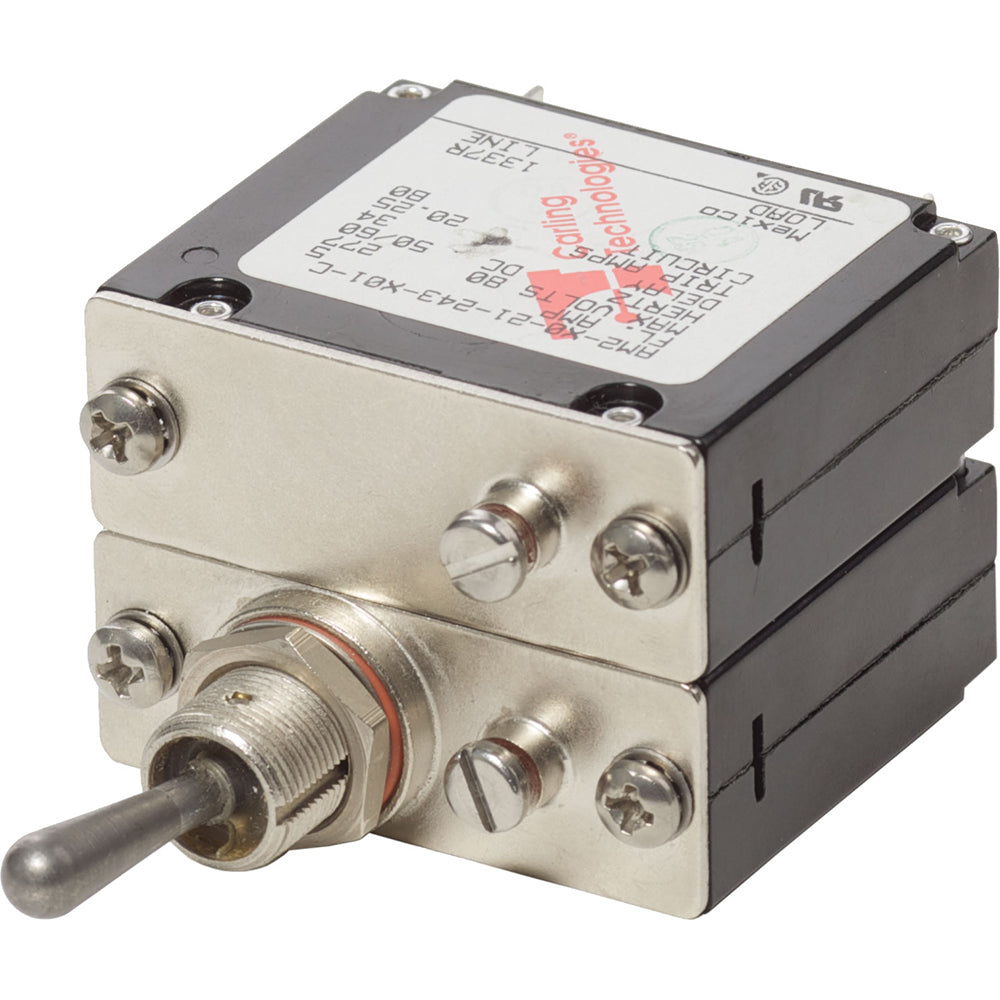

7310 COTS Military Grade A-Series 5 Amp
May be suitable for use when military specifications are required under CFR 46.
Specifications:
Amperage: 5A
Actuator Style: Metal Toggle
Poles: 2
Max Voltage: 277V AC, 65V DC
Circuit Breaker Type: Magnetic Hydraulic - Trip Free
Interrupt Capacity: 1500 A AC, 7500A DC
Min Operating Temp: -40°C
Max Operating Temp: 85°C
Mounting Boss: 1/2-32 Hex Nut SS
Mounting Nut Torque: 30"-lb
Screw Terminal Torque: 14"-lb
Switching Cycles: 6000 Electrical/4000 Mechanical
Terminal Screw: #10-32 SS
Weight: 0.13lb (0.06 kg)
UL 1077
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
