Description

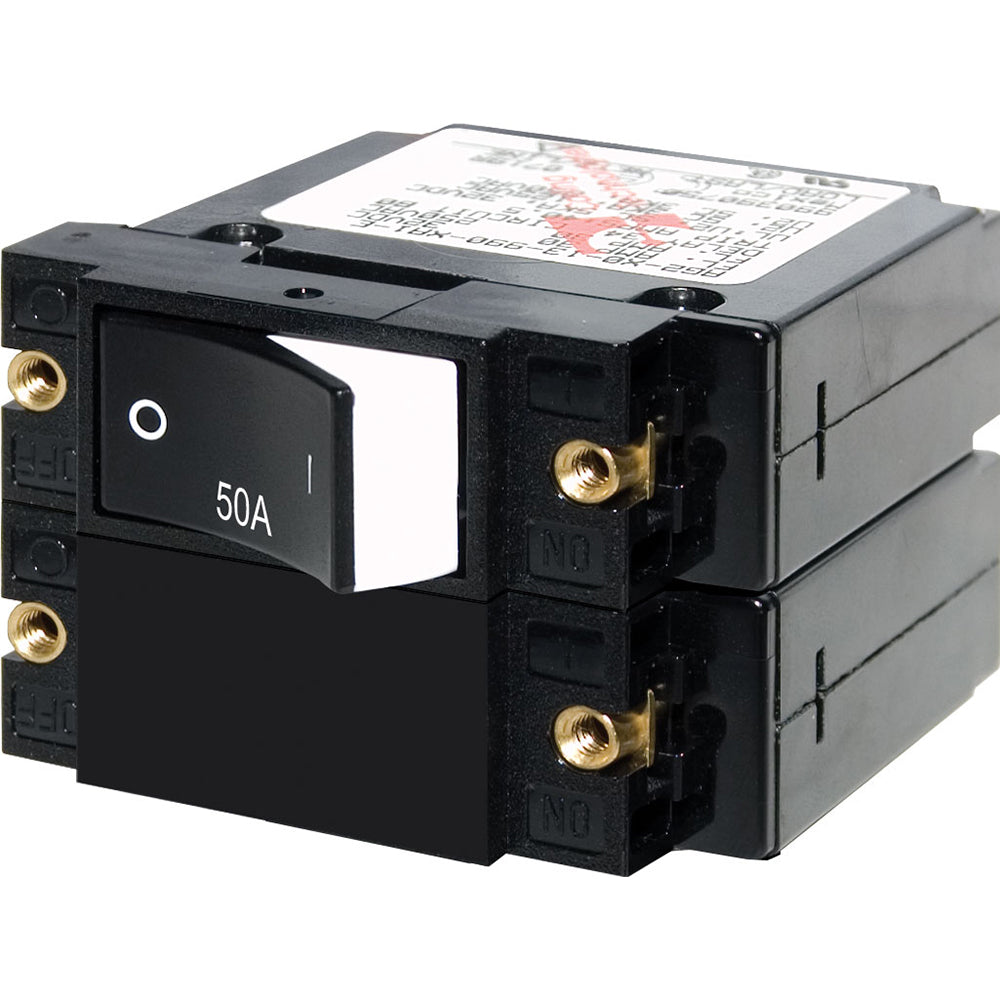

A-Series Raised Rocker Circuit Breaker - Double Pole - 50A
Features:
Color actuator indicates "OFF" position
"Trip Free" design cannot be held "ON" during fault current condition
International ON/OFF symbols support vertical or horizontal mounting
Specifications:
Amperage: 50A AC / 50A DC
Actuator Style: Raised Rocker
Poles: 2
Maximum Voltage: 120V AC / 240V AC / 32V DC
Circuit Breaker Type: Magnetic Hydraulic - trip free
Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC
Minimum Operating Temperature: -40° C
Maximum Operating Temperature: 85° C
Mounting Screw: #6-32 Stainless Steel
Mounting Screw Torque: 6 in-lb (0.68 Nm)
Screw Terminal Torque: 14 in-lb (1.58 Nm)
Switching Cycles: 10000
Terminal Screw: #10-32 Stainless Steel
Weight: 0.38lb (0.17 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
