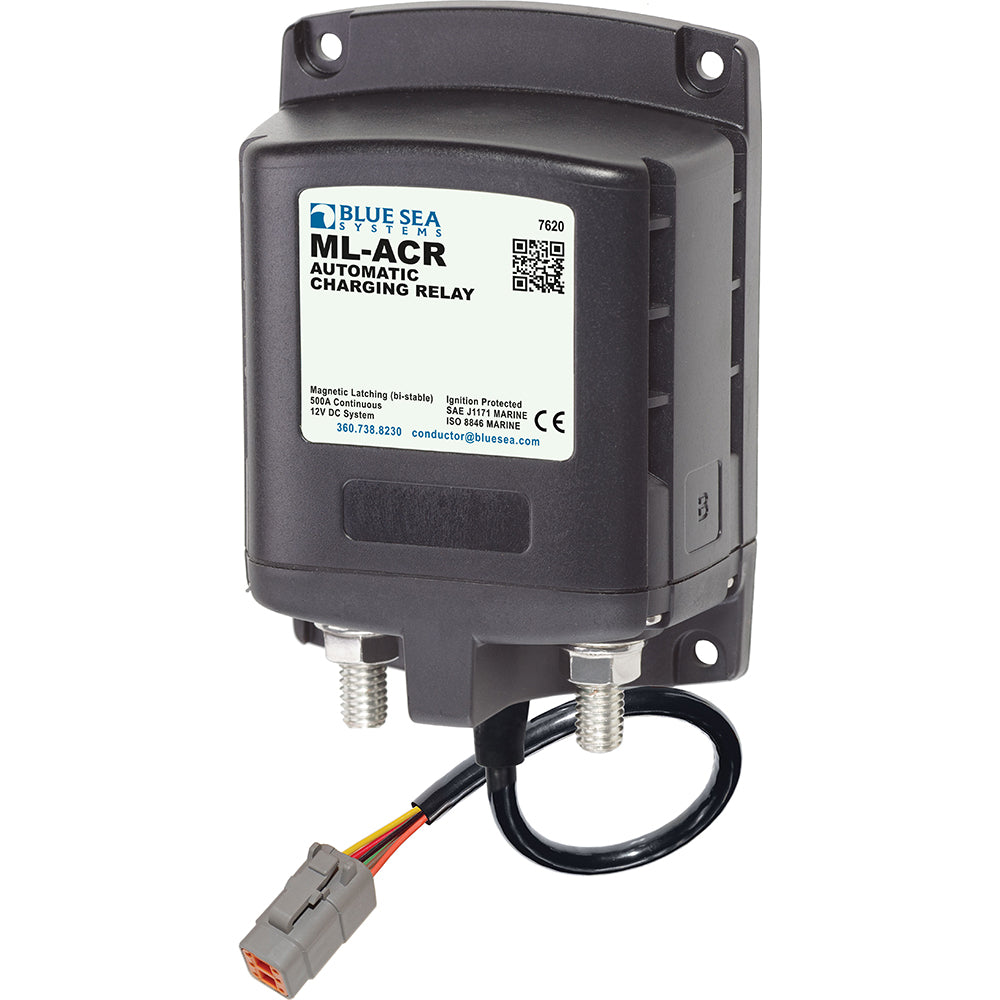

7620100 ML ACR Charging Relay 12V 500A with Deutsch Connector
500 Amp magnetic latching (bi-stable) relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine.
Features:
Automatically manages the charging of two large battery banks
Allows paralleling of battery banks for emergency starting
500 Ampere continuous rating to support high-output alternators
Magnetic Latch (ML)—ACR draws very low current (<40mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state
Dual sensing—senses charge on both battery banks
Start Isolation (SI)—can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
Engine Isolation (EI)—can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
Senses charging on two battery banks
LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, or in Start or Engine isolation
3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
Silver alloy contacts provide high reliability for switching live loads
Label recesses for circuit identification
Specifications:
Control Circuit Connection: Deutsch DTM
Nominal Voltage: 12VDC
Manual Control: No
Engine Isolation: Yes
Mounting: #10
Start Assist: Yes
Start Isolation: Yes
Amperage Operating Current When Changing State: <7.0A
Terminal Stud Torque: 140 in-lb (15.82 Nm)
Continuous Rating: 500A
Intermittent Rating: 700A (5 min)
Cranking Rating 30 Seconds: 1450A DC
Cable Size to Meet Ratings: 2x (4/0)
Live Current Switching: 300A@12VDC
Master Control Switch Capability: No
Switching Cycles: 100,000
Terminal Ring Diameter Clearance: 1.18" (29.97 mm)
Terminal Stud Length: 1.50" (38.1 mm)
Terminal Stud Size: 3/8" - 16 (M10)
