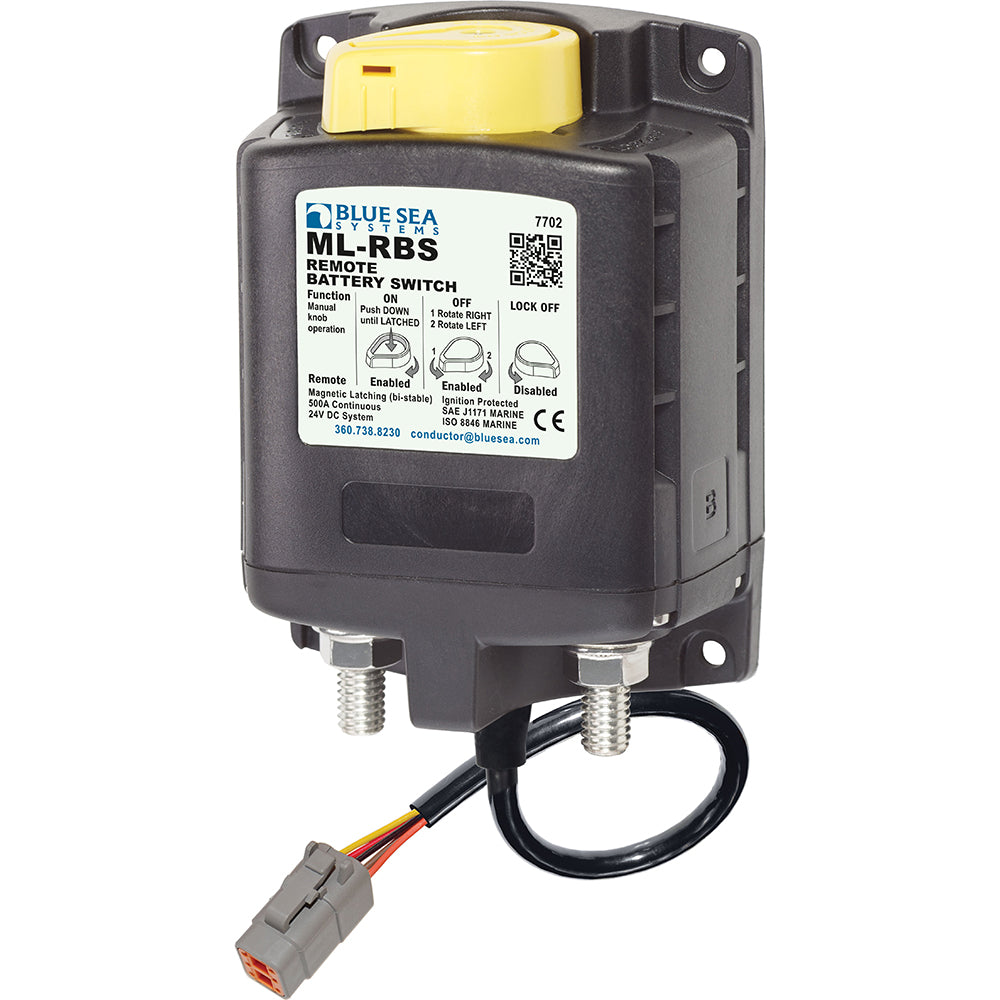

Silver alloy contacts provide high reliability for switching live loads
Specifications:
Control Circuit Connection: Deutsch DTM
Nominal Voltage: 24VDC
Coil Function: Bi-Stable
Mounting: #10
Amperage Operating Current Continous: 0mA
Terminal Stud Torque: 140 in-lb (15.82 Nm)
Control Circuit Voltage: 18-32VDC
Continuous Rating: 500A
Intermittent Rating: 700A (5 min)
Cranking Rating 30 Seconds: 1450A DC
Cable Size to Meet Ratings: 2x (4/0)
Live Current Switching: 300A@12VDC
Master Control Switch Capability: No
Mechanical Endurance: 100,000 Cycles
Terminal Ring Diameter Clearance: 1.18" (29.97 mm)
Terminal Stud Length: 0.875" (22.23 mm)
Terminal Stud Size: 3/8" - 16 (M10)
Weight: 1.75lb (0.79 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
