Description

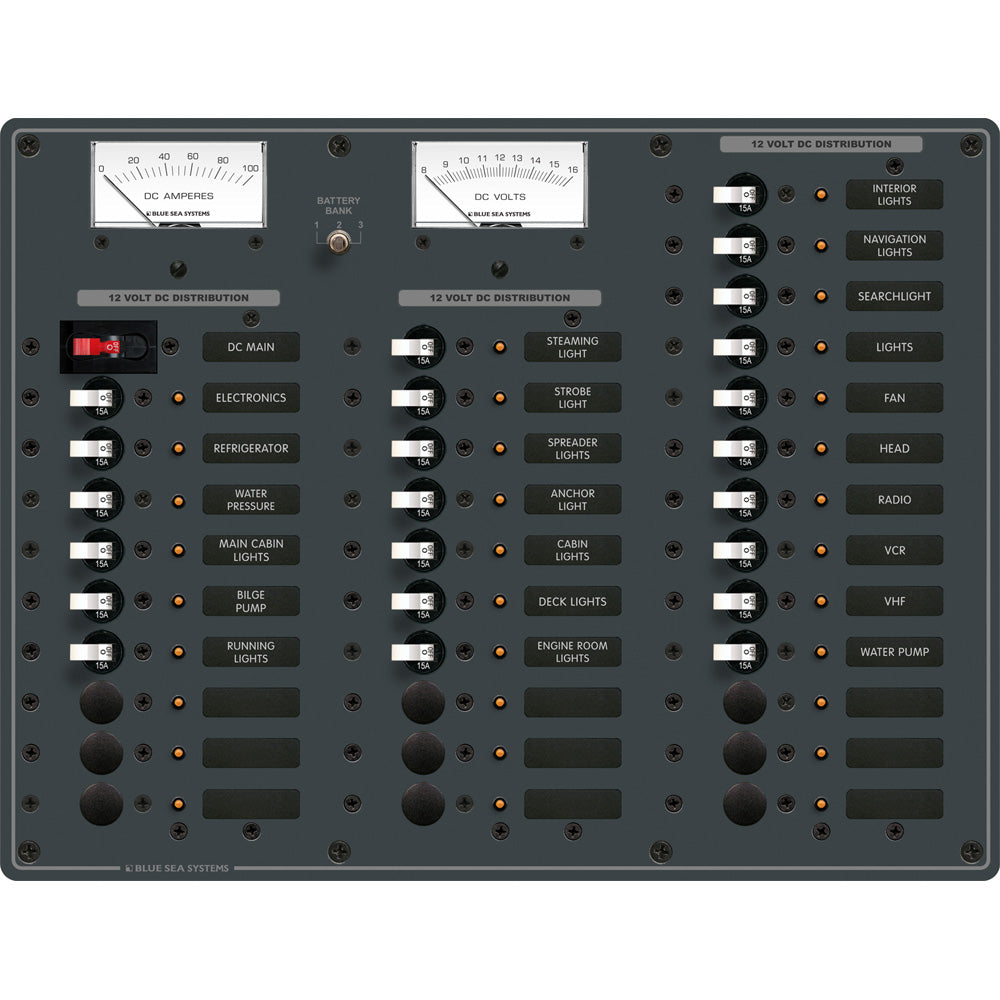

Main + 35 Positions
(26) 15A Single Pole Circuit Breakers
(1) 100A C-Series Main Circuit Breaker
(1) 8248 DC Digital Multimeter w/ Alarm
White Switches
Features:
All positive, negative and grounding buses installed, fully pre-wired
Panels with meters include toggle switch for mounting up to 3 battery banks
All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
All circuit label positions are backlit on standard panels - No kit required
"ON" indicating LEDs installed in all circuit positions
MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
Two-part polyurethane slate gray finish
Heavy 1/8" aluminum 5052 alloy
Industry standard height and width
Countersunk mounting holes throughout
Detailed installation instructions and cutout template included
Includes set of 30 common Large Format Panel Labels
Over 500 individual labels available
