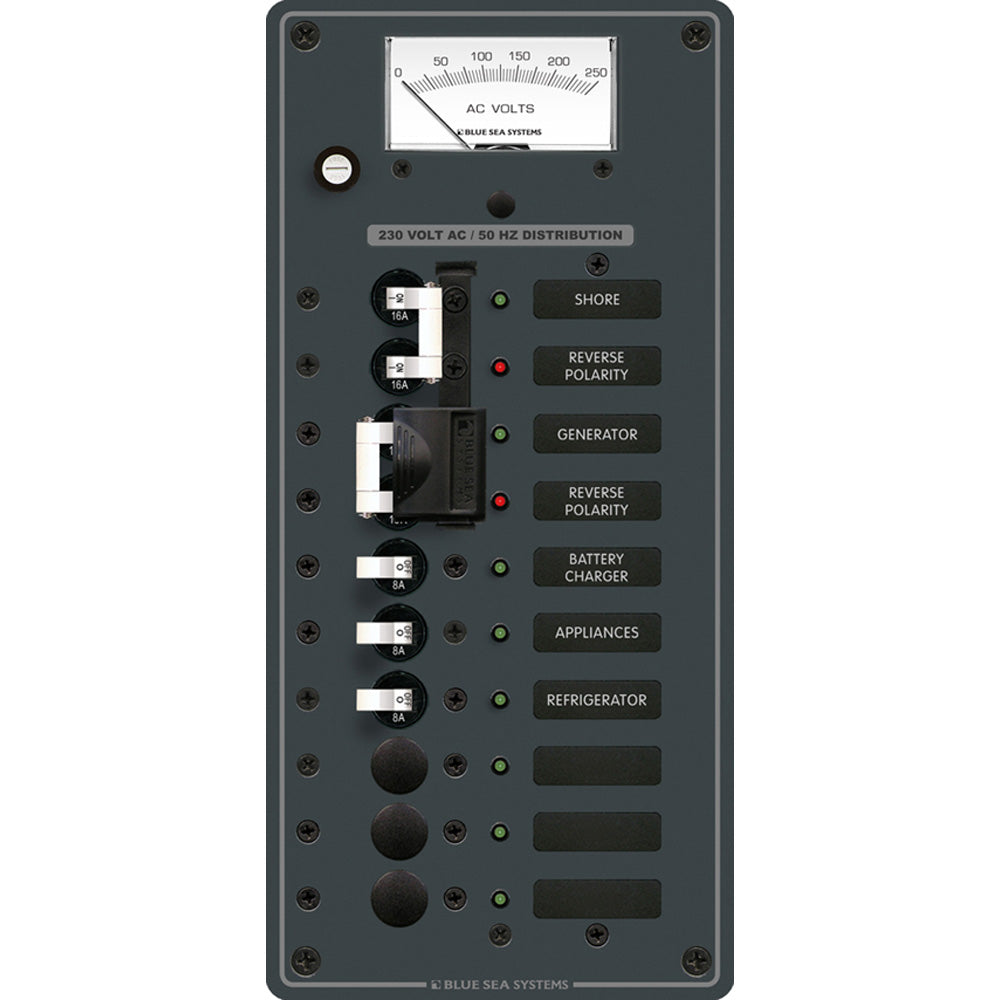

Blue Sea 8589 AC Toggle Source Selector (230V) - 2 Sources + 6 Positions

AC Toggle Source Selector (European)


p045.19PN: 8589
White Switches

(2) 16A Double Pole Circuit Breakers Installed

(3) 8A Single Pole Circuit Breakers Installed

(1) 9354 AC Analog Voltmeter

Features:

• Double pole AC main circuit breakers with installed lockout slide

• Prevents connecting both AC sources simultaneously

• Maximum panel amperage - 50 Amperes

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  Specifications:

  • Voltage: 230v
  • AC/DC: AC
  • Max Breaker Quantity: 6
  • Box Dimensions: 4"H x 9"W x 12"L WT: 3.3 lbs
  • UPC: 632085085896
