Description

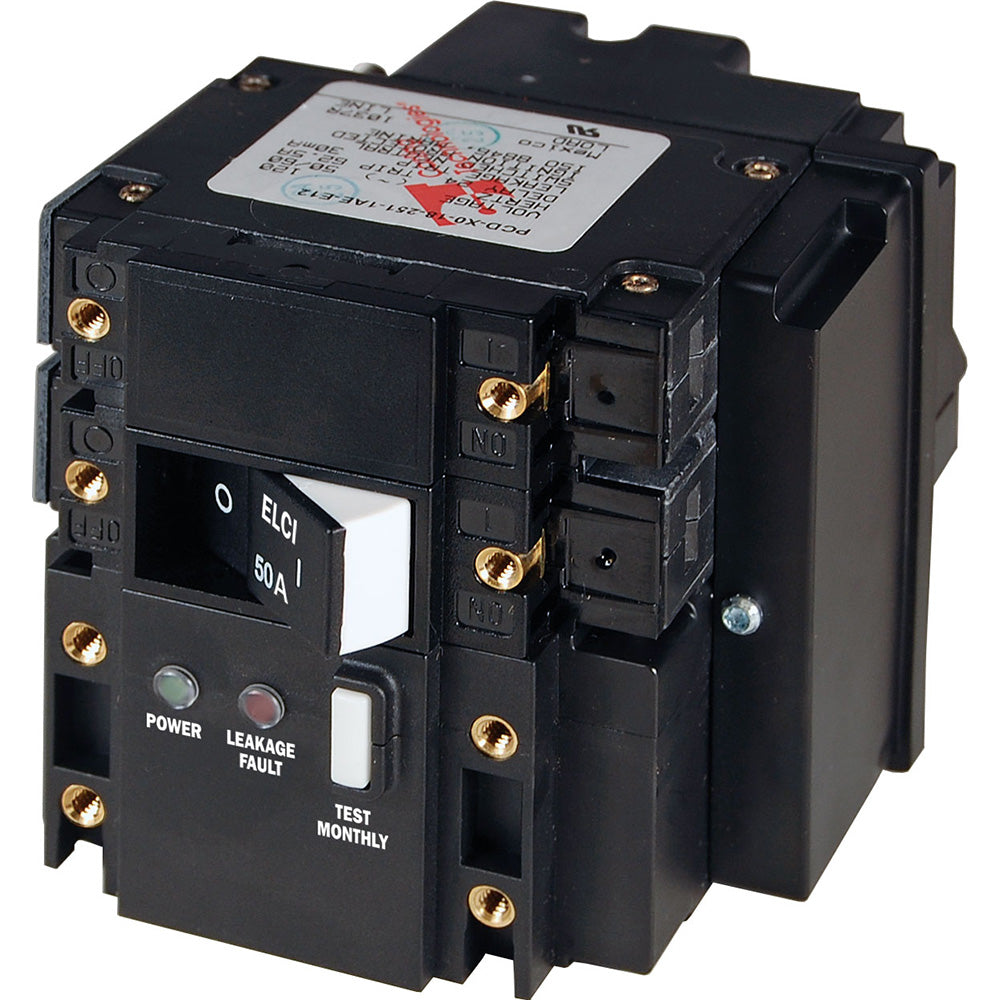

C-Series ELCI Circuit Breaker - Double Pole 240V AC 50A
Features:
Trips on short circuits, overloads, or leakage to ground
Front panel mount—installed in a power distribution panel
Specifications:
Amperage: 50A
Actuator Style: Flat Rocker
Poles: 2
Ignition Protected: Yes
Maximum Voltage: 120V AC per pole & 240V AC per pole
Circuit Breaker Type: Magnetic Hydraulic (trip free)
Interrupt Capacity: 5000A
Minimum Operating Temperature: -35° C
Maximum Operating Temperature: 66° C
Leakage Trip Amps: 30mA
Mounting Screw: #6-32 Stainless Steel
Mounting Screw Torque: 6 in-lb (0.68 Nm)
Switching Cycles: 10000
Weight: 1.20 lb. (0.54 kg)
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
