Description

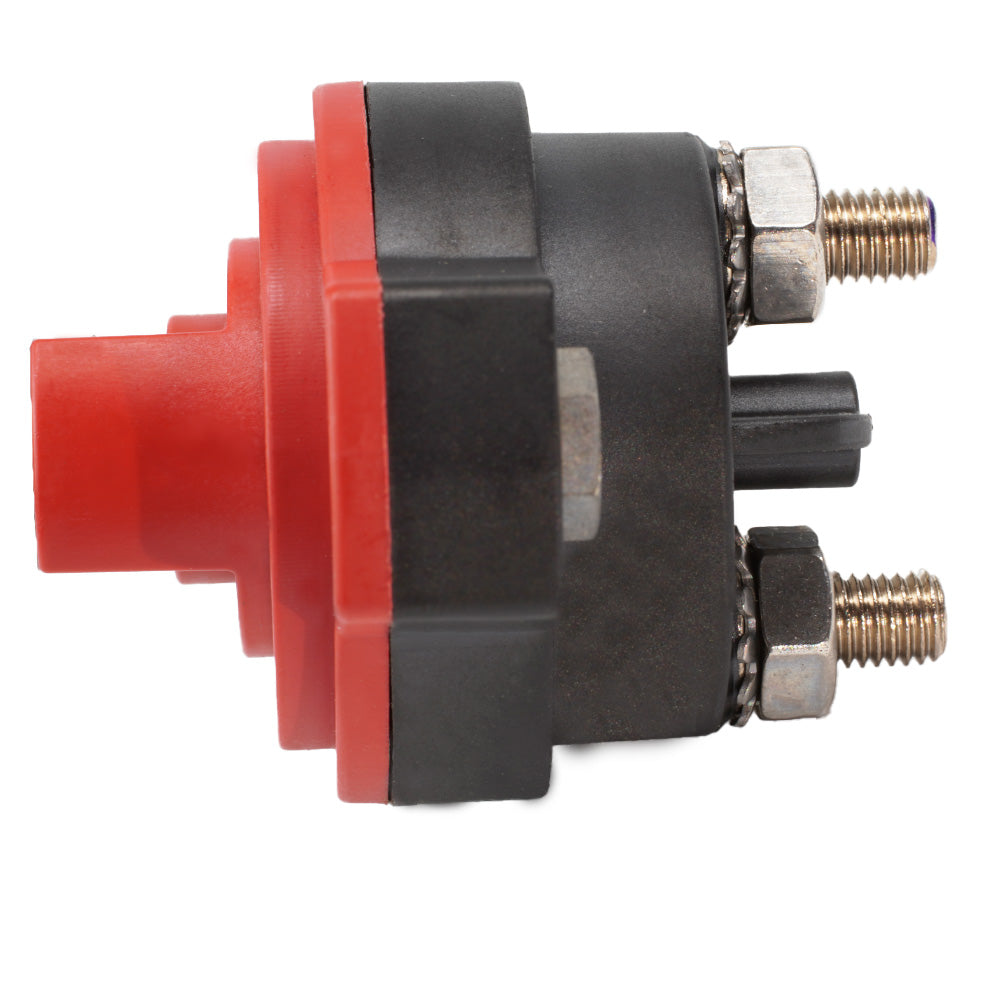

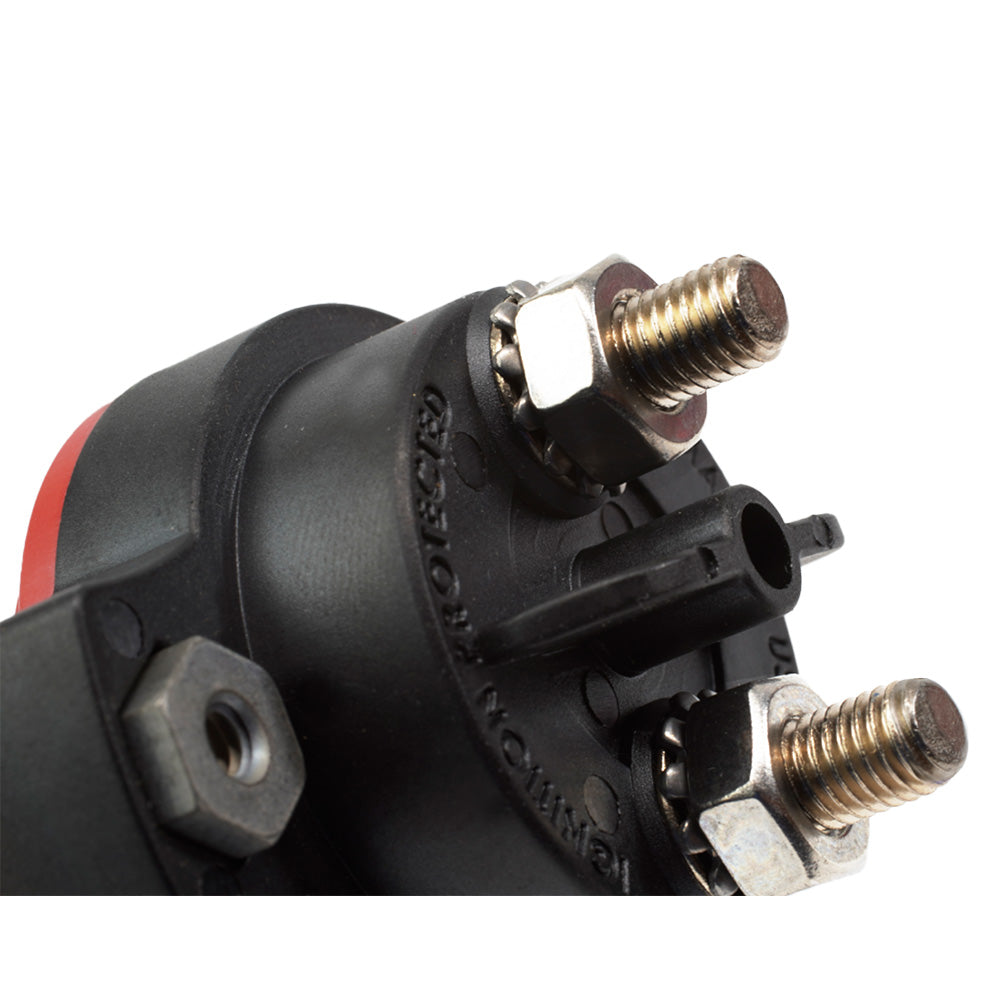

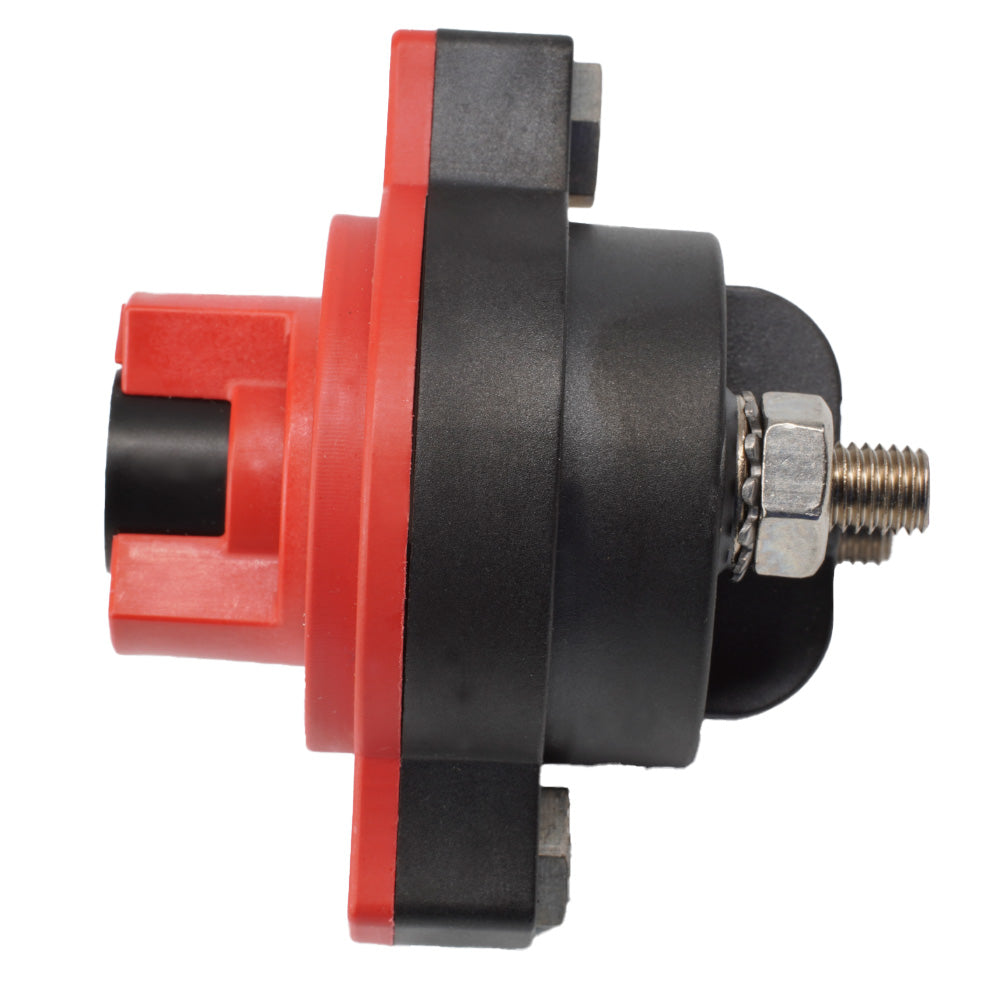

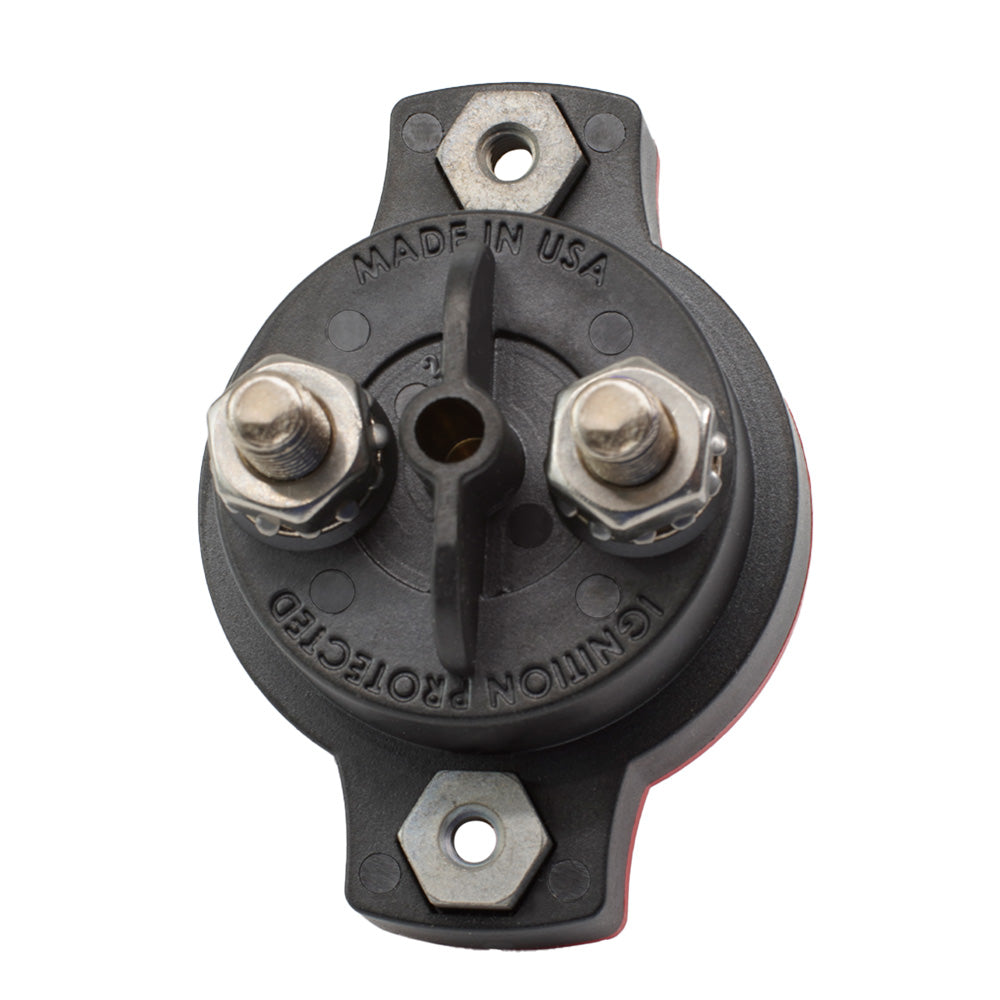

40A Panel Mount Mini Circuit Breaker
This 40A Panel Mount Mini Circuit Breaker is a 2-in-1 circuit breaker/disconnect switch that incorporates traditional battery disconnect switching (non-engine) and circuit protection. Trolling motor circuit switching applications are what this switch is best used for.
Applications:
Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction
Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution
Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location
Features:
IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
42 Vdc rating - easily supports 12, 24, and 36V DC applications. Ideal for trolling motor switching applications
High electrical and manual switching endurance delivers 2,000 cycles at full current
High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power
4-year warranty - Egis stands behind its product's ability to meet the user's needs
Specifications:
Continuous Current Amps: 40
Max Voltage: 42
CE Marked: Yes
Interrupt Current @14 VDC (Amps): 3,000
Cycle Switching Endurance: 4,000
Ingress Protection Rating: IP66
Focal Features

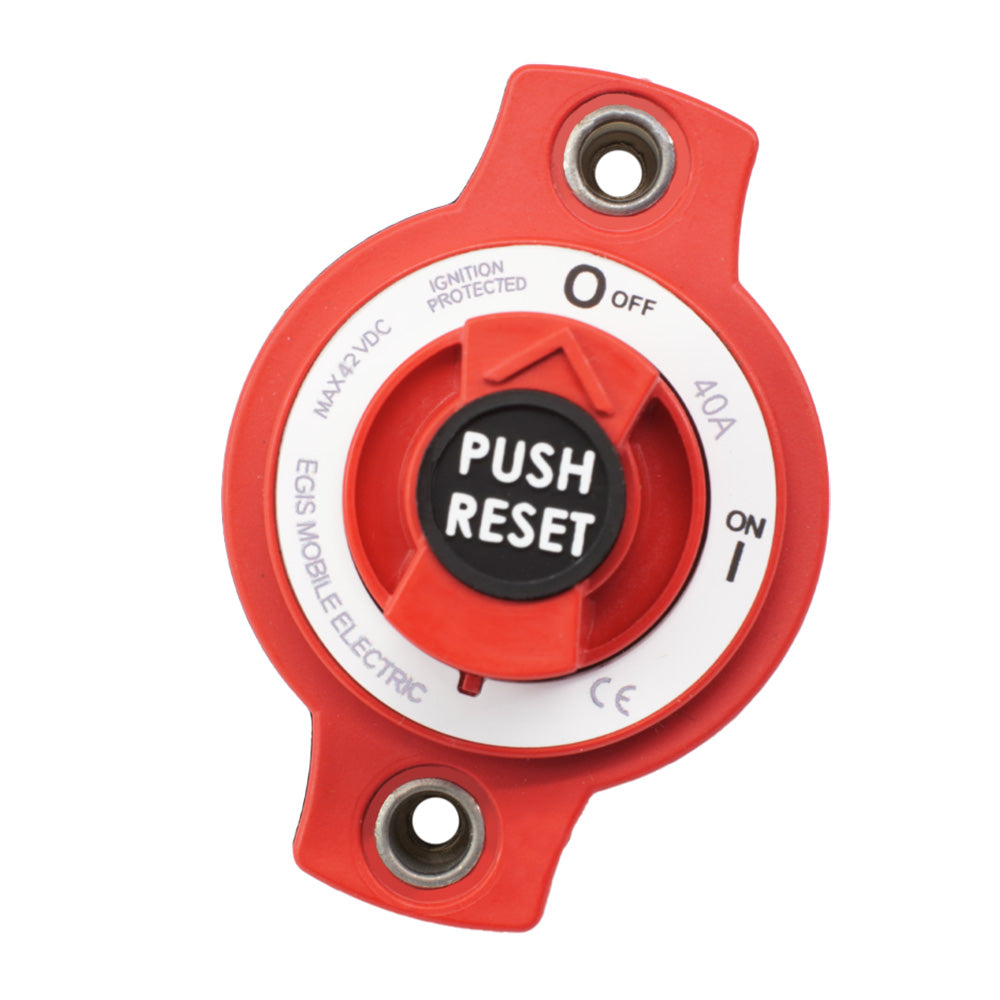

Easy ON/OFF Rotary Switch
Easy to operate and visually recognize switch position.
Stainless Steel Self- Locking Hardware
Corrosion and vibration resistance for harsh environment applications.
Weatherproof Construction
Sealed against dust and moisture penetration. High temp rated for all installation locations.
Compact Size
Fit more circuit switching/protection on a smaller panel!
Proudly Made in the USA
Made in the USA of high-quality components.
Ignition Protected
Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
