Description

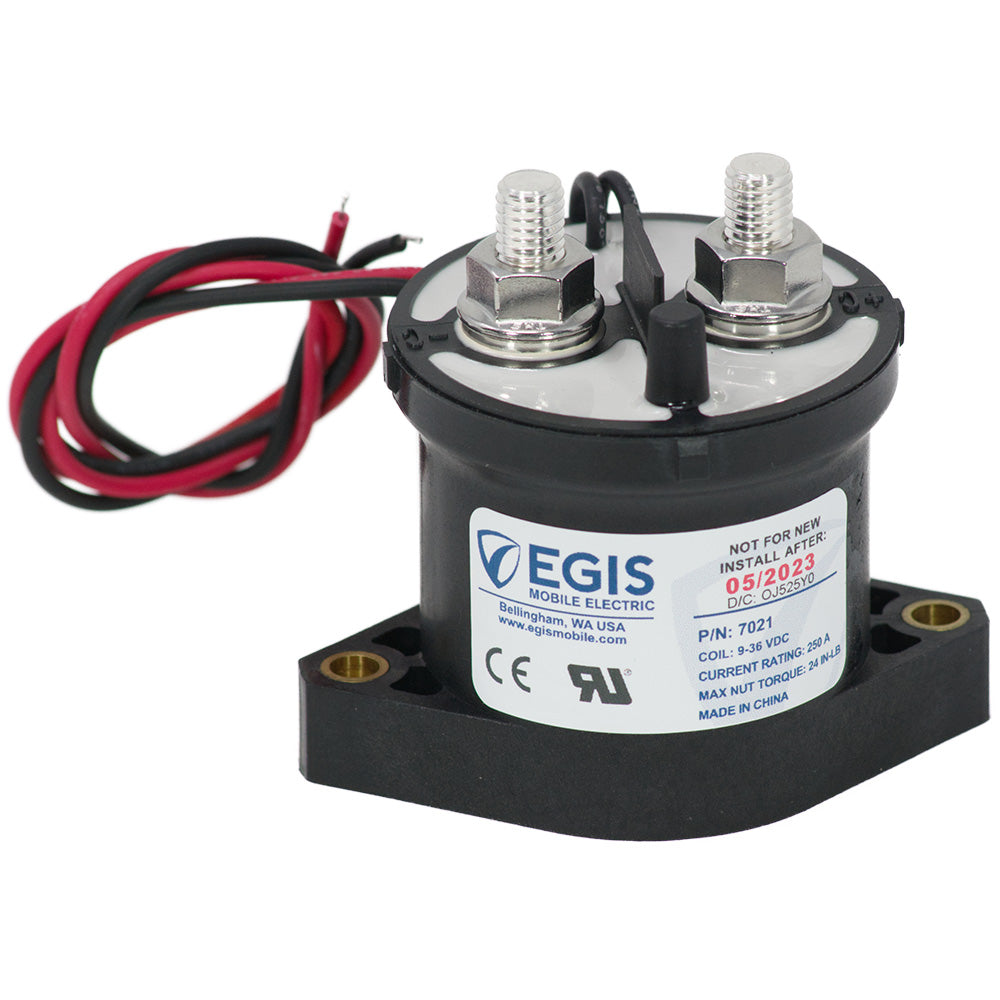

Contactor 250A, 12/24V
This 250A Egis contactor is perfect for reducing installation costs and weight by eliminating large cable runs to manual switches through robust remote switching of high-ampere engines and auxiliary loads.
Applications:
Ensure flawless operation for the life of the installation with a hermetically sealed contactor sealed against dust & moisture Intrusion.
High Contact Voltage Rating easily supports 12 or 24 Vdc control voltage applications while also supporting higher switching voltage applications up to 48 V and well beyond.
Features:
Ignition is protected and safe for installation in closed compartments with potential explosive gases
High Electrical Switching Endurance delivers 6,000 cycles at 250A or 450V and 100,000 cycles at 250A/14V
High Interrupt Current Capability - safely able to open in a locked starter situation (up to 1,500 A @ 14 Vdc)
Bullet-proof Construction - sealed device, high-temperature materials for engine compartment applications, and stainless self-locking hardware.
4 Year Industry Leading Warranty
Specifications:
Continuous Current (Amps): 250/500
Operation Control Voltage: 9-36 VDC
Ingress Protection: IP67/IP69K
Ignition Protection: ISO-8846 / UL 1500
Electrical Endurance Rating (Cycles): 1,000,000
Minimum Operate Temp. (Deg C): -40 C
Max Operate Temp. (Deg C): 85
Focal Features:
Sealed Enclosure
Hermetically sealed against dust and moisture penetration. The high temperature rating for all installation locations.
18-8 Stainless Steel Self-Locking Hardware
Resists corrosion and ensures long-term connection reliability with premium hardware.
High Interrupt Capability
Safely able to open in a locked starter situation up to 1,500 A @14 Vdc.
Easy Mounting
Reinforced mounting holes provide secure installation and easy attachment for the installer.
