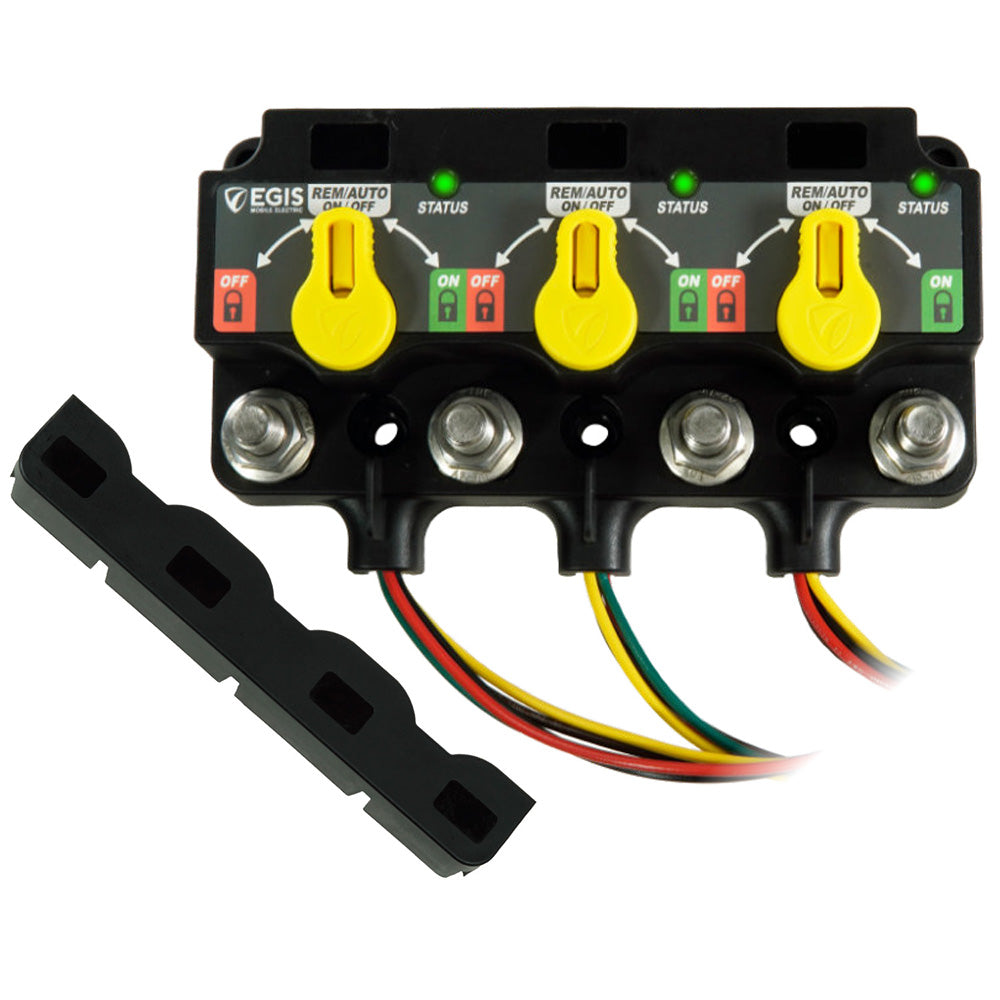

Egis XD Flex L Triple (Relay/ACR/Relay) w/Knobs - DTM

XD Flex L Triple (Relay/ACR/Relay) with Knobs - DTM

Designed for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems Where Required Charge / Discharge Voltage Settings Require Higher Available Settings

500 Amp Continuous Capability Per Relay / Extremely Compact Footprint

Available with or without Intuitive Front-Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for Servicing

Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage Disconnect

Remote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or to Allow Automatic Operation Based on Voltage Sensing

Local and Remote LED Indicators Per Relay

Mechanical-Only Battery Switch Option for One or Multiple Relay Positions

Features:

• Ultra-Low Power Draw: Lowest off-state current draw in the industry (1.3mA) combined.
• Simple & Robust Installation: Sealed Deutsch/Amphenol DTM/ATM or DT/AT connectors available. Flying wire harnesses also available.
• Flexible Application Options: Install as a Remote Battery Disconnect Switch, Voltage Sensing Relay, or Low Voltage Disconnect. On/Off trigger via external signal and/or alternator voltage sense.
• Diagnostic Feedback:  Via optional external LEDs control lines and on-board LEDs for each relay
• Bulletproof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle. Integrated thermal overload protection.
• Optional Manual Override provides power loss backup operation and the ability to lock OFF switched loads in order to service downstream circuits.
• Meets Stringent OEM Standards for electrical transient self-protection
• 4 Year Industry-Leading Warranty

Specifications:

• Type: Electric
• Box Dimensions: 3"H x 6"W x 8"L WT: 2.75 lbs
• UPC: 850074331698
