Facnor FX+0900 Flying Sail Furler

FX+0900 Flying Sail Furler

Further to constructive technical exchanges with ocean racers, Facnor has developed for over 20 years a sophisticated range of Gennaker/Code Zero furlers: the FX+. These furlers are known to be light, easy to fit, and aesthetic. Also, this furler is reliable for cruising or racing.

Features:

• Adapted to sailboat from 6 to 10.5m (20 to 30 ft.)
• Code sail surface of 30m²/ 322ft² maximum
• Captive quick-release pin
• Possible conversion for asymmetric Spinnaker
• Composite/carbon housing
• Maintenance-free units (sealed bearings)

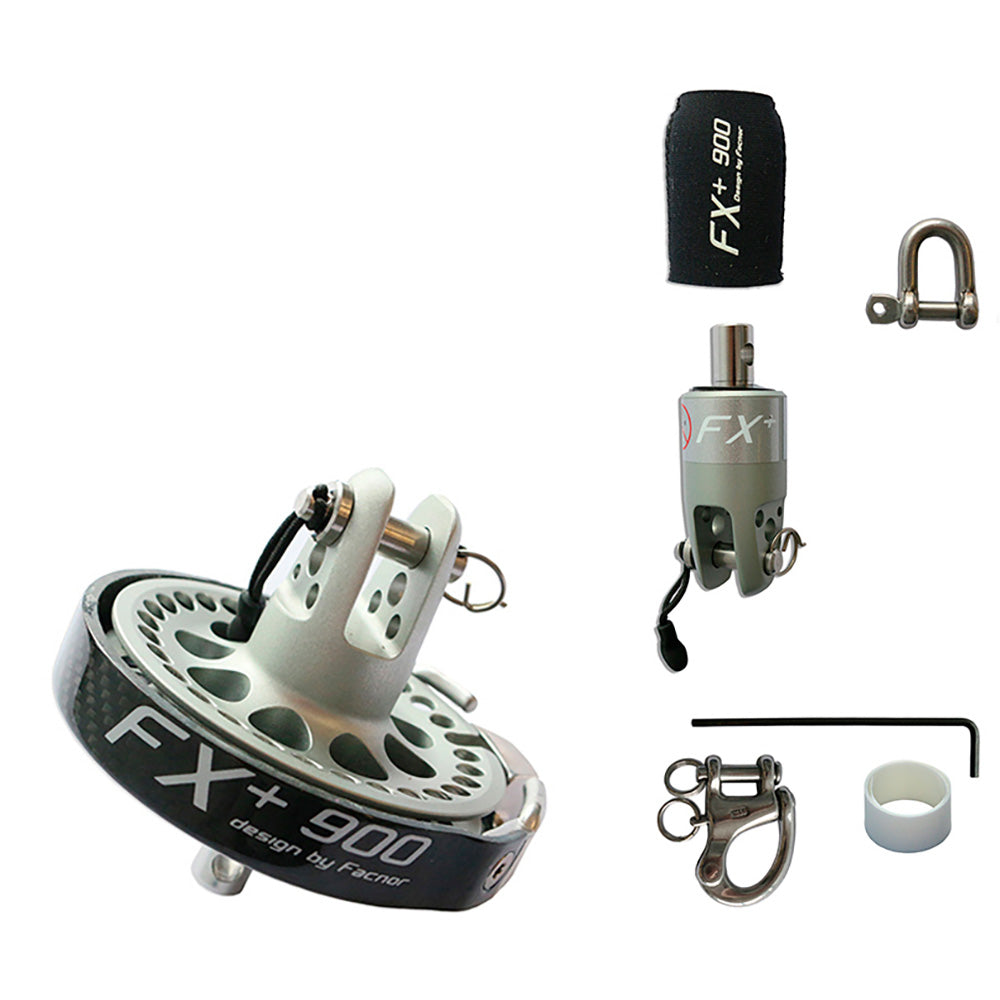

The Standard Kit of the FX+900 Furler Includes:

• One continuous line drum in anodized aluminum and CNC machined in a solid block, protected by a composite/carbon housing, low-profile drum
• One swivel also in anodized aluminum and CNC machined in a solid block, including a neoprene anti-impact cover with high-visibility marking
• One snap shackle as the bottom drum attachment (Optional SSH+900/1500 solid sheave as an alternative)
• One shackle as the top swivel attachment (optional FRX900/1500 2-to-1 friction ring as an alternative)

Offers Comfort in Sail Handling, Reliability, and Easy Manipulation:

• Monoblock's conception of the mechanisms for more sturdiness and long-lasting
• Intuitive manipulation to connect the sail to the mechanisms thanks to a fitted-in, compact, and unique captive quick-release pin
• Bottom drive unit with a largely dimensioned diameter for strong torque and therefore more comfortable handling
• Is rotation transmitted through an anti-torsion luff rope? Optional—sliding inside the luff tape and fitted with a thimble on each end
• Optimize the investment by converting the furlers for use with the asymmetric spinnaker; just add a FAST top-down thimble

Specifications:

• Weight: 0.57 kg
• Sailboat Length (feet): 20'-30'
• Code Sail Area (m²): 30,00
• Code Sail Area (ft²): 322,00
• Staysail Area (m²): Not adapted to furl a staysail
• Staysail Area (ft²): Not adapted to furl a staysail
• Safe Working Load (tons): 0,90
• Standard Top Swivel Attachment: Shackle
• Standard Bottom Drum Attachment: Snapshackle
• Ratchet Option: NOT available
• Continuous Line Drum Ø: 85,00mm
• Spliced Furling Line Ø: 6,00mm
• Warranty: 3 years

*Optimize the investment by converting the furler for use with an asymmetric spinnaker; just add the FAST 900 top-down thimble.
