Description

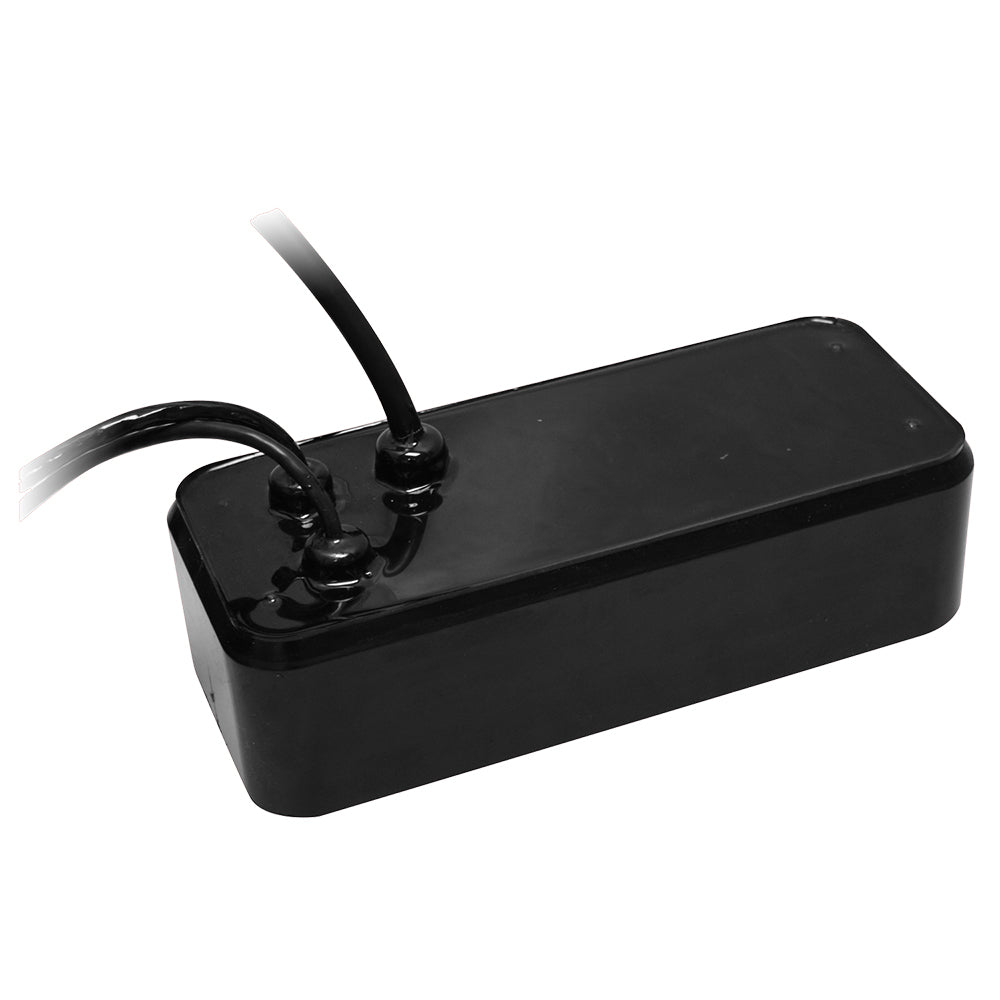

165T/265LH-PM488 DFF3D CHIRP Combo Pocket Mount Transducer
Pocket Mount Combination Transducer
This transducer has housing (12 LX 5 W X 3.5 H) that contains the DFF3D elements along with the same CHIRP elements contained in B265LH.
Features:
DFF3D operating frequency 165 kHz
Low—CHIRPS from 42 kHz to 65 kHz, Beamwidth 25° to 16°
High—CHIRPS from 130 kHz to 210 kHz, Beamwidth 10° to 6°
Bottom discrimination and Accu-fish compatible (without TID)
12M Cables. Pigtail cable for DFF1-UHD, 7-pin connector and a pigtail cable for the DFF3D
Recommended for a DFF1-UHD and DFF3D installation
Built-in motion sensor
Built in temp sensor
