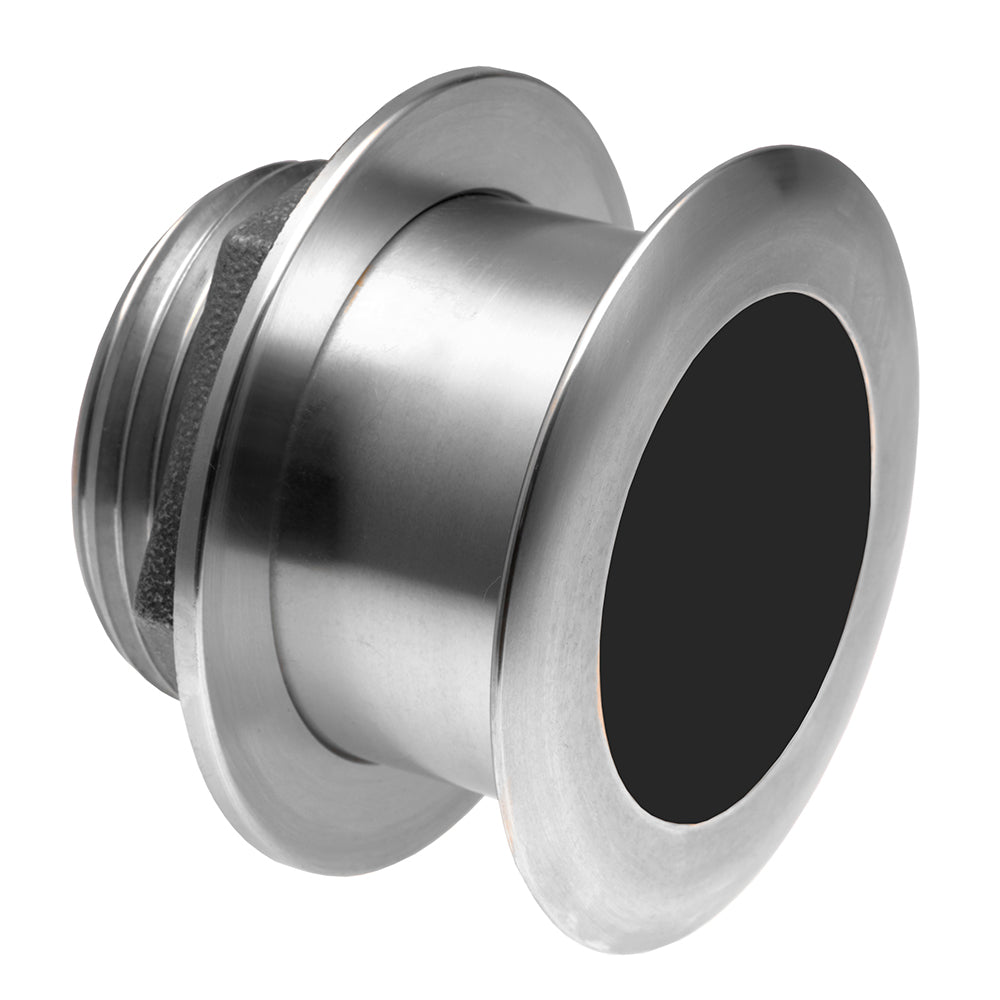

If a thru-hull flush-style, stainless steel transducer is called for, the 12-Degree Tilted Element 556TID-LTD/12 will accommodate a deadrise angle between 8° and 15°. This transducer compensates for deadrise by angling the element inside the housing.
The transducer is labeled with an arrow on top of the housing that should point towards the keel, whether it is installed to port or starboard. This ensures that the tilted element within the housing is given the correct orientation.
Features:
1kW 50/200 kHz
20/6 degree Beam Angles
Stainless Steel Thru Hull with Temperature
30 Foot Cable with 10-Pin Connector
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
