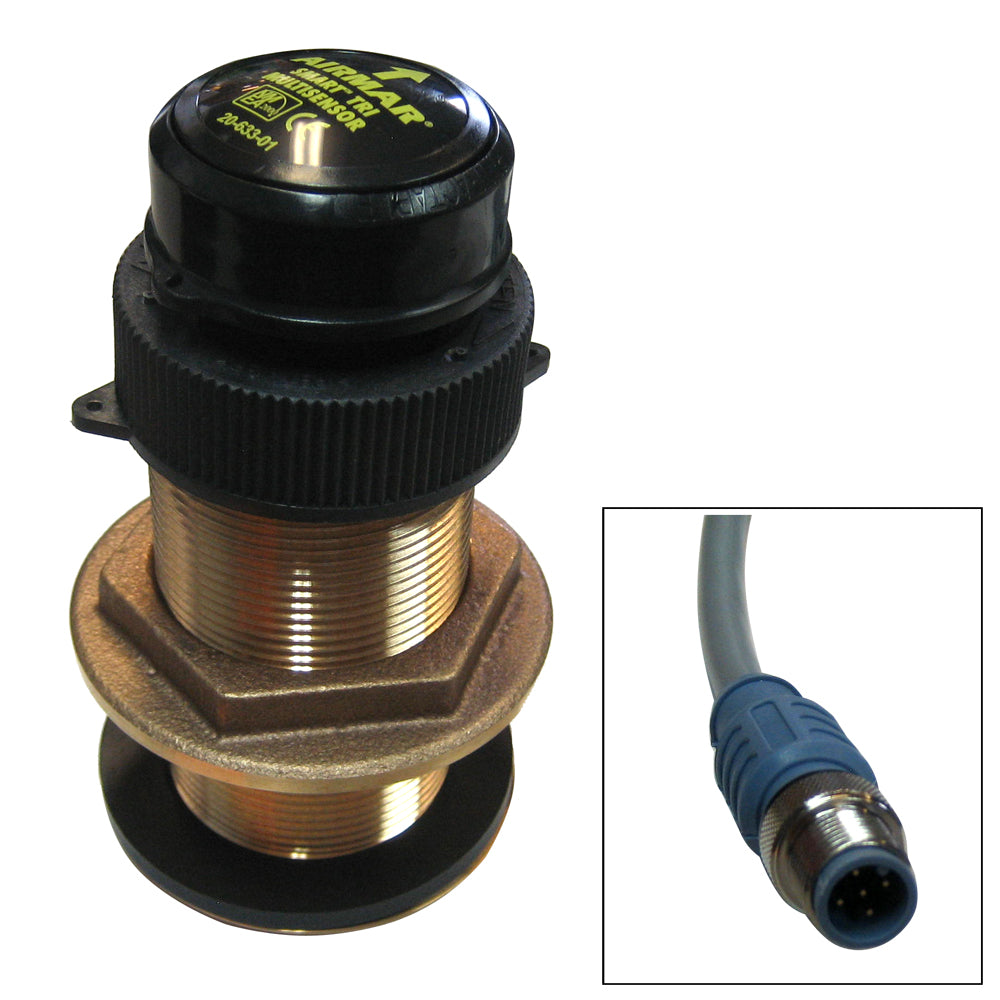

Designed with Airmar's exclusive Broadband Ceramic Technology, the DT-800MSF's 235 kHz element improves resolution without sacrificing sensitivity. The higher power rating 100W RMS provides spot-on depth readings in as little as 0.45M (1.4') of water and can reach depths up to 180M (600')
Standard Features:
Depth and temperature in one compact bronze housing
Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy
Specifications
Weight: 1.5kg (3.4lb)
Acoustic Window: Urethane
Data Update Rate: 1 per second
Minimum Sounding Depth: 0.5M (1.6')
Maximum Sounding Depth: 180M (590)
Pressure Rating: 3M (10')
Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)
Smart Sensor Supply Voltage at 100% Sound Power Output: 10 VDC to 25 VDC
Supply Current: 40 mA
Standard Cable Length: 6M
NMEA 2000® Load Equivalency Number (LEN): 4
*p/nm = pulses per nautical mile
