Description
ECHOMAP™ UHD2 7" sv Ice Fishing Bundle with ECHOMAP™ UHD2 73sv & GT10HN-IF Transducer
Designed for the passionate angler, the ECHOMAP UHD2 73sv Ice Fishing Bundle provides detailed maps and sonar so you can transform your fishing experience.
Features:
- Built with a bright 7” touchscreen display and keyed assist
- Included transducer so you see what’s below

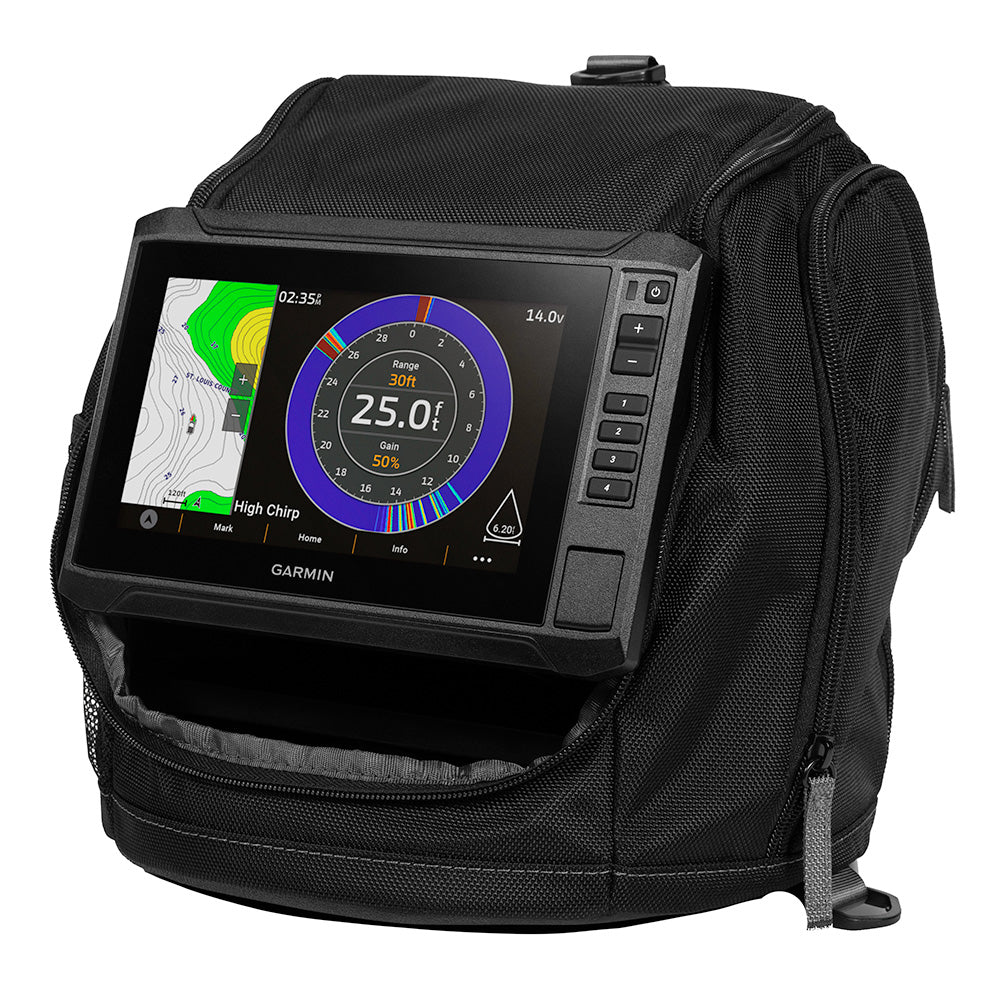

- Built-in flasher
- Garmin Navionics+™ maps with 23,000+ lakes
- Rugged, portable carrying case

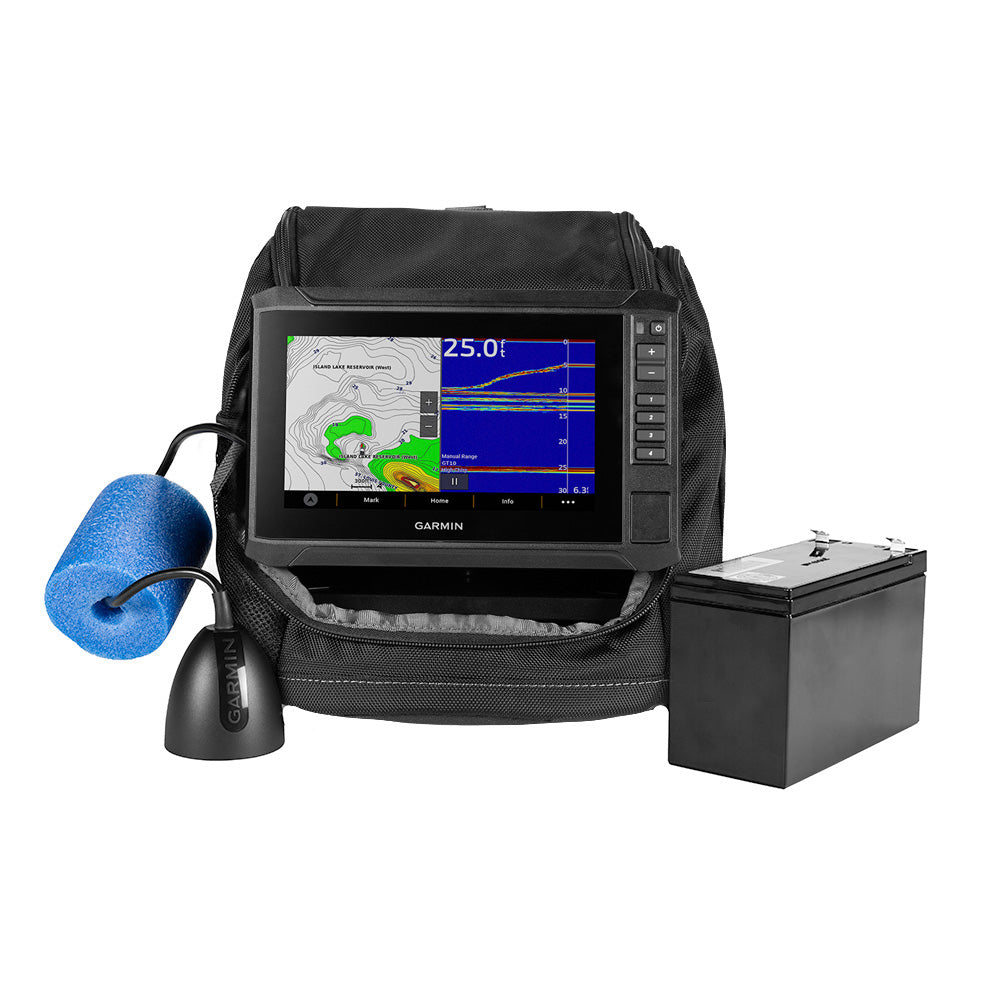

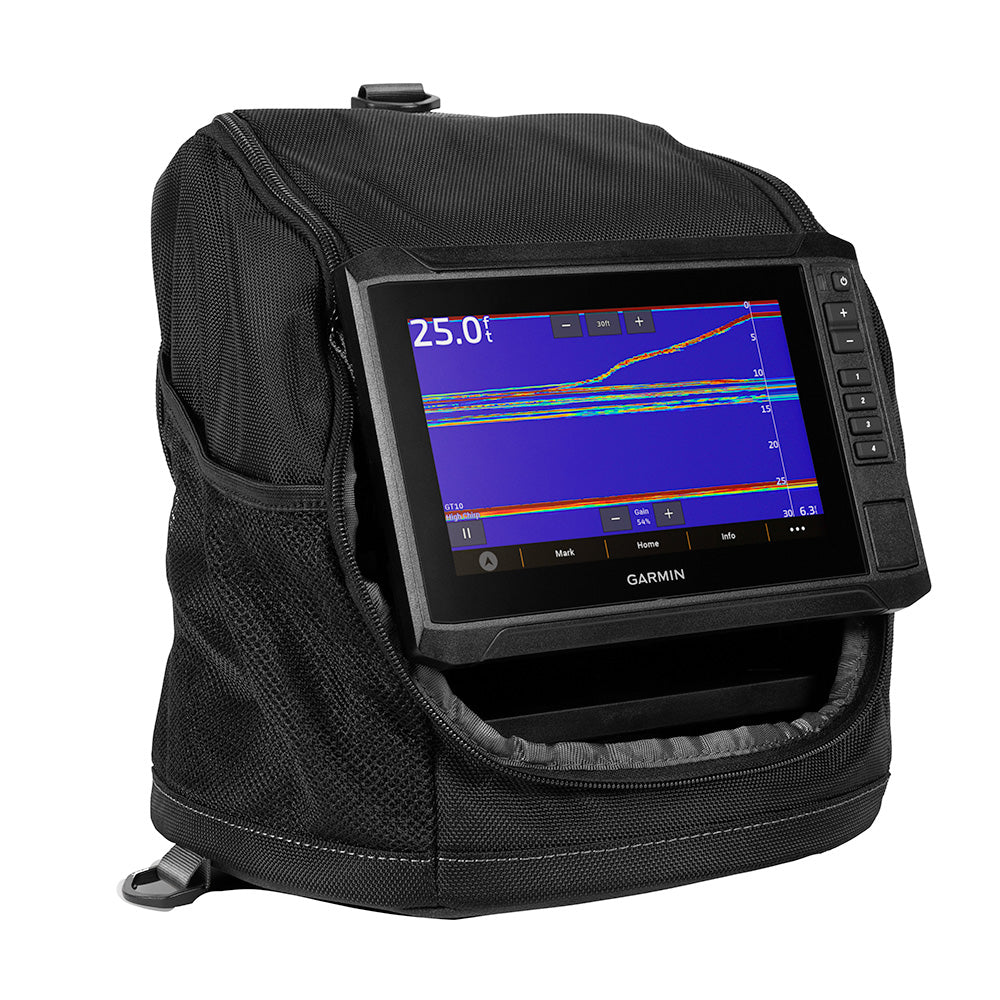

ECHOMAP UHD2 Chartplotter
The 7” ECHOMAP UHD2 73sv chartplotter with touchscreen and keyed assist is perfect on the ice or on your boat (additional accessory purchase required).
Ice Fishing Transducer
This bundle includes the GT10HN-IF, a high narrow CHIRP ice fishing transducer with selectable beamwidth (7 to 16 degrees), and it provides crisp, clear fish arches with excellent target separation.
Garmin Navionics+ Maps
You get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.
Custom Combos
You can create custom pages that combine sonar, flashers, and maps on your display.
Supports Scanning Sonar
ECHOMAP UHD2 73sv also supports ClearVü™ and SideVü™ scanning sonars for nearly photographic images of what’s below the boat (transducer sold separately).

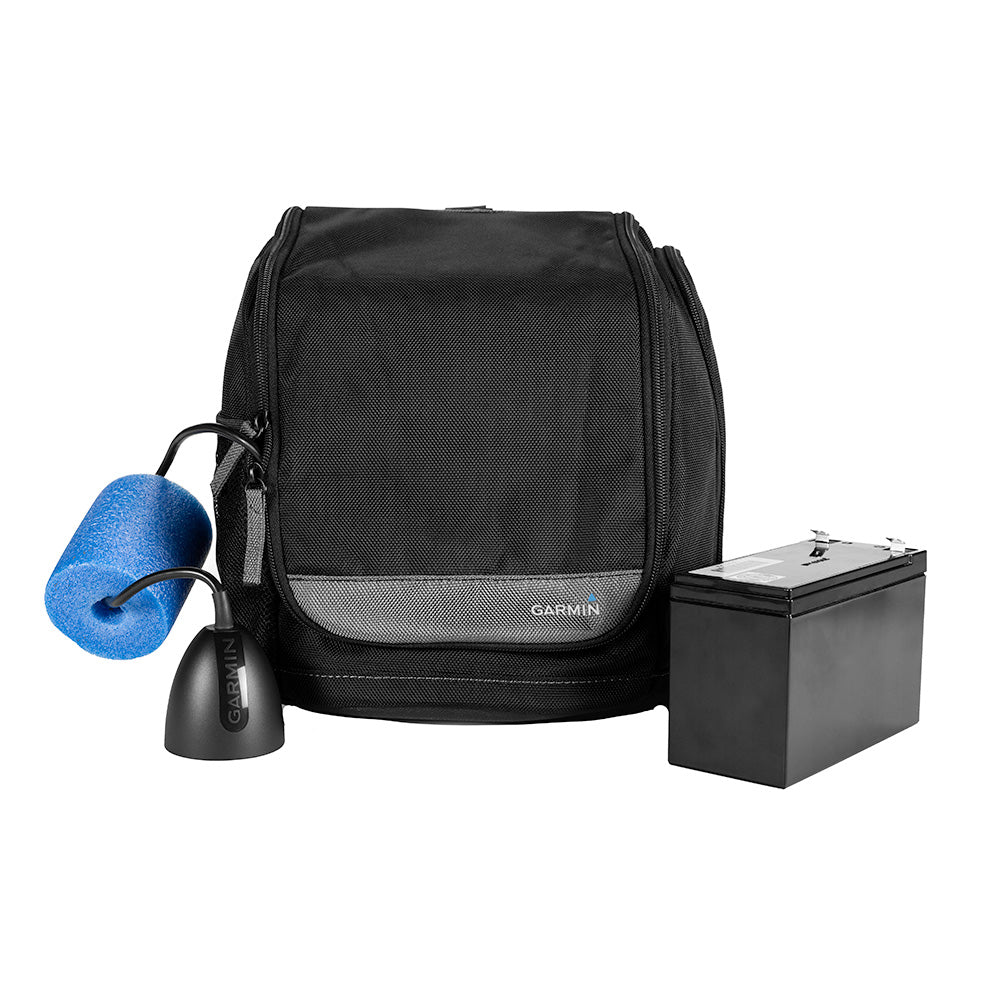

Carrying Case
Where you take your bundle is up to you. But the rugged, glove-friendly portable carrying case lets you easily transport it from hole to hole and season to season.
In the Box:
- ECHOMAP™ UHD2 73sv chartplotter
- GT10HN-IF ice fishing transducer
- Tilt/swivel mount
- Portable bag
- Base/handle
- Foam float
- Power cable
- Rechargeable battery
- Battery charger
- Documentation
General Specifications:
- Dimensions: 10.5 x 9.5 x 10.5 in. / 26.7 x 22.9 x 26.7 cm
- Touchscreen: Yes
- Display Size: 6.1 x 3.4, 7.0" in. / 15.5 x 8.7, 17.8 cm
- Display Resolution: 800 x 480 pixels
- Display Type: WVGA, IPS
- Weight: 11 lbs / 5.0 kg
- Waterproof: IPX7
Maps & Memory:
- Accepts Data Cards: 1 microSD™ card; 32 GB maximum size
- Waypoints: 5000
- Track Points: 50,000
- Tracks: 50 saved tracks
- Navigation Routes: 100
Ice Fishing Details:
- Battery Type, Size: SLA, 7Ah
- Bag Size: Small
- Included Transducer: GT10HN-IF
- Transducer Holding Feature: Foam float
Sensors:
- Has Built-in Receiver: Yes
- Receiver: 10 Hz
- NMEA 2000 Compatible: Yes
- GPS: Yes
- Glonass: Yes
- Galileo: Yes
- Beidou: Yes
- Supports Waas: Yes
- Supports Multi-Band, Multi-Constellation GPS: Yes
Built-in Maps:
- Built-in Auto Guidance+: Yes (downloadable via ActiveCaptain app)
- Garmin Navionics+ Inland & Coastal: Yes (see Additional)
- Garmin Navionics+ (Inland): Yes (see Additional)
Optional Map Support:
- Garmin Navionics+: Yes
- Garmin Navionics+ VIision+™: Yes
- TOPO: Yes
- Standrad Mapping: Yes
- Garmin Quickdraw Tours: Yes
Chartplotter Features:
- ActiveCaptain® Compatable: Yes
Electrical Features:
- Power Input: 9 to 18 Vdc
Sonar Features & Specifications:
- Displays Sonar: Yes
- Power Output: 500 W
- Traditional Sonar (Dual Frequency/Beam): Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
- ClearVü™: Built-in 260/455/800/1000/1200 kHz
- SideVü™: Built-in 260/455/800/1000/1200 kHz
- Panoptix™ Sonar: Yes
- Livescope; Yes
Connections:
- NMEA 2000® Ports: Yes
- Garmin Marine Network Ports: 1
- 12-Pin Transducer Ports: 1
- Bluetooth® Pairing: Yes
- Ant+ (Connectivity): Yes
- Garmin Wi-Fi Network (Local Connection): Yes
Additional:
- Garmin Navionics+ Inland & Coastal: 75sv Canada
- Garmin Navionics + (Inland): 75sv U.S. Lakes
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
Specifications:
- Included Transducer: GT10HN-IF
- Screen Size: 7"
- Touchscreen: Yes
- Transducer Included: Yes
- Box Dimensions: 9"H x 12"W x 17"L WT: 14.2 lbs
- UPC: 753759322724
