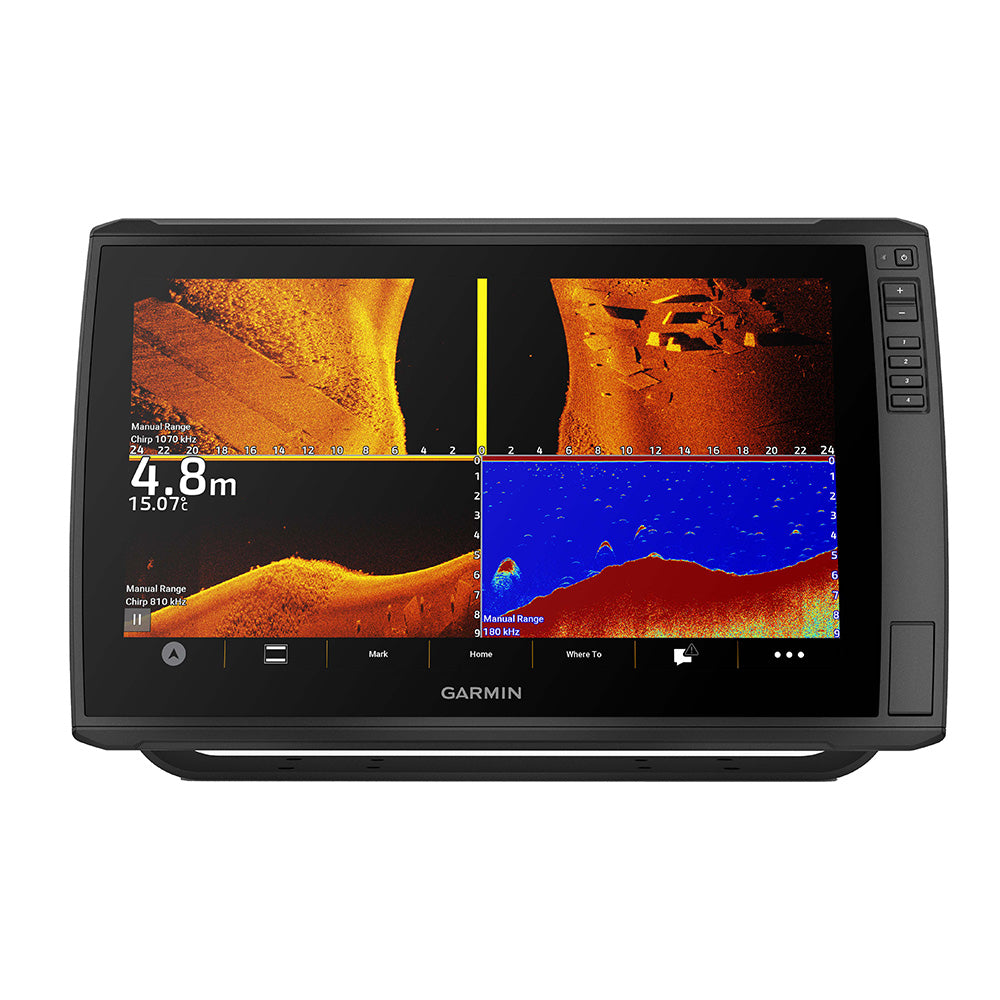

ECHOMAP™ Ultra 2 16" Chartplotter 162sv with Worldwide Basemap without Transducer
SEE BIGGER CATCHES ON A BIGGER SCREEN
Designed with the serious angler in mind, this 16-inch chartplotter with a full HD resolution display brings the ultimate in big-picture clarity, brightness, and readability to your navigation mapping and sonar returns. Select models come preloaded with Garmin Navionics+™ mapping. Plus, there’s support for the full line of LiveScope™ sonars1 as well as Ultra High-Definition scanning sonars and CHIRP traditional sonar.
LIVESCOPE SONAR SUPPORT
The ECHOMAP Ultra 2 chartplotter series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).
BUILT-IN UHD SONAR
Select models are bundled with a GT56 transducer that provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.
PRELOADED CHARTS
Select units come with built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading, and more. For added features, Garmin Navionics Vision+™ premium mapping is optionally available (sold separately).

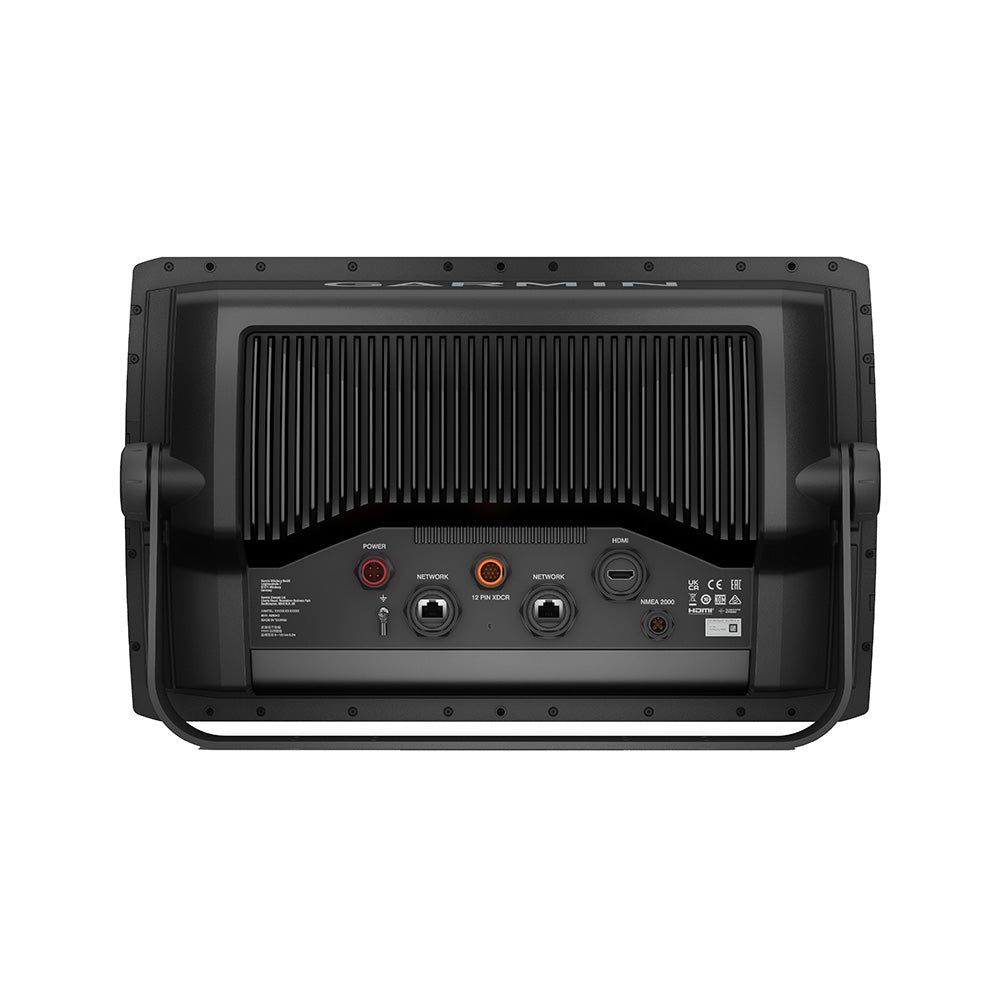

HDMI OUTPUT
Use the chartplotter’s HDMI output connector to share your sonar screen with a TV or other external display.
VOICE CONTROL FEATURES
Built-in BLUETOOTH technology enables you to give voice commands to your chartplotter for hands-free control of such features as Force® trolling motor modes, favorite keys, and sonar inputs.
VIVID COLOR PALETTES
High-contrast, vivid scanning sonar color palettes make it easier than ever to distinguish targets and structures.
WIRELESS NETWORKING
Share sonar3, waypoints, and routes with another ECHOMAP Ultra 2 or UHD2 plotter on board.
MULTI-BAND GPS
Get improved position accuracy with multi-band GPS
NMEA 2000® NETWORK COMPATIBILITY
Connect to heading sensors, autopilots, Fusion-Link™ audio systems, and more.
ACTIVECAPTAIN® APP
Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw™ Community data, and more4.
FORCE TROLLING MOTOR
Wirelessly connect to your Force trolling motor to navigate to waypoints, draw and follow routes, and more.
SCREEN RECORDING
Use the recording feature through the ActiveCaptain app on your smartphone to share images from your chartplotter.
BAIL MOUNT WITH KNOBS
Surface mount your compatible ECHOMAP Ultra 2 chartplotter by using our bail mount with knobs; the mount tilts for optimum viewing.
Specifications:
- Dimensions: 16.9" x 10.5" x 3.14" (43.0 x 26.6 x 8.0 cm)
- Weight: 9.5 lbs (4.31 kg)
- Water rating: IPX7
- Touchscreen: Yes
- Display Type: FHD, IPS
- Display Size: 13.6" x 7.7"; 15.6" diagonal (34.5 x 19.5 cm; 39.7 cm diagonal)
- Display resolution: 1920 x 1080 pixels
- Mounting Options: Bail or flush
- Input: Touchscreen with Keyed Assist
- Accepts Data Cards: 2 microSD™ cards
- Waypoints: 5000
- Track points: 50,000
- Tracks: 50 saved tracks
- Navigation Routes: 100
- Power Input: 9 to 18 Vdc
- Typical current draw at 12 Vdc: 3.9 A
- Maximum current draw at 12 Vdc: 6.6 A
- Maximum power usage at 10 Vdc: 48 W
- Traditional sonar (dual frequency/beam): built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
- ClearVü: Built-in 260/455/800/1000/1200 kHz
- SideVü: Built-in 260/455/800/1000/1200 kHz
What's In The Box?
- ECHOMAP Ultra 162sv or 166sv (depending on the version selected) with optional Garmin Navionics+
- Power cable
- Bail mount with knobs
- Protective sun cover
- Trim caps
- Hardware
- Documentation
1LiveScope™ System sonar transducer sold separately2Via one-to-one unit wireless connection only3LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters4Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotter
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Garmin is under license.
Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
Specifications:
- Cartography Brand: Garmin Navionics+
- Screen Size: 16"
- Touchscreen: Yes
- Transducer Included: No
