Description

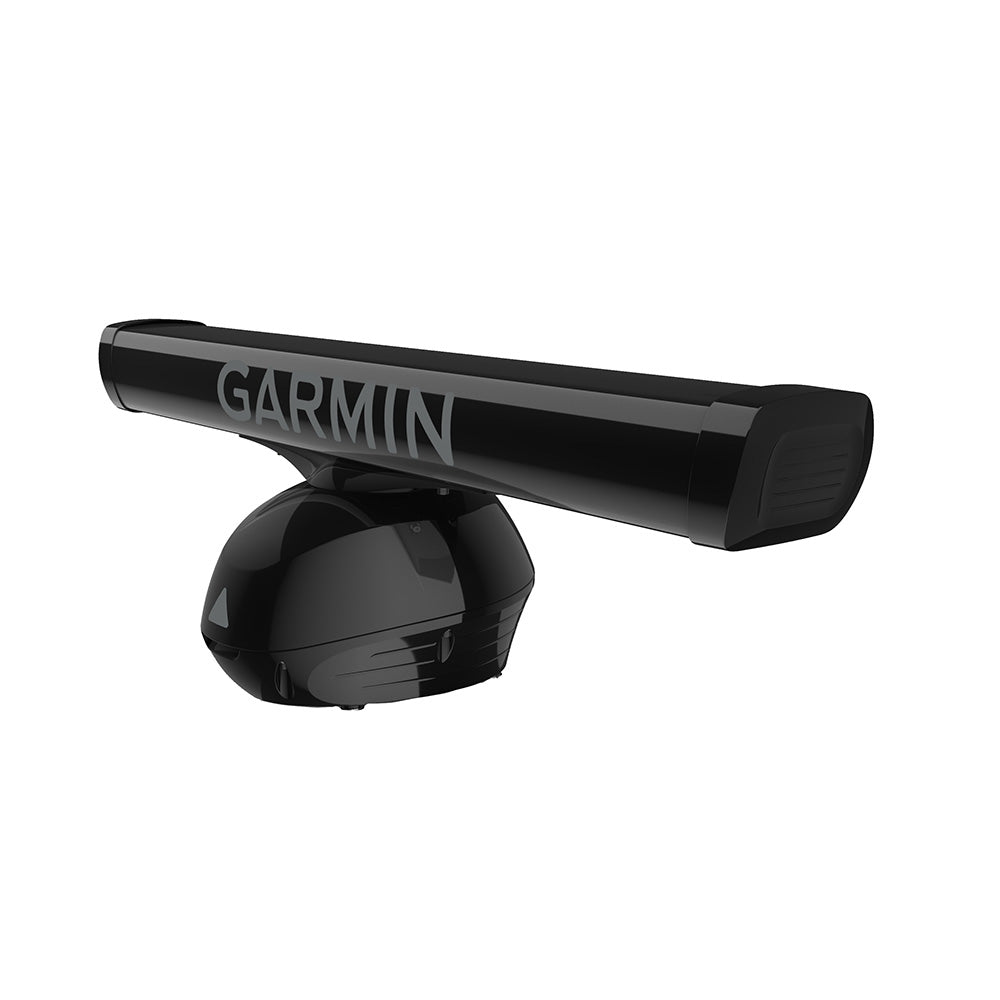

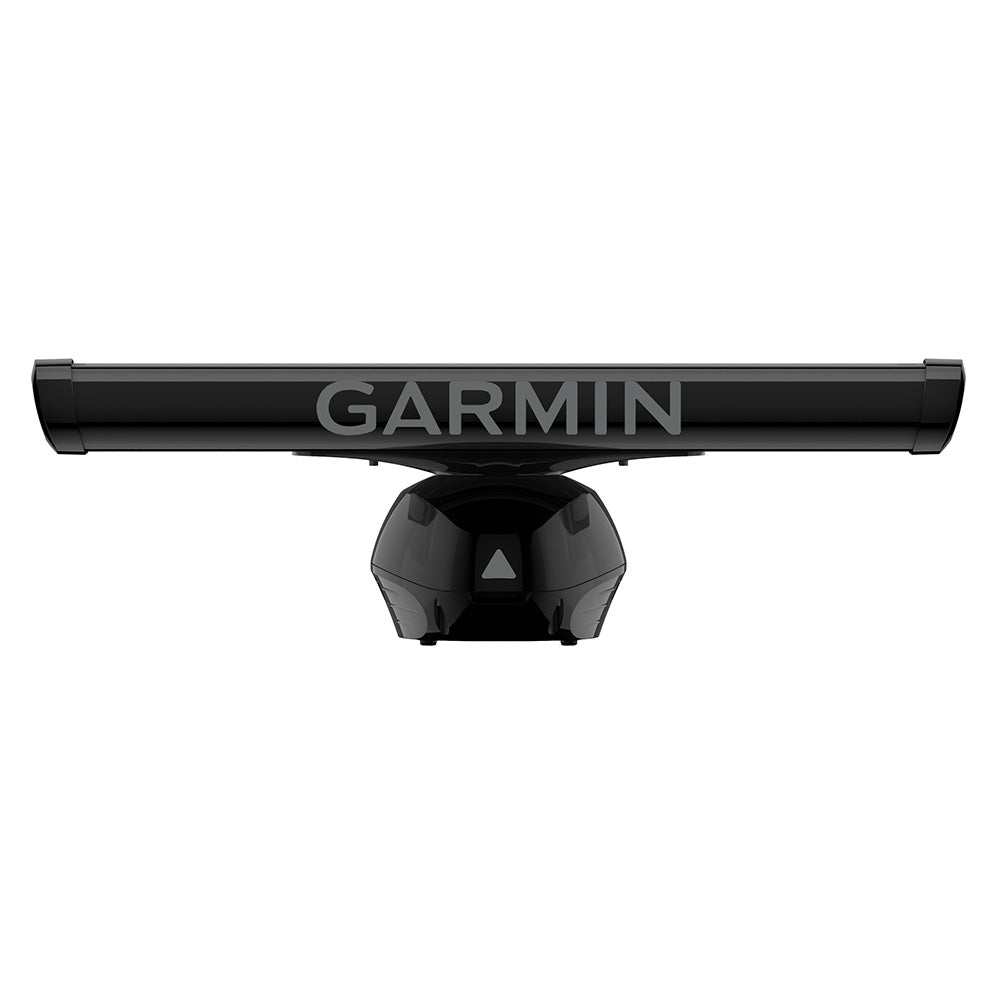

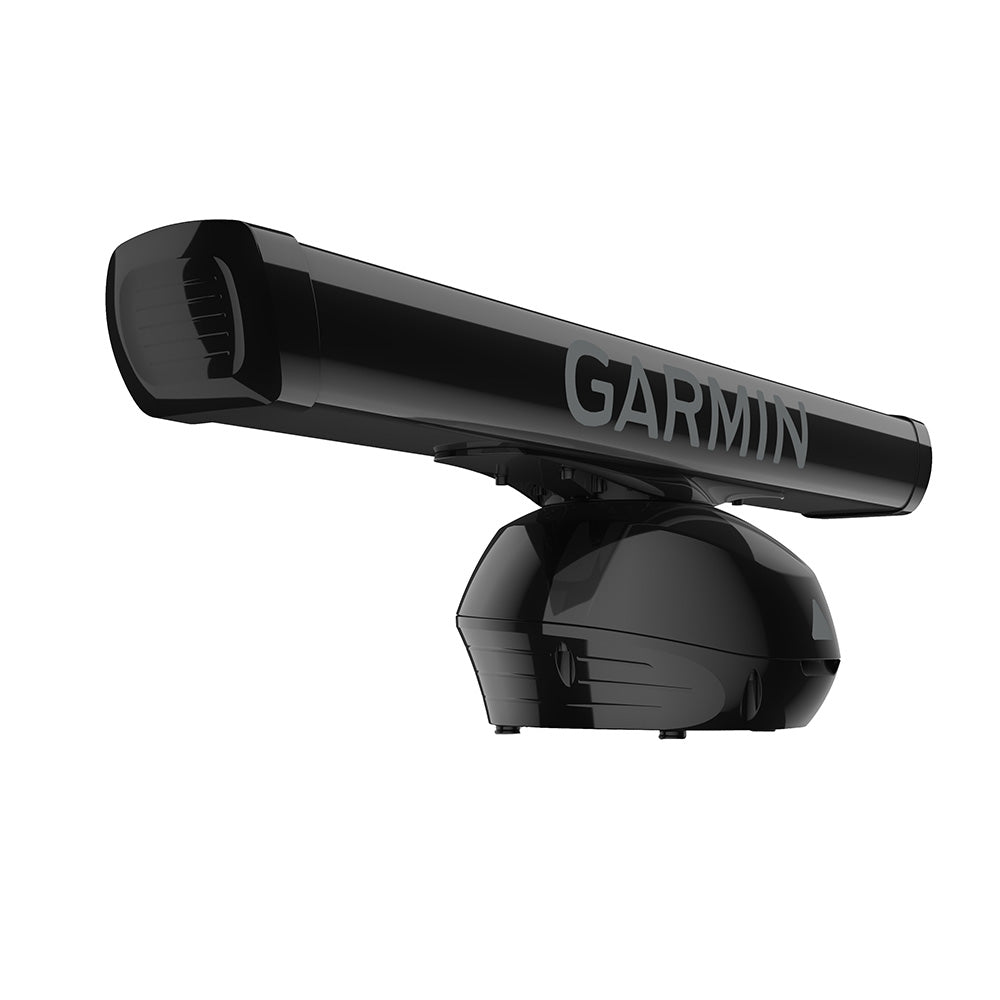

GMR Fantom™ 254 Radar - Black
GMR Fantom™ 254 is the most powerful 4’ consumer solid-state radar.
Features:
MotionScope™ highlights everything that moves so there are no surprises
GMR Fantom brings the power (250 watts of it)
Know the long and short of it with a detection range of 20’ to 96 nautical miles
The more the merrier with MARPA. Keep track of up to 30 moving targets
Clear the clutter with scan-to-scan averaging
Automatic Acquisition
New mini-automatic radar plotting aid (MARPA) automatic acquisition allows for triggering and tracking of up to 30 targets with no user prompting on all returns, boundary zones, guard zones, or MotionScope.
Motionscope Technology
MotionScope uses the Doppler effect to detect moving targets and highlight them in different colors so users can navigate around other boats or severe weather — or toward fishing spots where birds feed at the surface.
Clear the Way
Scan-to-scan averaging aids in the reduction of sea clutter and interference, so users have a clear view of what’s out there.
Auto Bird Gain
Locate flocks of birds at the water’s surface where baitfish are also likely to be found
Pulse Compression
This feature provides high-resolution imaging while maximizing energy to enhance target detection and identification.
Echo Trails
A historical “trail” is left on the screen to help users quickly and easily identify moving targets and potential collision threats.
Radar Overlay
Overlay radar images onto a chart plotter’s map page. Users can add an optional autopilot or heading sensor (sold separately) for best results.
Dynamic Sea Filter
Dynamic Sea Filter automatically adjusts gain to calm, medium, and rough sea conditions.
Guard Zone
Set the safety zone, and receive an alarm when an object enters the zone.
General Specifications:
Dimension: Pedestal: 16.6" x 14.3" x 10.7" (42.1 x 36.4 x 27.1 cm)Full assembly: 15.9" height x 51.8" diameter (40.3 cm x 131.4 cm)
Rotation Speed (RPM): 24 and 48 RPM (high speed only available in single range mode with motion scope disabled and on range settings of 12 NM or lower)
Beam Width: 1.8° Horizontal, 23° Vertical
Maximum Range: 96 NM
Minimum Range: 6 Meters
Radar Type: Open-Array
Electrical Specifications:
Power Input: 10-32 V DC
Transmit Power: 250 W
Radar Specifications:
Dual Range: Yes
Overlay: Yes
Dual Radar Support: Yes
Auto Bird Gain: Yes
Auto Gain: Dynamic
Marpa Target Tracking: Yes (requires heading sensor, sold separately)
Echo Trails: Yes
Motionscope: Yes
Programmable Antenna Parking: Yes
Target Size: Yes
Scan Averaging: Yes
In the Box:
Black GMR Fantom 254 antenna and pedestal
Mounting hardware kit and template
Right-angle power cable (15 meters)
Right-angle network cable (15 meters)
Voltage converter
Documentation
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
Specifications:
Array Size (Inches): 48"
Power - Output: 250w
Range - Max (Miles): 96nm
Box Dimensions: 9"H x 11"W x 56"L WT: 85.5 lbs
UPC: 753759331467
