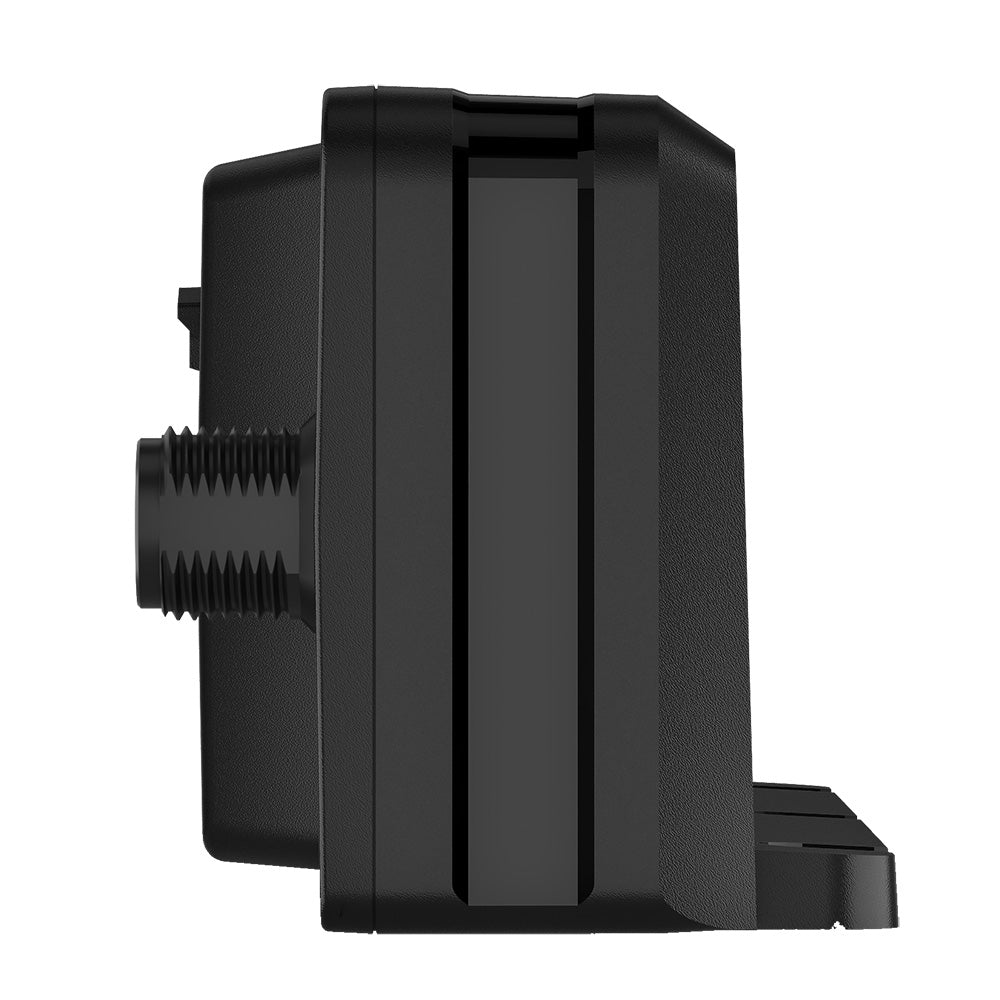

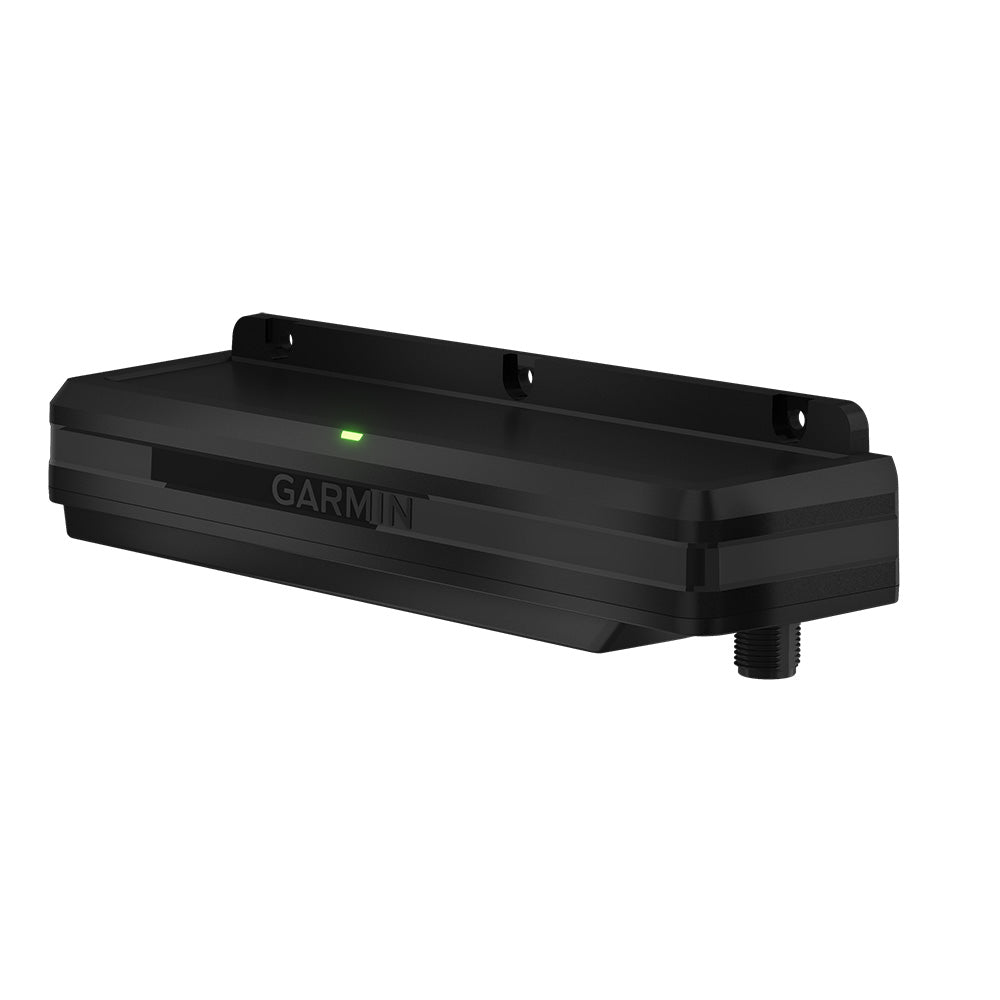

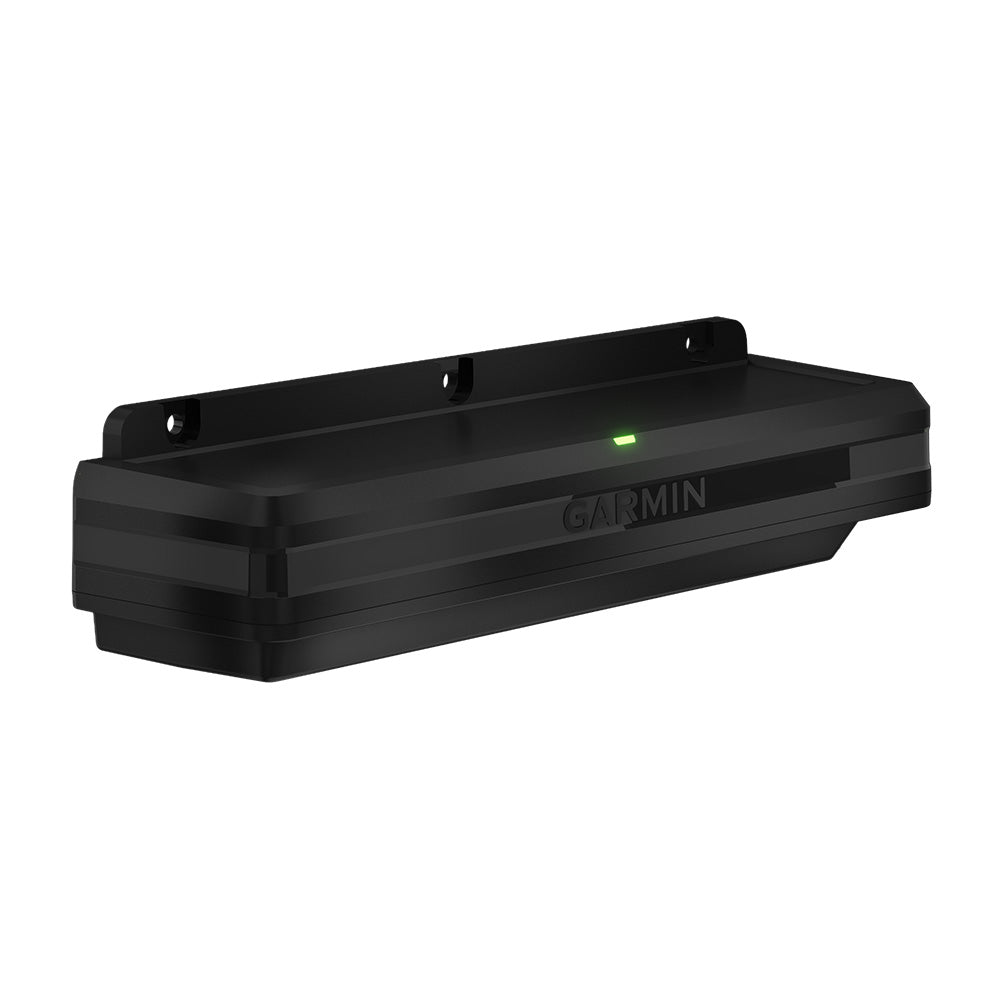

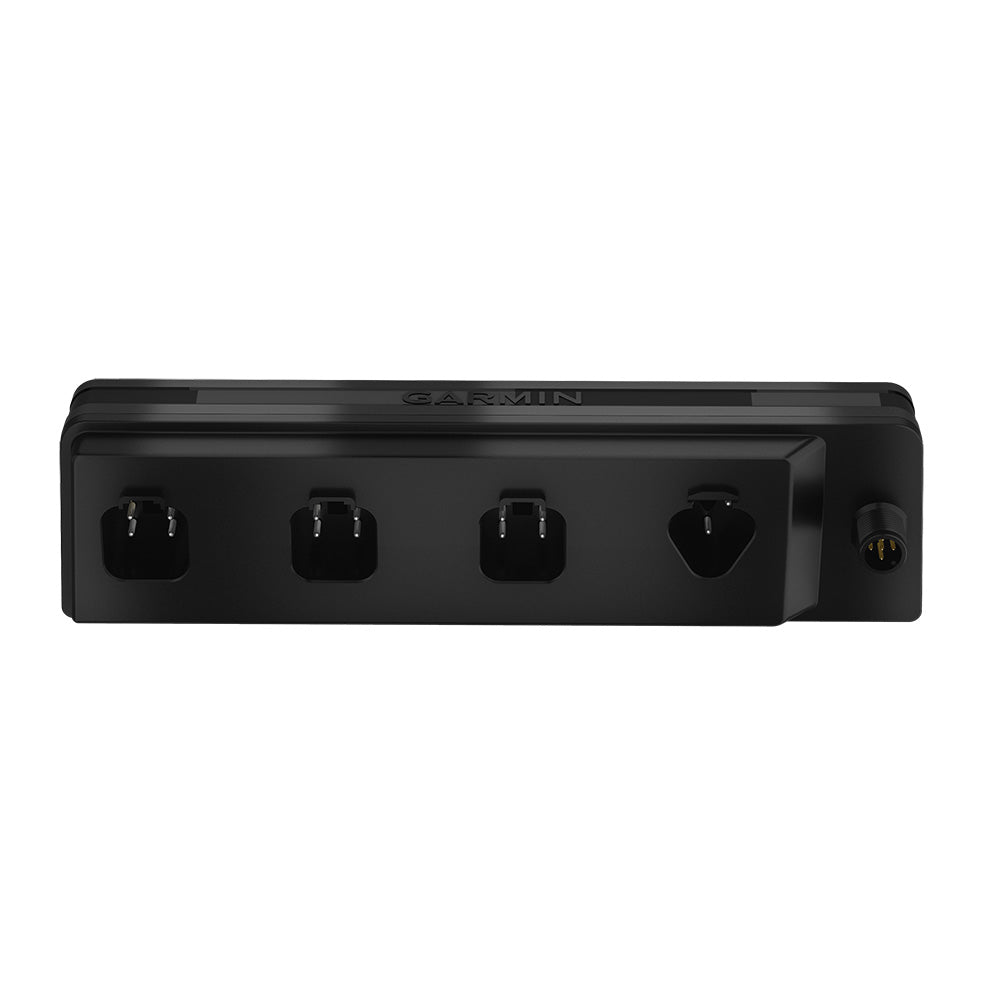

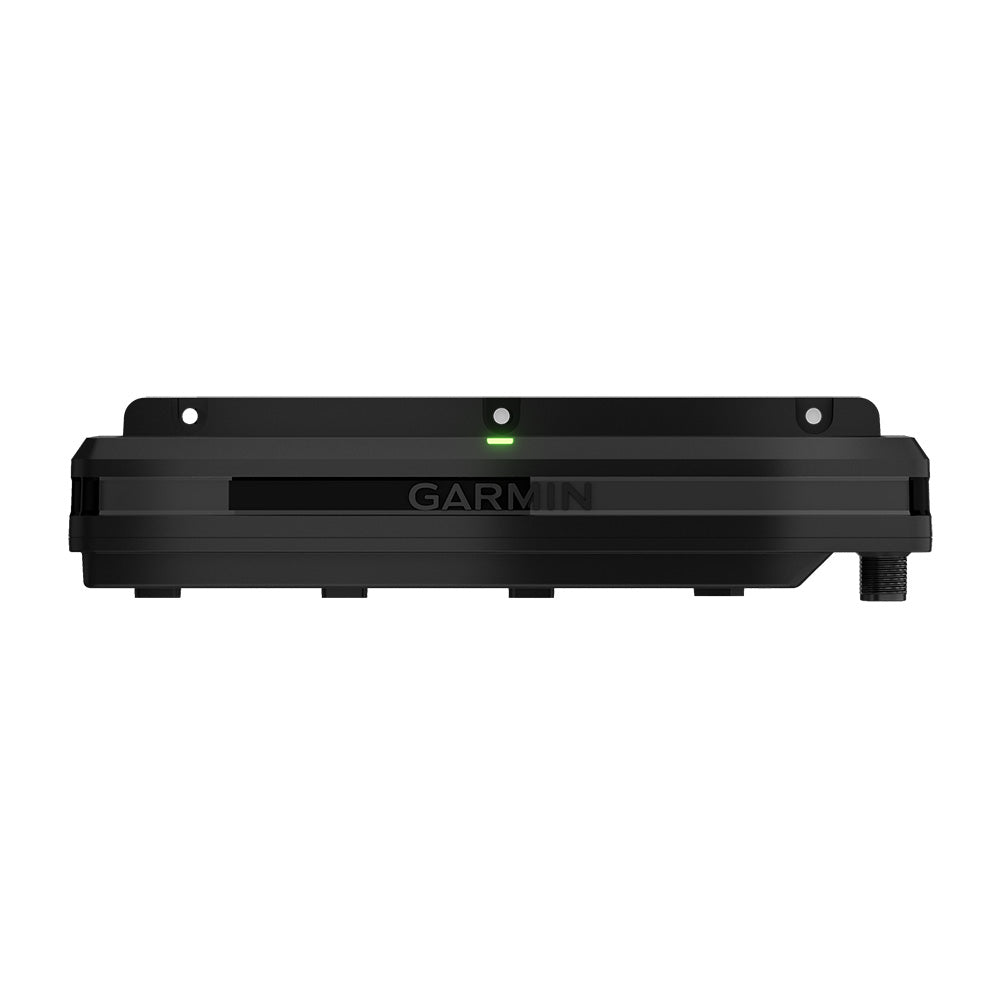

Garmin Spectra LC302 LED Control Module

Spectra™ LC302 LED Control Module

SET THE VIBE FOR YOUR RIDE

Control LED lights on your boat from your compatible chartplotter or smartphone with the Garmin Spectra light control module (lights not included). Assign and control different light groups for cup holders, speakers, strip or courtesy lights, and more to create your vibe.

BE THE LIGHT DJ

From bow to stern and everything in between, this module lets you control and set up different light groups and scenes.

IN YOUR CONTROL

You can control lights over the NMEA 2000® network with your compatible chartplotter or with the ActiveCaptain® app on your compatible smartphone.

MATCH THE BEAT

See the beat by syncing the LED lights to the music track with the audio sync feature.

FUSION® & JL AUDIO COMPATIBLE

Control LED lighting on Fusion and JL audio boat speakers, subwoofers, and wake tower speakers (sold separately).

GROW THE SYSTEM

Add more lights after the initial installation with a scalable system.

RUGGED DESIGN

Built to withstand the abuse of life on the water (by IP66/IP67 ratings)

Specifications:

• Unit dimensions (WxHxD): LC302: 7.76" x 2.05" x 1.85" (197 x 52 x 47 mm)
• Weight: LC302: 5.57 oz (158 g)
• Water rating: IP66/IP67
• Operating temperature range: 32° to 122° F (0° to 50° C)
• Compass-safe distance: 7.87" (20 cm)
• Warranty: 2 years

What's In The Box?

• Garmin Spectra LC302
• Power flying lead with water-resistant three-way connector
• Three (LC302) LED flying leads with water-resistant six-way connectors
• Tee connector for the NMEA 2000® network
• Backbone/drop cable (0.3 m) for the NMEA 2000® network
• Mounting screws
• Documentation
