Description

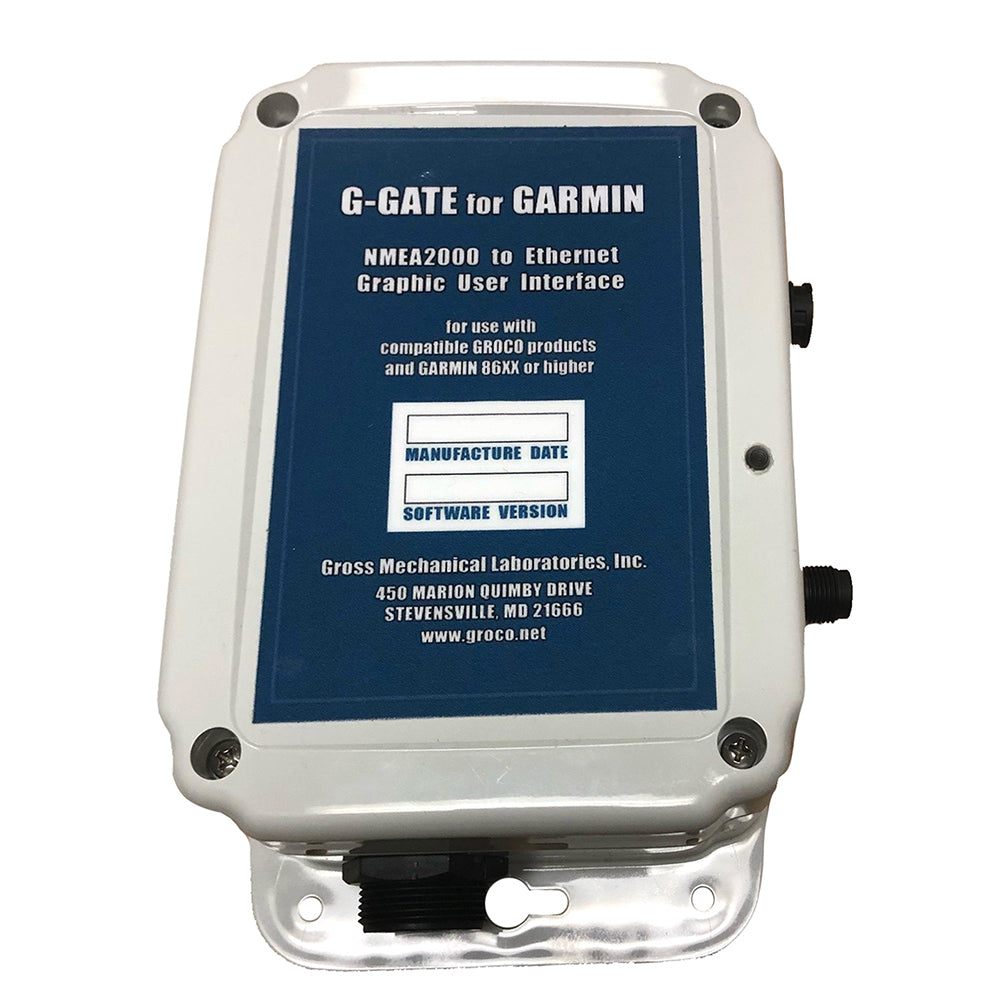

G-Gate Hub GROCO to Garmin
G-Gate module uses the vessel's NMEA2000 (N2K) backbone to coordinate and display data from up to 40 E-Valves (or other compatible devices) that are also operating on the N2K backbone. G-Gate uses its embedded ethernet, HTML5, and TPC/IP capability to function as an application server and to display control graphics on the vessel MFD. G-Gate is a Garmin OneHelm industry partner.
Power Requirements & Limits:
For 12VDC Systems: 12VDC nominal (8.5VDC minimum; 16VDC maximum
For 24VDC Systems: 24VDC nominal (16VDC minimum; 28VDC maximum
Electronics voltage protection limit = 30VDC
Typical current draw = 1 amp, 3 amps peak and inrush
Installed on Yanmar 4JH57 engines with Zeus Controllers - HOLY WOW power. Losing some power at top end but overall very satisfied. Will do a long term review later. Talk about power - hope to never need my generator again!
ARCO Zeus A8000 48V High Output Alternator - Isolated Ground
Magalie Laniel
Great design but fail fast in the caribbean sun...
We bought these boots in 2022, and are buying new ones 3 years later. We love the design and the fact that they are easy to remove for inspection of the rig.
Spreader Boots
Jon
Victron
Review for electrical system components:
• Victron Lithium Battery 24VDC 300Ah NG Smart LifePO4 (x4)
• Victron Lynx Smart BMS 500 NG (M10)
• Victron Lynx Distributor w/M10 Terminals (x2)
• Victron MultiPlus-II 24/5000 120-95 120V (x2)
• Victron Phoenix Smart IP43 Charger 24/25 (1+1) 120-240VAC (x5)
• Victron Cerbo GX MK2 w/ Victron GX Touch 70 Flush Mount Display
• Z Bar - Class T battery link Bundle w/ Blue Sea 5119 300AMP Class T Fuse (x4)
• Victron Orion XS 1400 DC-DC Battery Charger (x2)
• Victron SmartSolar MPPT Charge Controller - 100V - 30AMP - UL Approved (x4)
Complete upgrade of my Irwin 54 Sloop electrical system –
Phase 1 – Remove 9KW generator, install 30KW LifePO4 battery system, inverter chargers, battery chargers, etc. wired for worldwide shore power capability to ABYC standards. Installation made possible with guidance and support from Andre Cormier and The Yacht Rigger.
Victron Lithium Battery 24VDC 300Ah NG Smart LifePO4
Lacy Bryan White
Great Product!
I was amazed with the product especially, the attention to detail. I was also very pleased with the help and recommendations I received from Chris Wilcher. He made the purchase very easy.
Apex Turnbuckle
Lacy Bryan White
Quality Part
I was very pleased with the product especially, the attention to detail. I was also pleased with the support I received from Chris Wilcher. He made the purchase very easy.
