Description

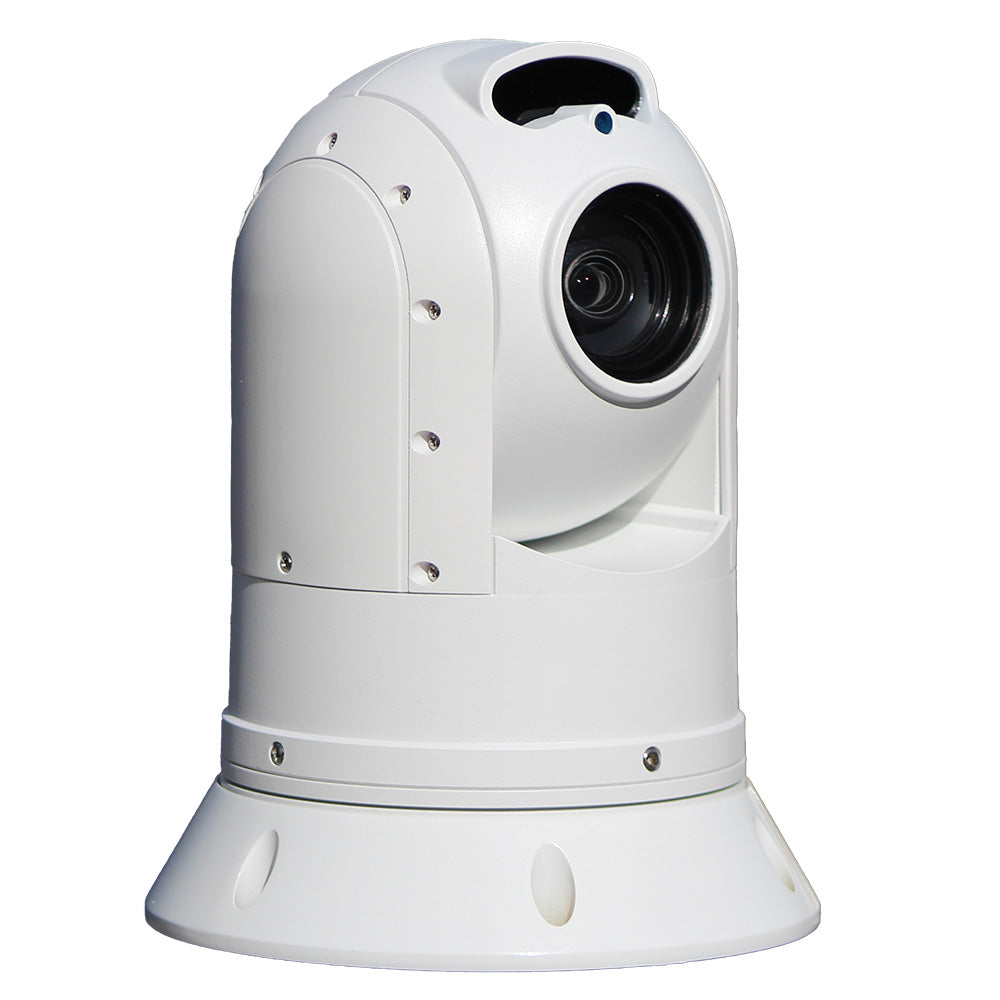

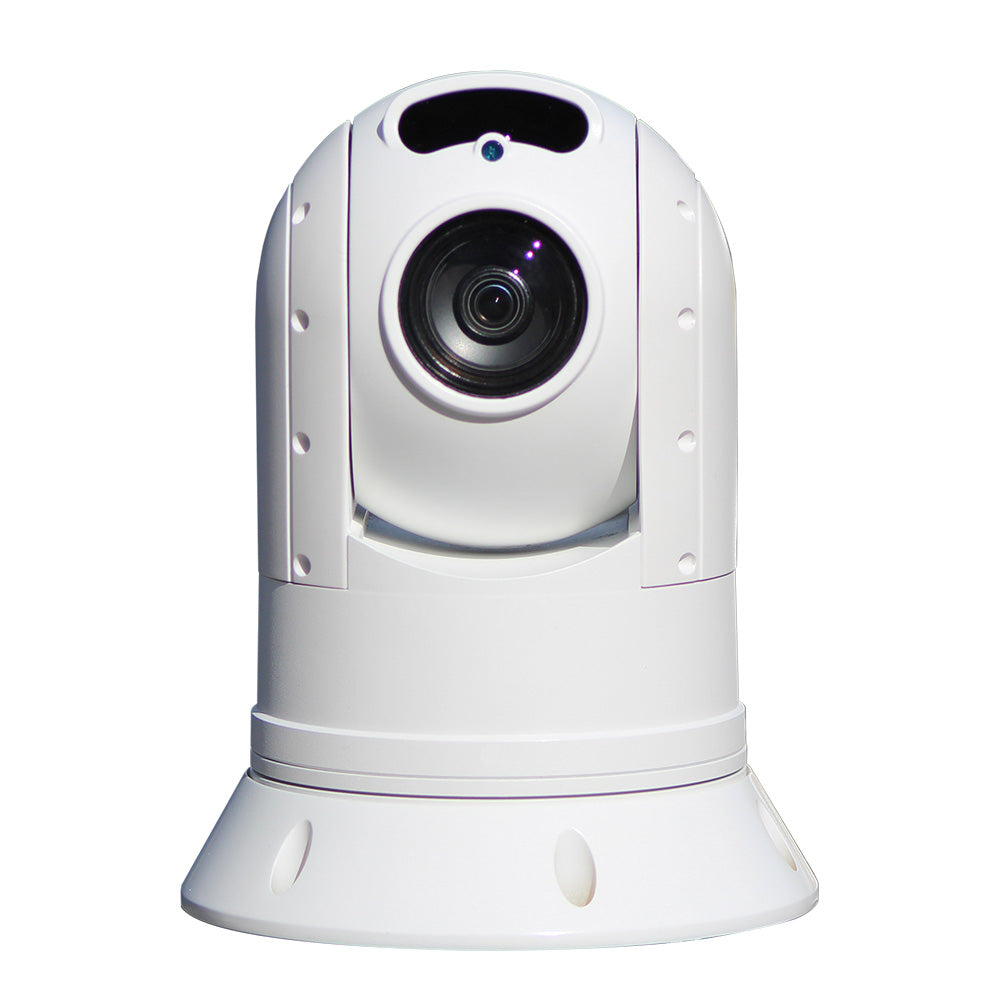

ATOM A118 4-in-1 Analogue HD PTZ Camera/Single Payload Low Light with IR LED + 30x Optical Zoom
The Atom Range, A118 Multi Format Analogue Hi-Def Rugged PTZ Camera with 30x Optical Zoom and Hi-Power LED Illumination.
Available with side entry or base entry cable options, the A118’s high-definition camera module is built into a robust yet compact waterproof gimbal mount enclosure, designed to protect the unit from the harshest environmental conditions.
The A118’s multi-format camera module can be configured to output 3 analog high-definition formats (HD-TVI / CVI & AHD) or standard definition composite (CVBS) video, maximizing compatibility with the latest video management and recording systems or fitting into legacy installations. The camera is equipped with leading digital image processing features such as noise reduction, image enhancement, and wide dynamic range technology and boasts a powerful 30x optical zoom lens to identify targets at extreme distances. An array of high-power infrared LED illuminators is built into the brow of the camera to provide visibility in the dark to a range of up to 100 meters. The camera's image processing features work to boost the image gain to provide maximum clarity in low light.
The camera is controlled over an RS485 Serial Data connection using industry-standard Pelco D CCTV control communications for super accurate, high-speed positioning. As well as offering ultra-responsive pan and tilt control with proportional zoom operation, the camera boasts up to 100 user-preset positions and a range of scans and user-configurable automated tours.
With its rugged, compact footprint and extremely competitive pricing, the Atom range of PTZ cameras is the perfect solution for vessels of all types and sizes and our industry-leading thermal imaging technology opens up a world of boating at night in safety.
Features:
- Visible Spectrum Camera with 30x Optical Zoom
- 4-in-1 User Selectable Video Format
- 1920 x 1080P (HD-TVI / HD-CVI / AHD Hi-Def Formats)
- Composite Video (CVBS) Format (Standard Definition)
- Miniature - Lightweight Compact Form Factor
- Dimensions 206mm x 160mmø / 2Kg Weight
- High Power Infrared LEDs - Up to 100m Range
- True Day/Night Operation with IR Cut Switch
- Side mount or Rear mount Waterproof Cable Connector
- Push Lock Quick Connector - IP66
- RS485 Serial Data Control / Pelco D Protocol
- Operates at +12VDC or PoE+ (IEEE802.3at / PoE A Standard)
- IP66 Environmental Rating
- Available in White, Black & Other Color Options
Technical Specifications:
- Camera Resolution - 1920 x 1080P (HD-TVI / HD-CVI / AHD Formats) / 960P (CVBS)
- Sensor - 1/2.8” High-Performance Low Illumination CMOS Sensor (IMX327)
- Focal Length - 4.7mm 141mm
- Image Enhancement - DWDR
- IR Range - 4 x High Powered Infrared Lamps, 2 Groups (Low Beam / High Beam) Brown Glass Filter, Infrared Distance up to 100m (328ft)
- Home Position - Supported
- Snapshot Storage - Optional - D1/720P/1080P (default)
- Cellular/WiFi/GPS - Optional
- Protocols - Serial Data: RS485 / Pelco D
- Power Requirements - +12vDC / 2000mA Max (IR ON) / 24W Max / PoE IEEE802.3at PoE+
Quick Guide (pdf)
Owner's Manual (pdf)
