Description

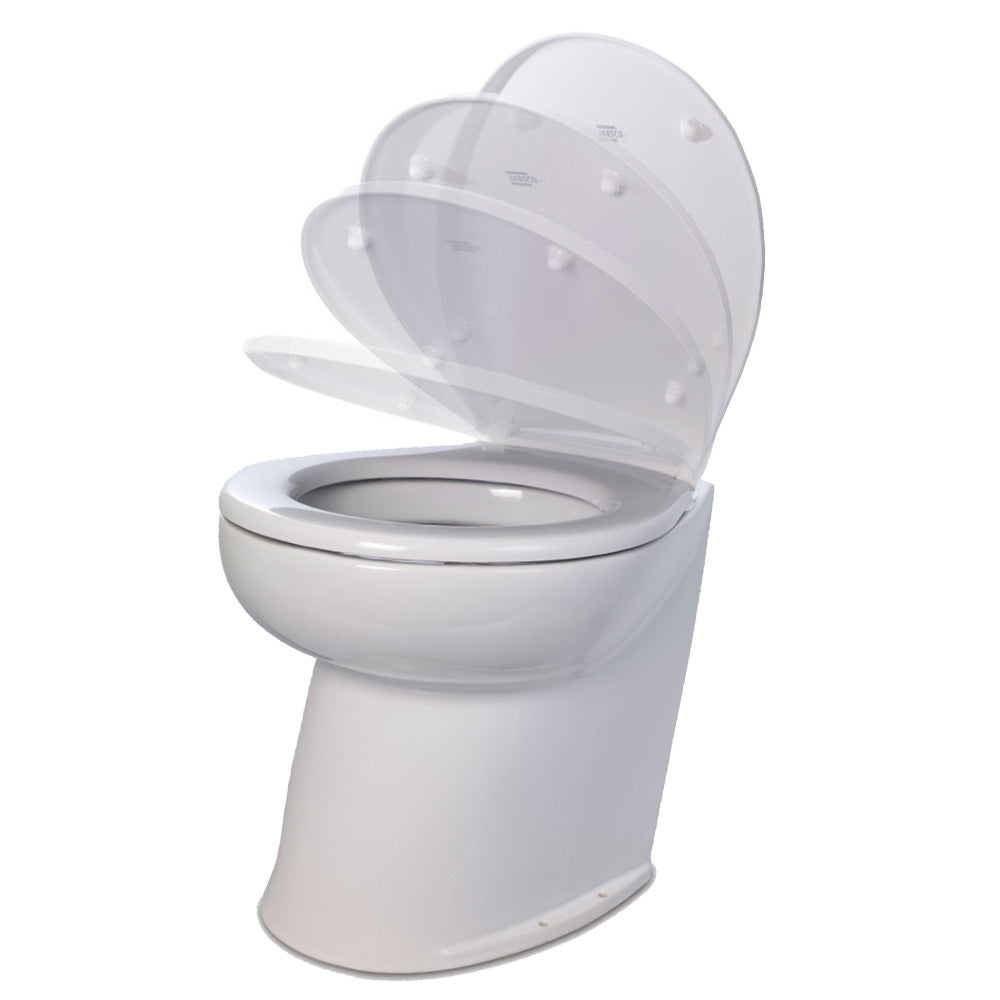

Deluxe Flush 14" Angled Back 24V Raw Water Electric Marine Toilet with Remote Rinse Pump & Soft Close Lid
You can experience all the comforts of home at sea with Jabsco Deluxe Flush electric marine toilet. Designed for the discerning owner looking for luxury and comfort, the Deluxe Flush portfolio features a space-saving, stylish design with minimal water usage and virtually silent operation.
Features:
- 14" Angled back
- Space-saving stylish design
- Household size soft closing seat
- Virtually silent operation
- Sea, river, or lake water rinse model
- Powerful non-clogging large bore flush pump macerates waste
Specifications:
- Bowl Size: Domestic
- Lid: Soft close
- Rinse Type: Raw water
- Rinse Pump/Solenoid Valve: Remote Rinse Pump
- Voltage DC: 24V DC
- Recommended fuse Size (AMP): 15
- Flush control Switch: 4-Button Touch Panel
- Height: (inch) 14.4” / (mm) 366
- Width: (inch) 14.8” / (mm) 375
- Depth: (inch) 17.7" / (mm) 450
- Weight: (LBS) 57.3" / (kg) 26
One-Touch Control Pad:
All Deluxe Flush marine toilets come complete with a multi-function, one-touch control pad. The control pad is supplied with a standard surface mount unit with a clean white bezel.
The control pad offers four options: fill, quick flush, flush, or empty. In addition, the owner can set the control at any time so that the bowl is always left either dry or wet after flushing. The recommended dry setting minimizes total water usage. If water usage is not a concern, the wet setting automatically fills the bowl after flushing, ready for the next user. Simultaneously holding down both the quick flush and flush buttons for 5 seconds switches between bowl always left dry and bowl always left wet modes.
Control Pad Options:
- Fill may be touched when the bowl is dry add 1 quart (1 liter) of water before use, if necessary
- Quick Flush first rinses and then empties the bowl after light use. On the dry setting, this uses less than 1 quart (1 liter) of water
- Flush rinses and empties the bowl twice after heavy use. If the bowl is dry, touching the fill before use is recommended. This uses just 2.5 quarts (2.5 liters) of water
- Empty does exactly what it says without adding any water, whenever desired. Even when the bowl appears to be dry, there is an anti-odor water lock in the pump housing
Rinse Options:
- Supplied with a remote-mounted, self-priming pump to bring in sea, river, or lake rinse water
- Complete with a Jabsco Pumpgard strainer
Specifications:
- Color: White
- Operation Method: Electric
- Rinse Water: RAW
- Volts: 24
Owner's Manual (pdf)
