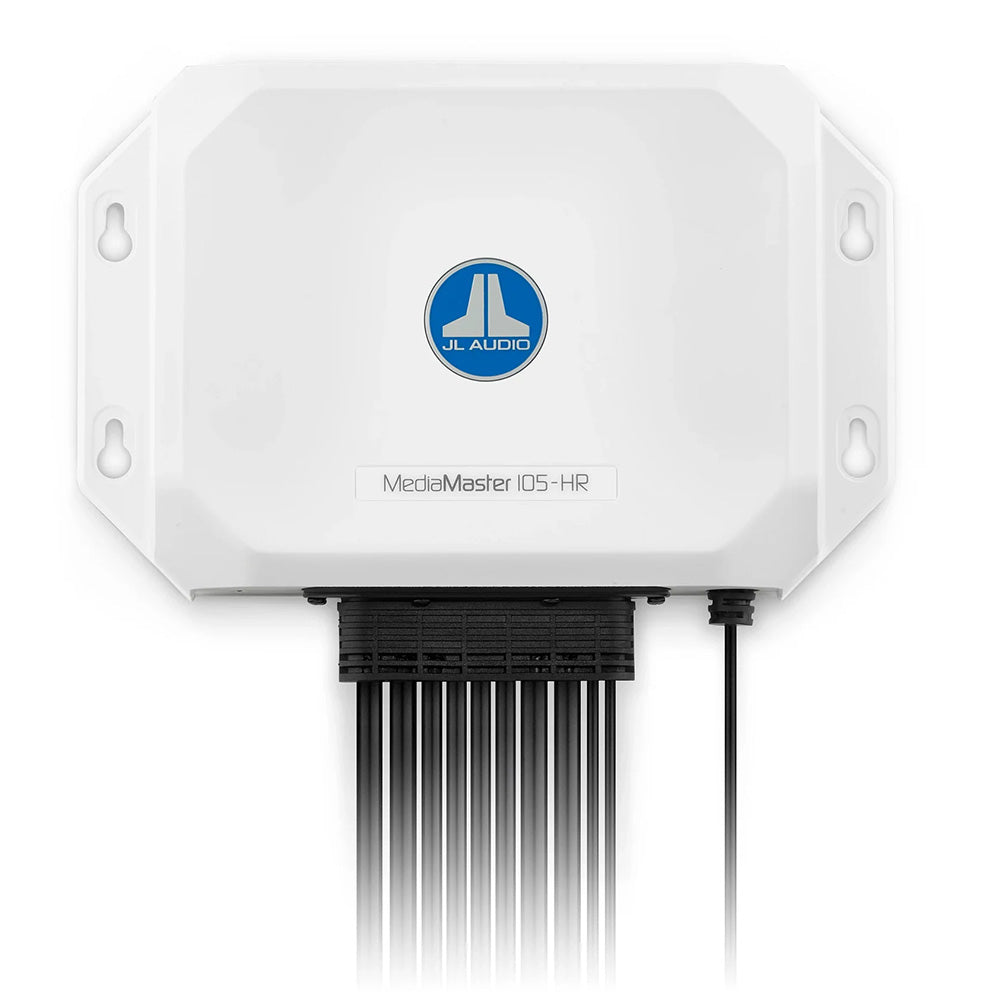

MediaMaster® 105-HR Premium Hidden Source Unit - MM105-HR
Engineered to operate behind the scenes as a hideaway receiver, the MediaMaster® 105-HR includes all features of the MM105, minus the LCD and physical controls. This full-featured, concealed source unit delivers top-flight sound performance and advanced audio features specifically designed for marine applications. Outfitted with NMEA-2000® connectivity, the MM105-HR can be controlled by your Garmin, Lowrance, Raymarine, or Simrad Multi-Function Display (MFD) or MMR-40 NMEA 2000® Network Controller (sold separately).
Because sound quality is our top priority, the MM105-HR is not equipped with an internal amplifier designed to drive loudspeakers directly. Instead, it offers twelve channels of audiophile-quality, preamp-level outputs to deliver crystal-clear signals to high-quality marine amplifiers. These are deployed via four configurable, nameable audio zones, each with its own set of independent control options, making the MM105-HR adaptable to a wide range of system types. On-the-fly, level controls make adjusting each or all audio zones a breeze, while a useful volume limit feature ensures that nobody gets blasted inadvertently. All zones feature our Zero-Clipping audio circuit design, with self-limiting tone controls to keep the audio clean at high listening levels, reducing the likelihood of speaker damage.
Features:
Two Certified NMEA 2000® Control Options
- NMEA 2000® MFD Control - Use your compatible Multi-Function Display from Garmin, Simrad, Lowrance, or Raymarine (refer to MFD manufacturer for compatibility info)
- MMR-40 NMEA 2000® Network Controller (sold separately) - Full-function, water-resistant (IP66 rated) controller with full-color LCD
Complete command of your marine listening experience:
- 12-channels of audiophile quality, 4V RMS preamp level outputs
- Four separate audio zones, each with independent feature/control options:
- Volume: control all zones or individual zones, at any time. A fixed output mode is also available.
- Tone Controls: Bass, Midrange, Treble, and Balance can be operated independently or linked with Zone 1
- Subwoofer Outputs: each zone has its subwoofer output, with built-in, selectable low-pass crossover (Off/60/80/100 Hz)
- Customizable zone names for ease of operation
- Volume Limit: set a maximum allowable volume level for each zone
- All zones feature our zero-clipping audio circuit design, with self-limiting tone controls to prevent speaker system damage.
Built for today's modern media with multiple connectivity options
- Available Digital HD Radio™ (North America) and DAB+ Radio (Europe) tuners for the best in broadcast sound quality and selection
- Global AM/FM radio tuner with RDS (Radio Data System), to display extended FM program info, where available
- SiriusXM-Ready™ (tuner, antenna, and subscription sold separately)
- 24 Favorites: store up to 24 of your favorite channels for quick access, across all tuner bands, including Sirius/XM
- Bluetooth® audio streaming with Qualcomm® aptX™ for maximum audio fidelity with compatible devices
- USB1 and USB2 direct-digital connections access music files on your compatible iPhone® or USB storage device; includes 1A and 500mA charging outputs
- AUX1 and AUX2 inputs accept analog audio signals from a variety of audio sources
- Certified NMEA 2000® Connectivity - MFD (Multi-Function Display) vessel control functionality using applicable network cables and connectors (sold separately).
