Description

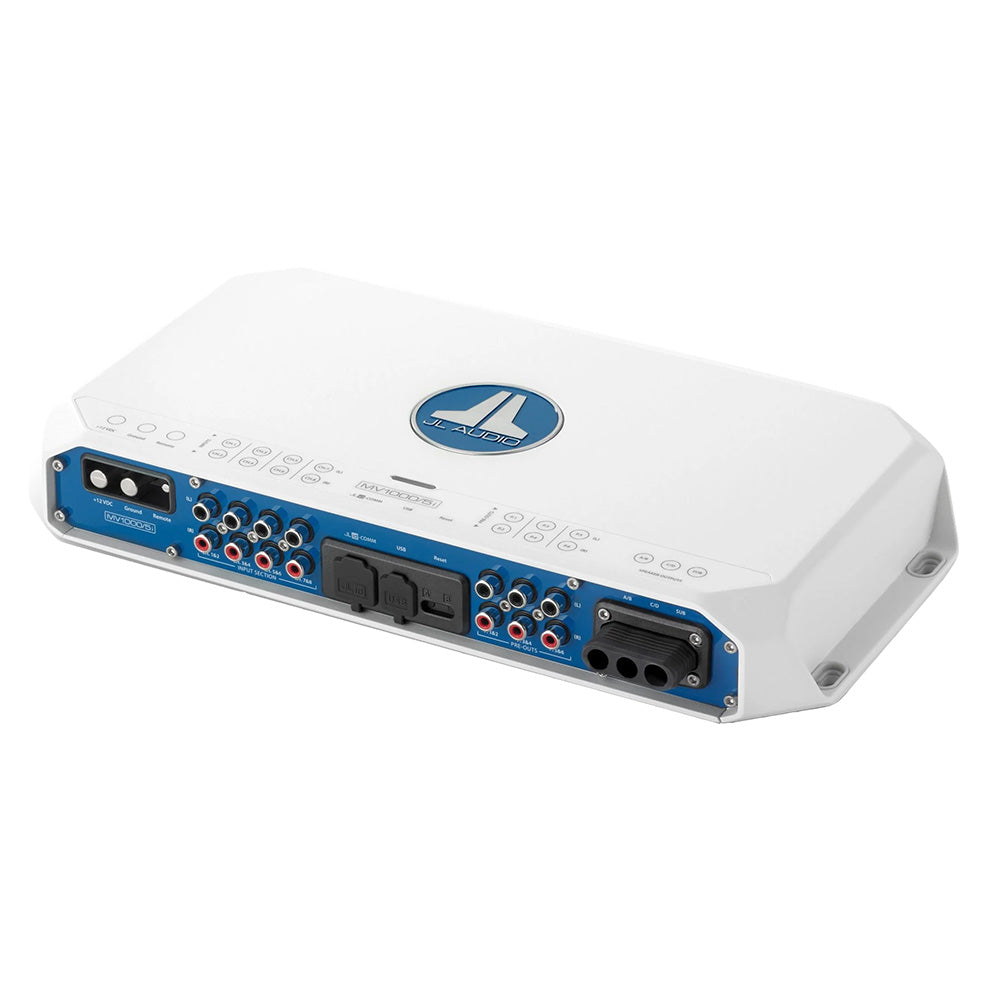

MVI Series 1000w 5 Channel Amplifier with Integrated DSP - MV1000/5i
100 W x 4 @ 2 Ω + 600 W x 1 @ 2 Ω - 14.4V
Engineered to deliver reference-grade audio performance in marine environments, every MVi amplifier unites our cutting-edge NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.
Equipped with our second-generation NexD2™ technology, the MV1000/5i is capable of powering a complete marine audio system. It can drive four main speakers with 75 W x 4 @ 4 ohms, while also powering a subwoofer with up to 600W @ 2 ohms. Bridging the main channels transforms it into a very powerful, 3-channel system amplifier with up to 200W x 2 @ 4 ohms on the main channels and 600W @ 2 ohms on the subwoofer channel.
The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise, and exceptional efficiency. Housed in a compact, cast alloy chassis with a marine-grade powder coat finish, the MV600/2i is outfitted with corrosion-resistant hardware and connectors.
Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet, or Smartphone), with the appropriate JL Audio TüN® Software application installed.
The amplifier includes a power Connector (for 4 AWG wire), Speaker Output Harnesses (2), a 6 ft A/B USB Cable
Features:
Unprecedented, Onboard DSP Tuning Power!
- Powerful DSP permits optimizing each channel’s timing, frequency response, and output levels, for exceptional sound quality.
- TüN™ Software delivers fast and easy setup, at your fingertips. Make all adjustments with a clear interface. Free TüN™ software is available for computers and most handheld devices.
2nd-Gen NexD2™ Switching Amplifier Technology
- Advanced, high-speed switching technology delivers reference-grade power and efficiency.
- DSP-synchronized power supply and output channels produce world-class sound quality with very low noise and distortion.
Ultra-Versatile Analog and Digital Inputs/Outputs
- Differential-Balanced Analog Inputs accept a wide range of signal levels (up to 16V RMS), offering outstanding noise rejection for clean, clear audio.
- Analog Pre-Outs, with fully independent DSP processing, allow sharing DSP capabilities with other amplifiers in the system (4V RMS Max)
JLid™ System Command and Control with Networking Capabilities
- Proprietary JL Audio protocol provides control interface and all communication for VXi amplifiers and optional JLid™ accessories, including:
- VXi-BTC Bluetooth® Communicator: Adds wireless connectivity for amplifier configuration from a compatible iOS® or Android® device.
- M-DRC-50 (Digital Preset Controller): Offers convenient activation of up to six DSP presets from the helm.
- MVi-HUB JLid-COMM and Network Hub: Provides network connectivity for up to six MVi amplifiers (one master and five slave amplifiers) for full-system DRC control and Preset selection.
Owner's Manual (pdf)
