Description

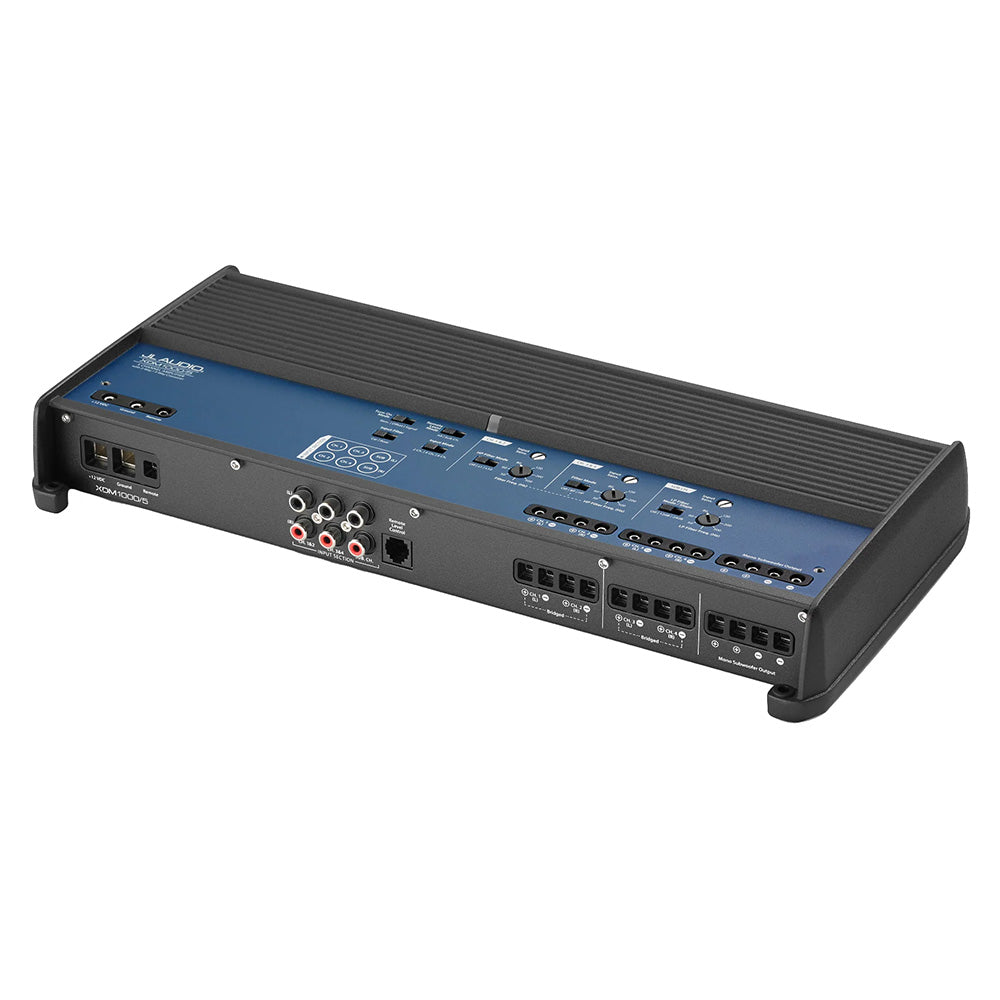

XDM Series 1000w 5 Channel Amplifier - XDM1000/5
100 W x 4 @ 2 Ω + 600 W x 1 @ 2 Ω - 14.4V
The XDM1000/5 delivers up to 1000 W of clean power and is ideal for an audiophile-grade, subwoofer + four satellite system. With this potent powerhouse, you can drive two pairs of quality component speaker systems with plenty of clean power (75 W x 4 @ 4 Ω), while also generating a stout 600 W of power for a subwoofer system. The technology that makes this much power possible in such a small chassis is our high-speed NexD™ switching amplifier design.
Suitable for car or boat installations, the XDM1000/5 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
The XDM1000/5 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of all amplifier channels or just the subwoofer channel directly from the driver's seat or helm.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Arco A 275 alternator is almost a perfect fit on a yanmar 4jh3e. Installed with balmar pulley kit . Easy install and fast charging .n more belt dust covering everything.
ARCO Zeus A275L Alternator
Conan Disney
Providing a lot of power.
3@405 watt rec panels on top of Bimini with 2@ Hyundai bifacials on top of Atlantic tower. 1x2 “ anodised aluminum used for supports . Each panel has their own mppt charge controller due to the amount of Shade on my sailboat.panels are providing a lot of power.
REC Alpha Pure – 405w Solar panel
Conan Disney
ARCO Zeus regulator is performing great.
Instalation instructions where easy to follow.
The Zeus can be adjusted with the app to adjust the charging parameters.
Enclosed picture of gx device show a lot of solar going into batteries so the Zeus is providing enough amps to max out 300 amps going into batteries. If I was using more ac devices the alternator will increase output . Temperature sensor included with Zeus allows it to reduce output until alternator cools down.
ARCO Zeus Alternator Regulator- Standard
Conan Disney
Cools boat down quickly
Mabru air conditioner is great improvement from my old model. Cools boat down quickly. Easy install. I run this 17k unit of my 12/100/3000 ,victron invertor. Sometimes the solar panels will provide enough power for air conditioner ,2 fridges and all other loads.
MARINE AIR CONDITIONER SC17VI 17000 BTU 115/230v Self-Contained BY MABRU
Conan Disney
Modular Rainman watermaker installed in separate locations
Modular Rainman watermaker installed in separate locations. The motor and pump fit well under nav table seat ,membranes fit below forward bed. I made 80 gallons of water whilst motoring into port royal sound s.c. My victron 12/120/3000 invertor had no trouble running it .
The water produced was 200ppm. About the same as my city water filtered through Brita pitcher.
