Description

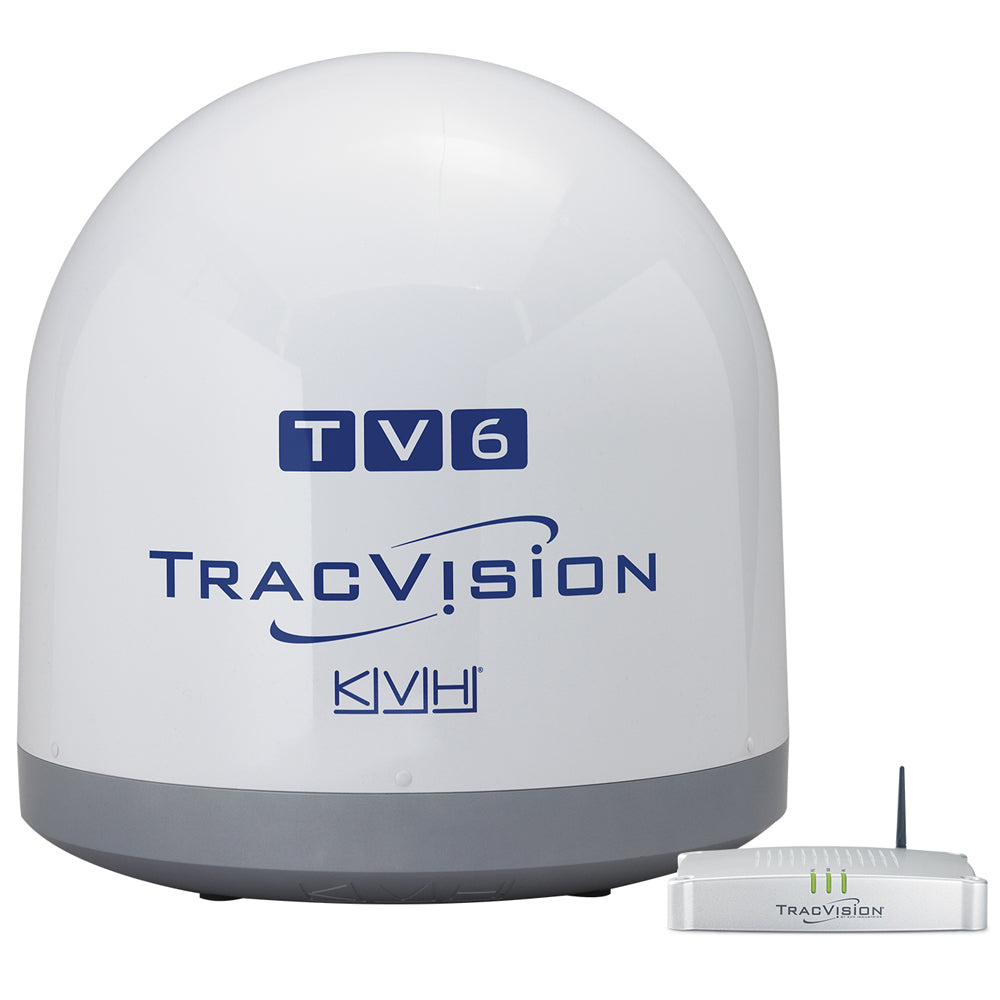

TracVision TV6
Enjoy Your Favorite Television Programming - Everywhere You Cruise
Perfectly suited for short or long voyages, the TV6 provides commercial-grade performance and an extended coverage area. The 60 cm (24-inch) antenna features easy single-cable installation. DVB-S2 compatible; supports DIRECTV U.S. and Latin America, DISH Network, Bell TV, and circular and linear Ku-band services worldwide; HDTV compatible (Ku-band services only). |
Advanced Technology from the Leader in Marine Satellite TV
KVH, the leader in marine satellite television for 20 years, has integrated the latest advancements into the TracVision TV6, a versatile system that supports DIRECTV® U.S., DIRECTV Latin America, DISH Network®, Bell TV, and circular and linear Ku-band services worldwide:
- TracVision TV-Hub, a sleek IP-enabled belowdecks unit with easy user interface that provides system information from any Wi-Fi mobile device or computer
- Exclusive RingFire™ antenna technology for stronger signals, wider geographic coverage, and better reception
- Advanced inertial-based stabilized search for fast satellite acquisition
- High performance tracking with advanced algorithms for crystal-clear television picture in heavy seas
Highlights
- Ultra high-efficiency, 60cm (24") diameter antenna features proprietary RingFire technology for stronger signals, wider geographic coverage, and better reception
- Supports DIRECTV U.S., DIRECTV Latin America, DISH Network, Bell TV, and circular and linear Ku-band services worldwide
- Supports multiple receiver installations
- Linear Universal Quad LNB configuration offers built-in GPS and autoskew
- Tri-Americas LNB option for seamless TV throughout the Americas
- Sleek IP-enabled TracVision TV-Hub delivers easy setup and operation, and easy user interface for system information from any smartphone, tablet, smart TV, or computer
- HDTV compatible (Ku-band services only)
- Integrated Single Wire Multiswitch (SWM-8) built into belowdecks TV-Hub supports up to 8 DIRECTV receivers
- Single coaxial cable for power, data, and video enables easy installations and retrofits
- DVB-S2 compatible
- Advanced inertial-based stabilized search for fast satellite acquisition
- High performance tracking with advanced algorithms for crystal-clear television picture in heavy seas
- Built-in worldwide satellite library
- IP AutoSwitch option for multiple receiver installations - for simple auto-switching on Dish Pro and DiSEqC-compatible services
- World-class warranty coverage and support
Exclusive Technology
TracVision TV-Hub
The innovative TracVision TV-Hub integrates the advanced functionality of the TV-series system into one streamlined unit:
- IP-enabled antenna control unit with Ethernet connection and built-in Wi-Fi interface allows access to system information from any Wi-Fi device
- Automatic satellite switching makes it easy to access all programming and local channels wherever you travel, and with whatever service you use
- Built-in SWM-compatible technology supports DIRECTV programming
- Built-in DISH Pro output supports DISH Network and Bell TV service
- Built-in DiSEqC protocol supports linear TV services around the world
- Two output ports provide the flexibility to use legacy receivers and expand SWM capability
- Status indicators quickly convey information about antenna function and power
- 10-30 VDC input provides power to the TV-Hub, which in turn provides power to the antenna
- NMEA 0183/2000 input for heading and GPS enable fastest satellite acquisition
Specifications:
- Dome Weight (lbs): 55 lbs
- Service Coverage: DirecTV, Dish
- Voltage - Input Range (Volts): 10-30v
- Antenna Dish Diameter: 24
- Box Dimensions: 31"H x 35"W x 36"L WT: 65 lbs
- UPC: 028327011820
