Lectrotab XKA Stainless Steel Trim Tab Kit w/MLC-1 Control - 9 x 18

XKA Stainless Steel Trim Tab Kit with MLC-1 Control - 9 x 18

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket.

The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button.  It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 18" (23 x 46 cm)
• Boat Length - 21' to 30' (6.5 to 9 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length  - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

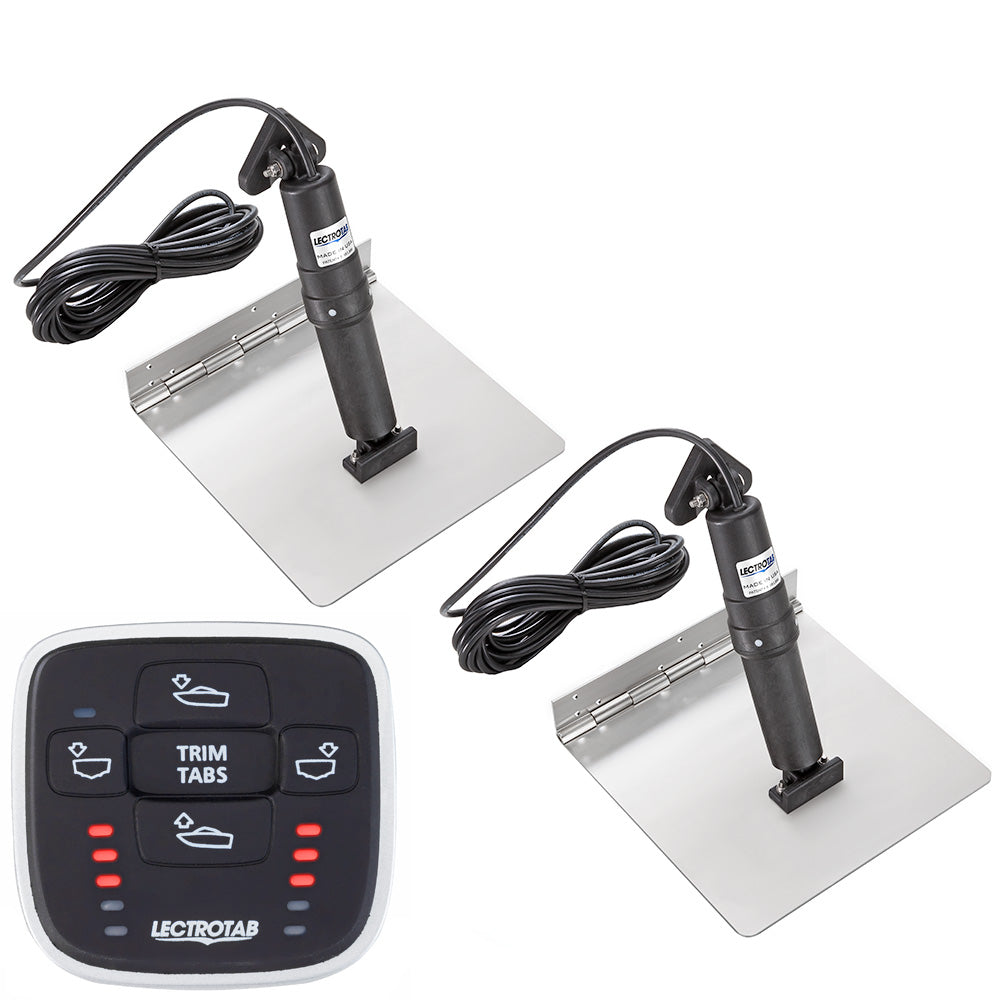

In the Box:

• One (1) Manual Leveling Control
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

Specifications:

• Actuator Type: Electro-Mechanical
• Construction: Stainless Steel
