Description

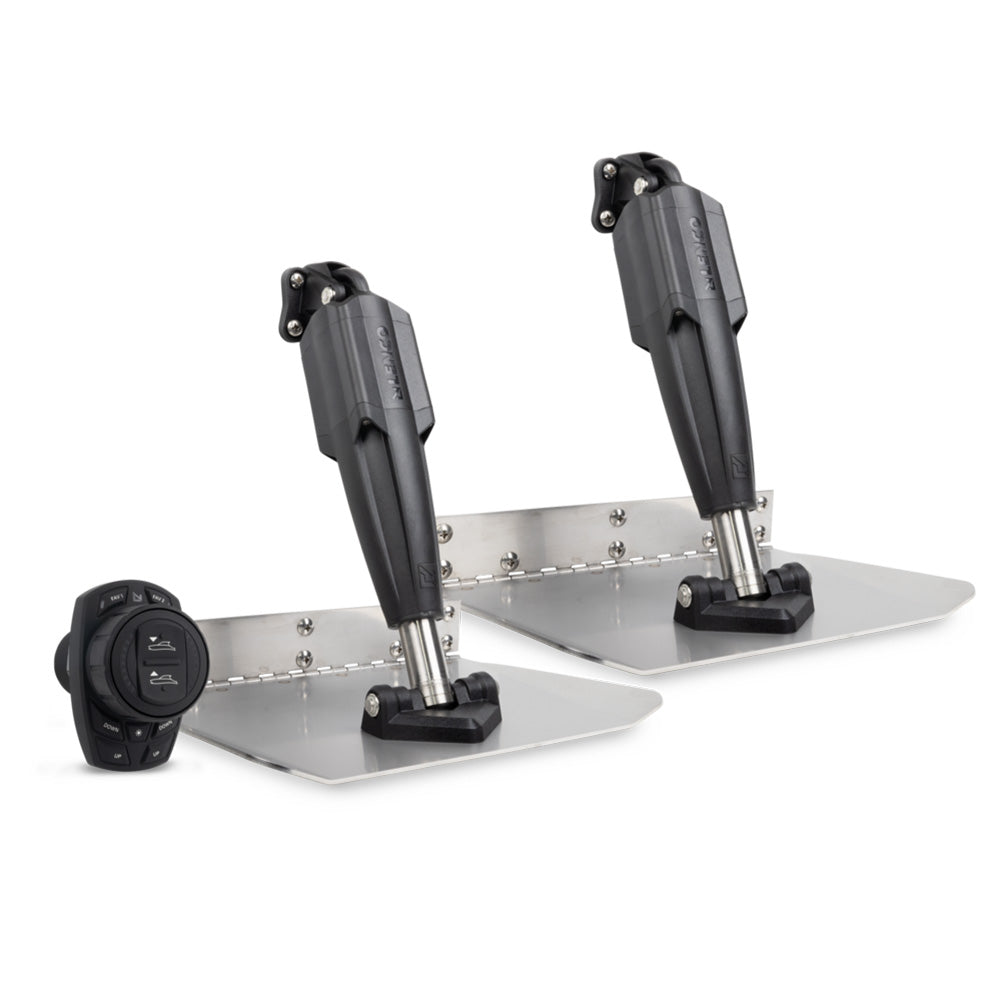

9"x12" STD Trim Tab Kit with Pro Control™ Assist
Features:
Industry-leading connectivity - CAN-based protocol comes as standard, meaning ease of system integration and installation.
Ease of use – precise control - Smart, sleek intuitive dial controller, designed to provide responsive precision controls.
Instant access to favorite settings - Programmable memory position recall capabilities allow access to your two preferred trim tab settings at the touch of a button.
Hands-free holeshot - Speed-based automatic deployment of the trim tabs – engage throttle and tabs deploy to get the boat on the plane quicker, plus automatic retract at slower speeds with no manual operation required.
Built to last - Best-in-class 5-year warranty gives peace of mind to both boatbuilders and end users. Simple maintenance extends lifespan.
Specifications:
Length x Width: 9"x12"
Boat Length: 16'-25'
Hinge Height: 2" (5.1cm)
Minimum Transom Height: 14" (35.6cm)
Keypad: Assist
Kit Includes:
(1) Pro Control Assist Keypad (15175-106)
(2) 12-gauge 304 (2.7 mm) stainless steel standard finish blades:
Standard blades - with a 5/8" (1.6 cm) flared trailing edge.
Edge Mount blades - with 1" (2.5 cm) turned-up edges a 5-degree taper on both sides to the trailing edge) and a 1/8" (3.2 mm) diameter hinge pin.
(2) 2.25” Stroke SD Pro Actuators, 11.5” pin to pin (15189-001)
(5) Micro C Tee Connector (30267-001D)
Micro C Power Cable with Fuse and Ground (15197-101)
(2) 6’ (1.82 m) Micro C Drop cables (15199-101), (1) 25’ (7.62 m) (30269-004) Micro C Drop cable
(2) 6 Pin Deutsch to Micro C Actuator Network Adapter Cable (30377-001)
(2) 3' (.91 m) Pro Control Actuator Power Pigtail (30378-001)
(1) Wake Signal Adapter for Non-Mercury Systems (15207-101)
(2) Corrosion proof Upper Mounting Brackets with gland seal (15193-101)
