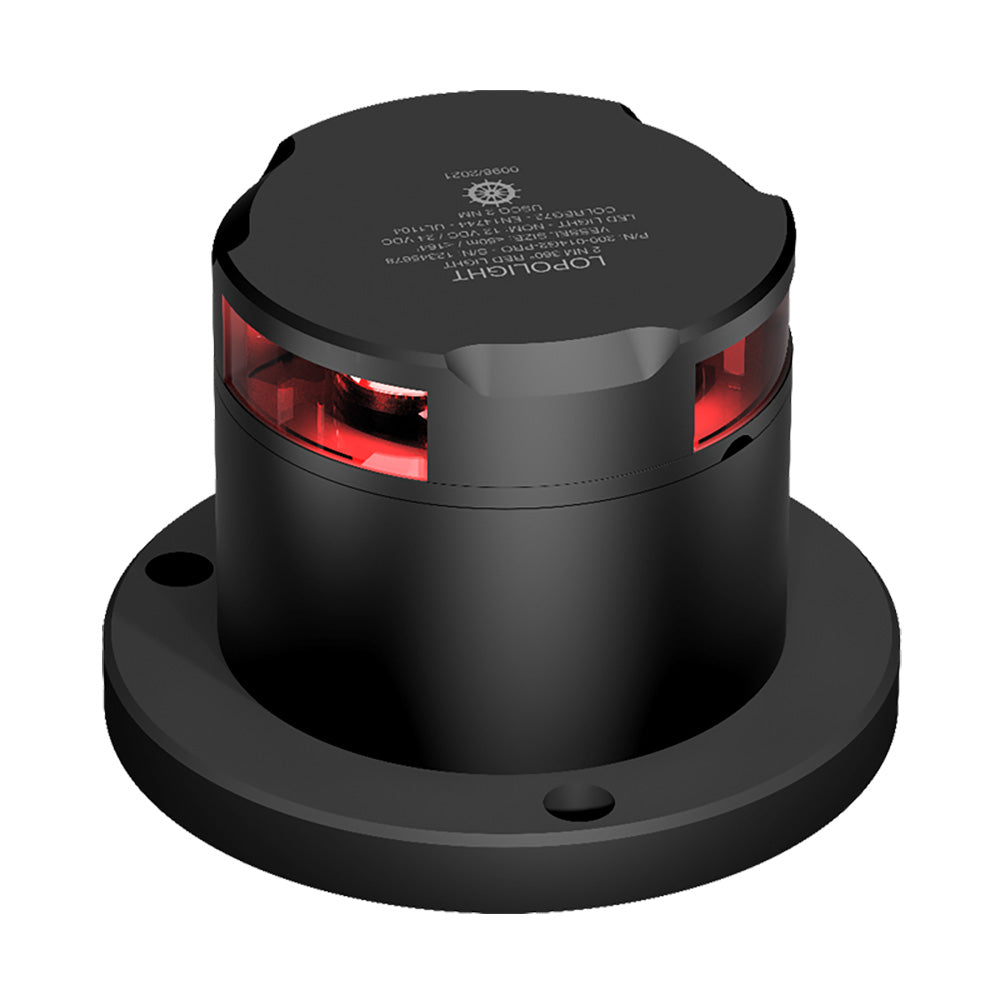

3nm 360° Red Ice-Class Black Anodized Light
Features:
Built-in De-icing function
Horizontally mounted on 400-037 alu base (IP68)
Cable direction side
Includes HDPE base plate
Quality cable glands - 3 sizes included:
9-17mm (3/8"-11/16") cable diameter
7-13mm (1/4"-1/2") cable diameter
4.5-10mm (5/32"-3/8") cable diameter
Specifications:
Certification: This Navigation Light is certified by DNV, the Declaration of Conformity, and the certificates can be found on www.lopolight.com under Support. This Navigation Light conforms to USCG Commandant instructions M16672.2.
Compliant with relevant sections of: MIL-STD-461G, - MIL-STD-901E, - MIL-STD-167-1A, - MIL-STD-1399/300-1
Intensity: >15cd
Dimensions imperial: Ø3.6" x 3.5"
Approved to: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Visibility: 3nm
Operating temperature: -60°C to 55°C
Mounting: Horizontal
Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Operating Voltage: 20-32VDC
EAN: 5704438012448
IP rating: IP68
Power draw (W): 2,9
Connection: Plug connector
Current consumption (mA @ 12VDC): 210
Current consumption (mA @ 24VDC): 120
Vessel size: Over 50M
Min. feed wire gauge: 1.5mm2 AWG18
Weight (Kg): 1.14 Kg
Weight (Oz): 40.21 Oz
Quick Guide (pdf)
