Lopolight Masthead/360-Degree Light - 3NM - Black Housing w/FB Base

Masthead/360-Degree Light - 3NM - Black Housing with FB Base

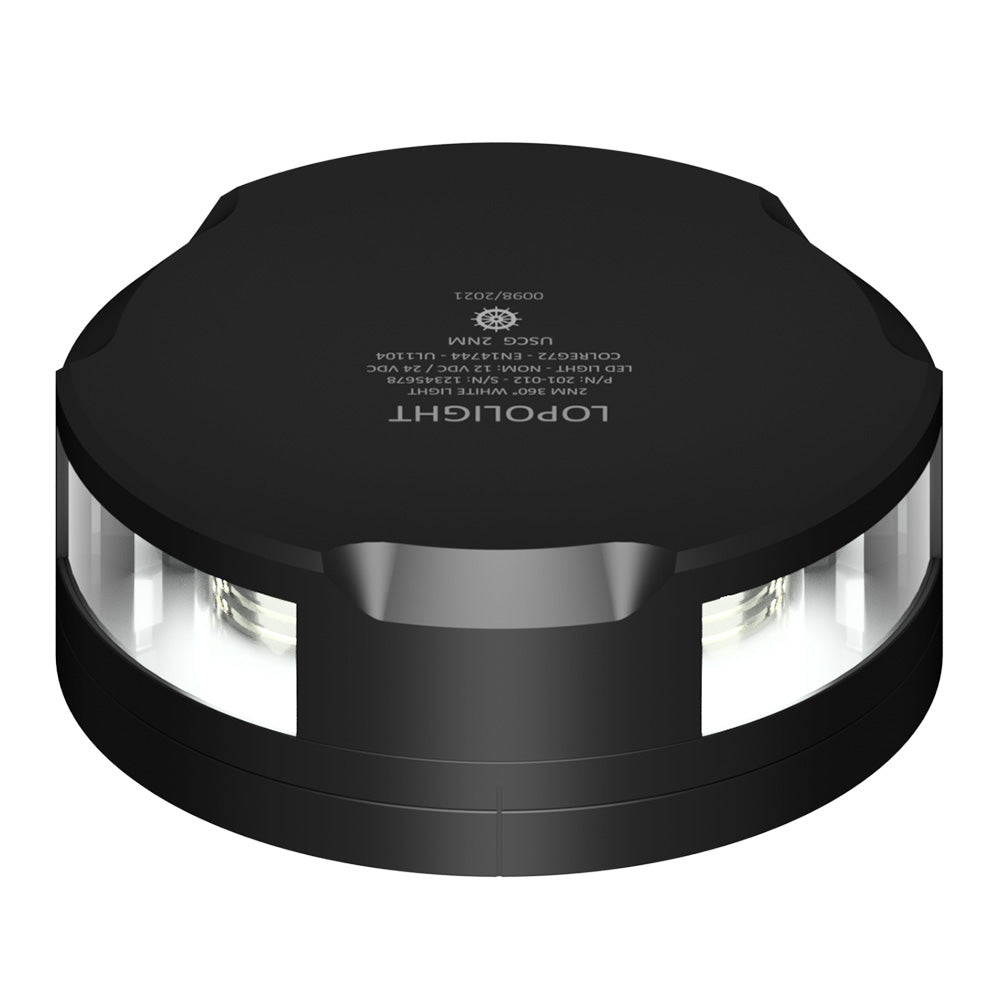

This white 360-degree/masthead light has a black housing, is horizontally mounted, and has a three-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Black anodized aluminum housing
• 0.75m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438043534
• Min. Feed Wire Gauge: 0.5mm2 AWG22
• Light Color: White
• Visibility: 3NM
• Included In the Package: 1 Navigation light, pre-cabled with 0.75 meter shielded marine grade cable and installation guide
• Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• IP rating: IP68
• Connection: 0.75m cable
• Current Consumption (mA @ 24VDC): 148
• Current Consumption (mA @ 12VDC): 300
• Dimensions Metric: Ø92.5mm x 36mm
• Dimensions Imperial: Ø3.6" x 1.4"
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 3.6
• Vessel Size: Under 12-20 meters

Specifications:

• Housing: Black
• Visible Range (Miles): 3NM
• Voltage - Input Range (Volts): 10 - 32
• Box Dimensions: 4"H x 4"W x 4"L WT: 1.4 lbs
