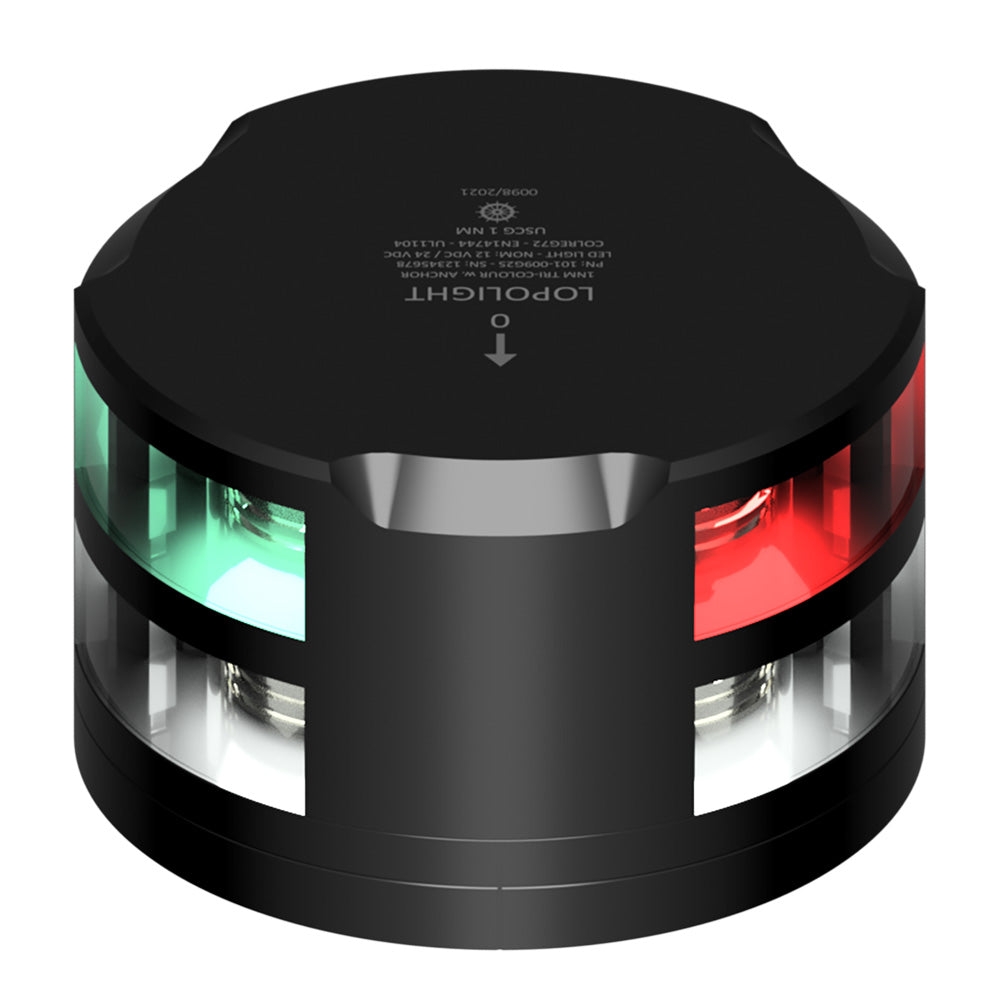

Lopolight Tri-Color Anchor Light - 1NM - Black Housing w/FB Base

Tri-Color Anchor Light - 1NM - Black Housing with FB Base

This black tri-color anchor light is horizontally mounted and has a one-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Black anodized aluminum housing
• 0.75m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438042698
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: Red, green, and white
• Visibility: 1NM
• Included In the Package: 1 Navigation light, 0.75 meters shielded marine grade cable, and installation guide
• IP rating: IP68
• Connection: 0.75m cable
• Current Consumption (mA @ 24VDC): 81
• Current Consumption (mA @ 12VDC): 150
• Dimensions Metric: Ø92,5mm x 68mm
• Dimensions Imperial: Ø3.6" x 2.6"
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 2.6
• Vessel Size: Under 12 meters

Specifications:

• Housing: Black
• Lens Color: White/Red/Green
• Visible Range (Miles): 1NM
• Voltage - Input Range (Volts): 10 - 32
