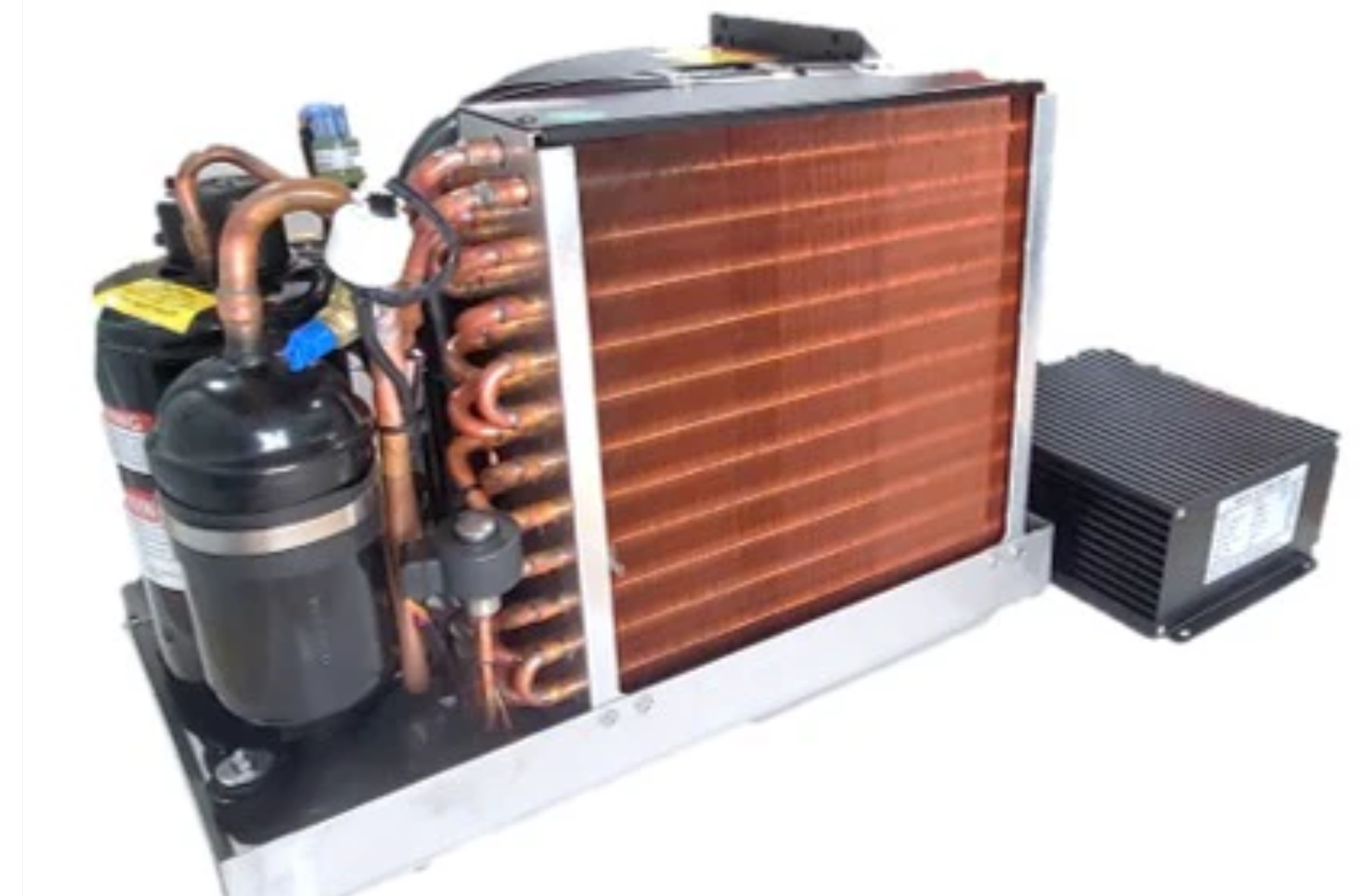

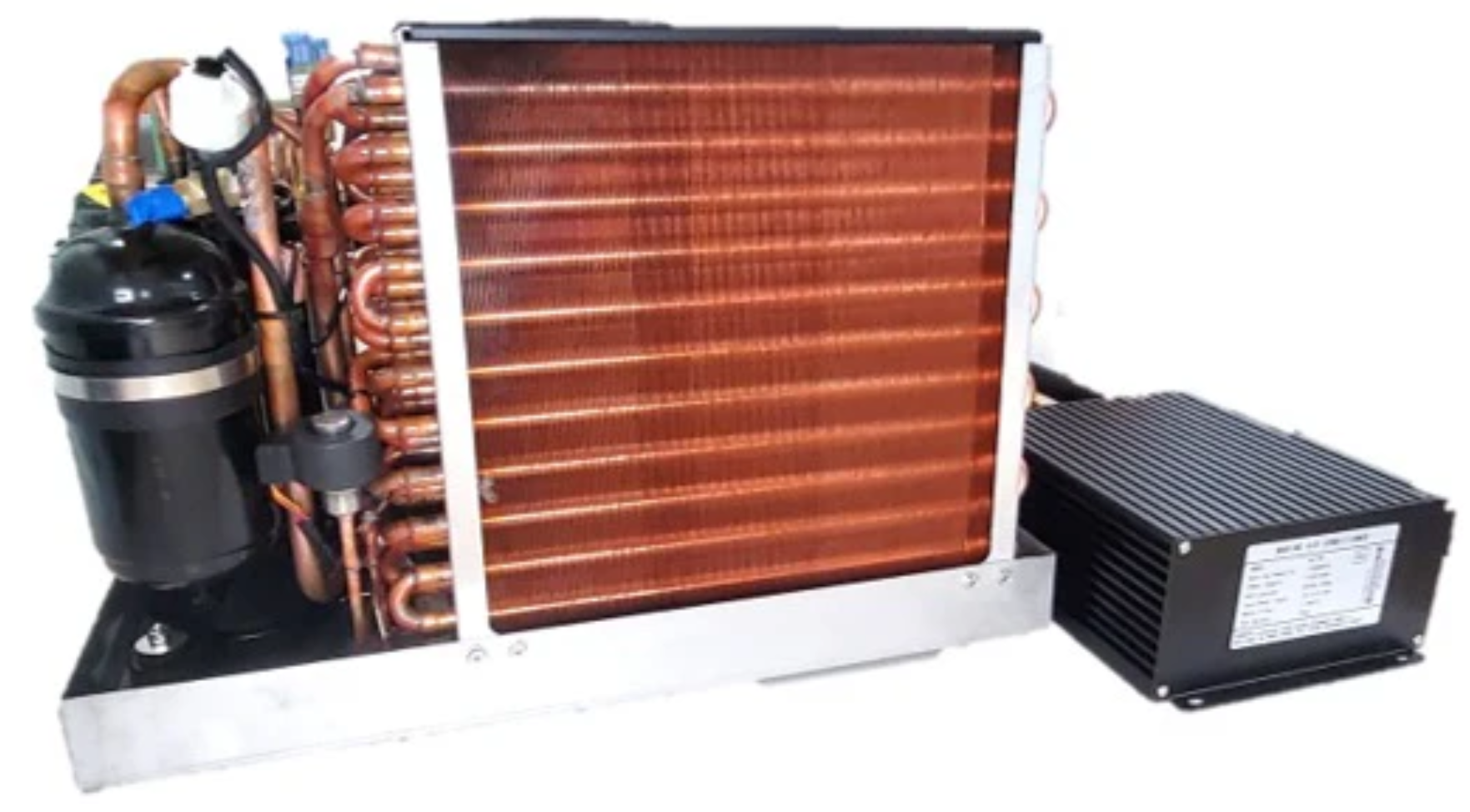

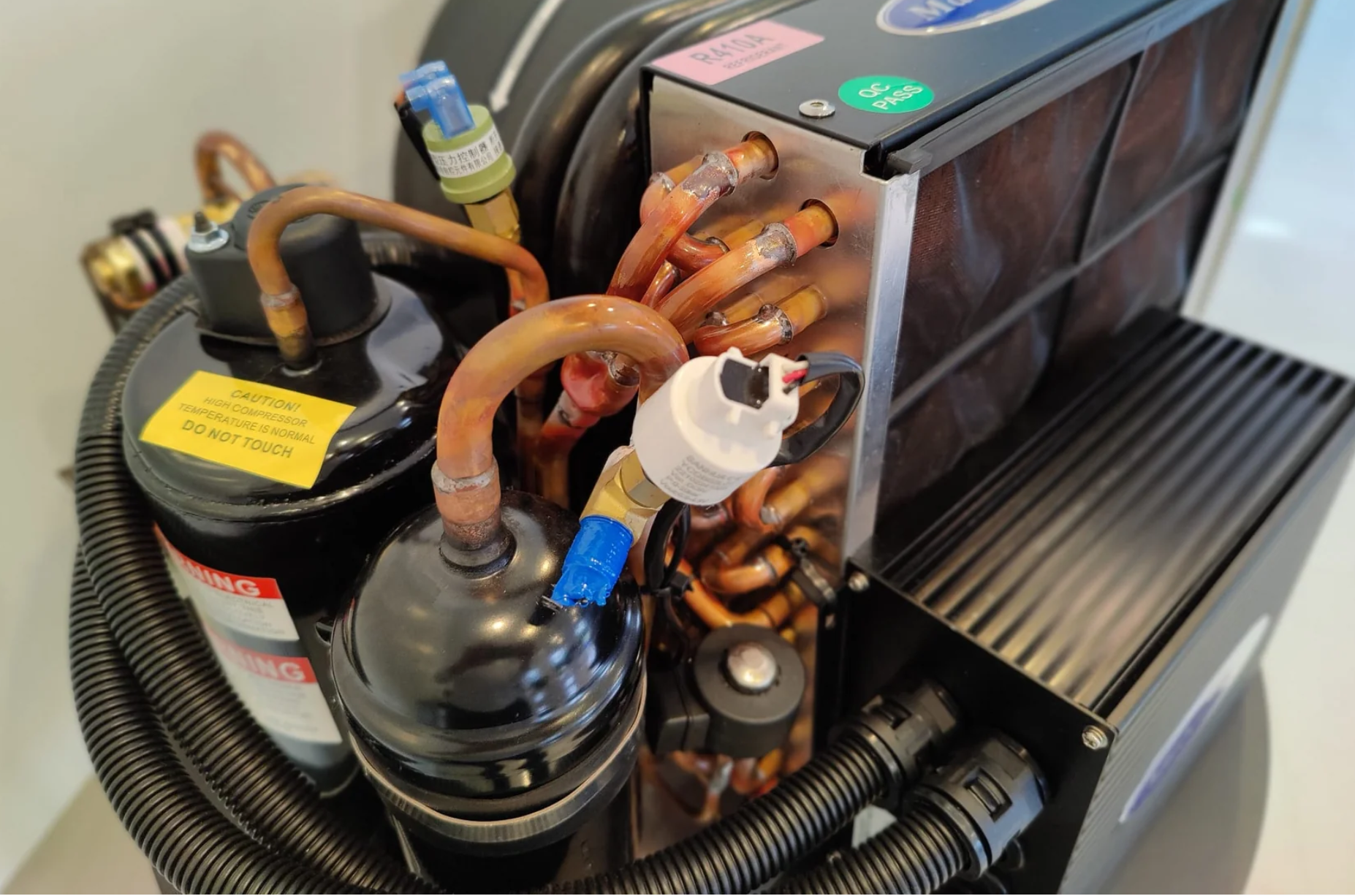

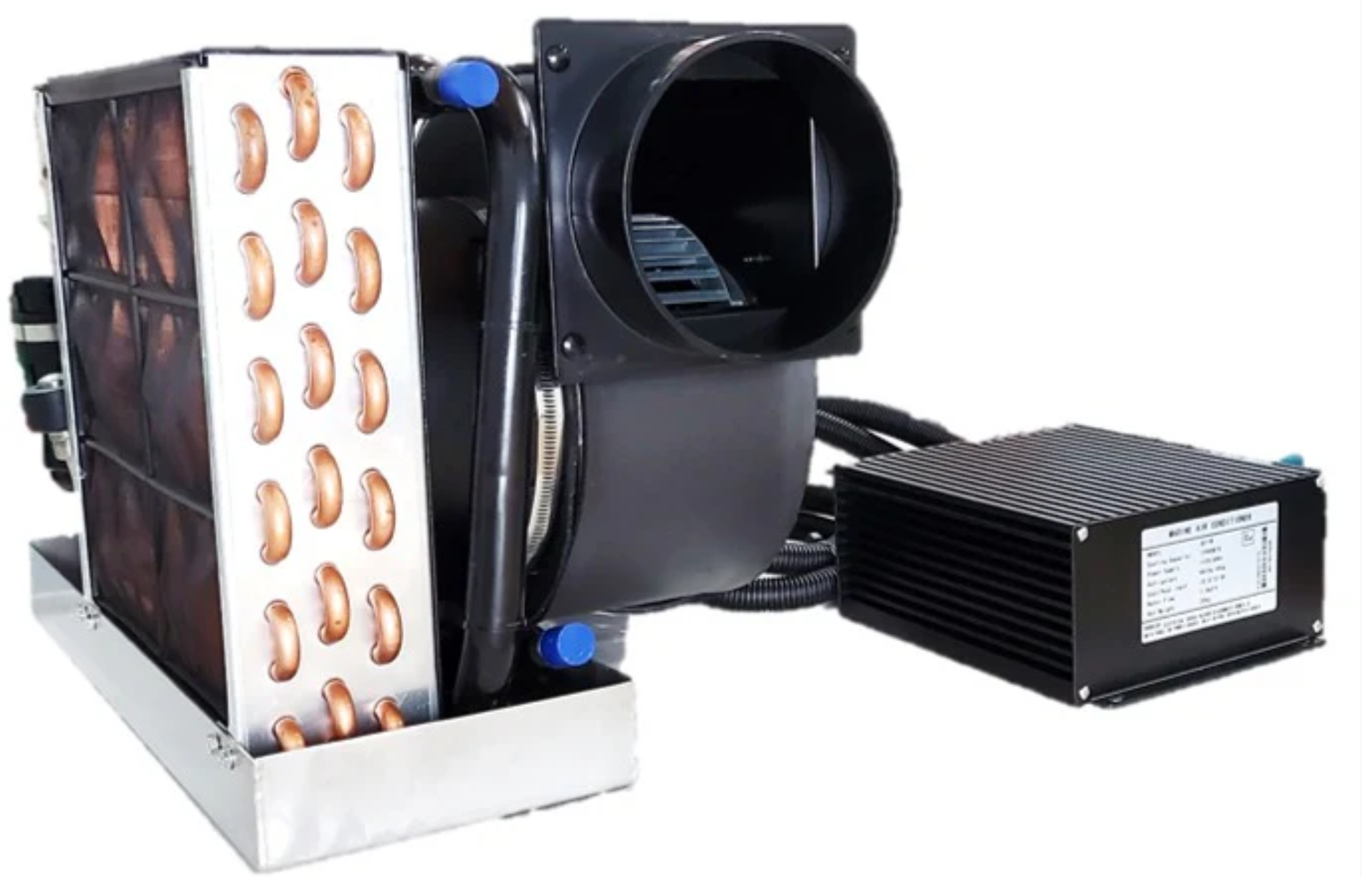

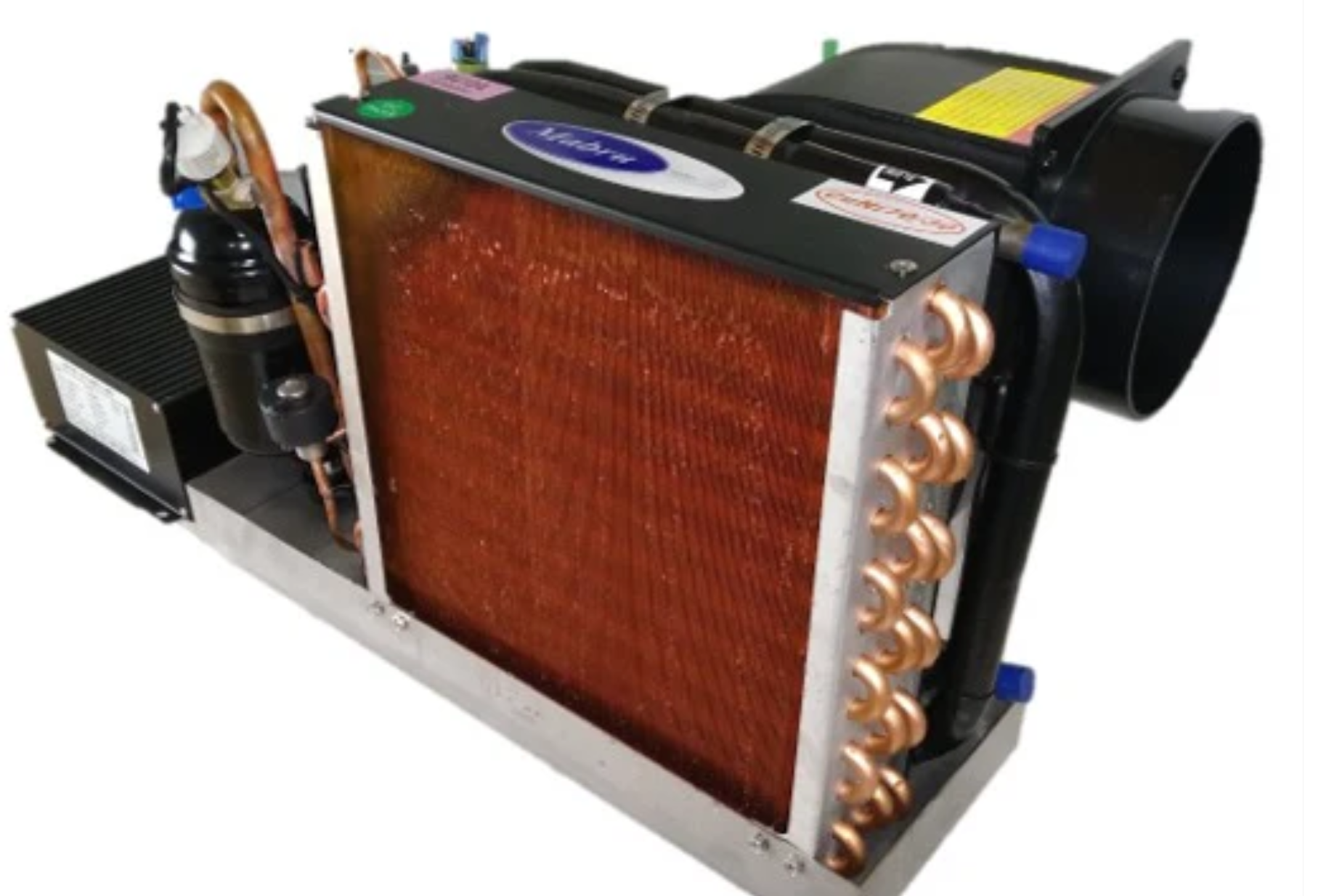

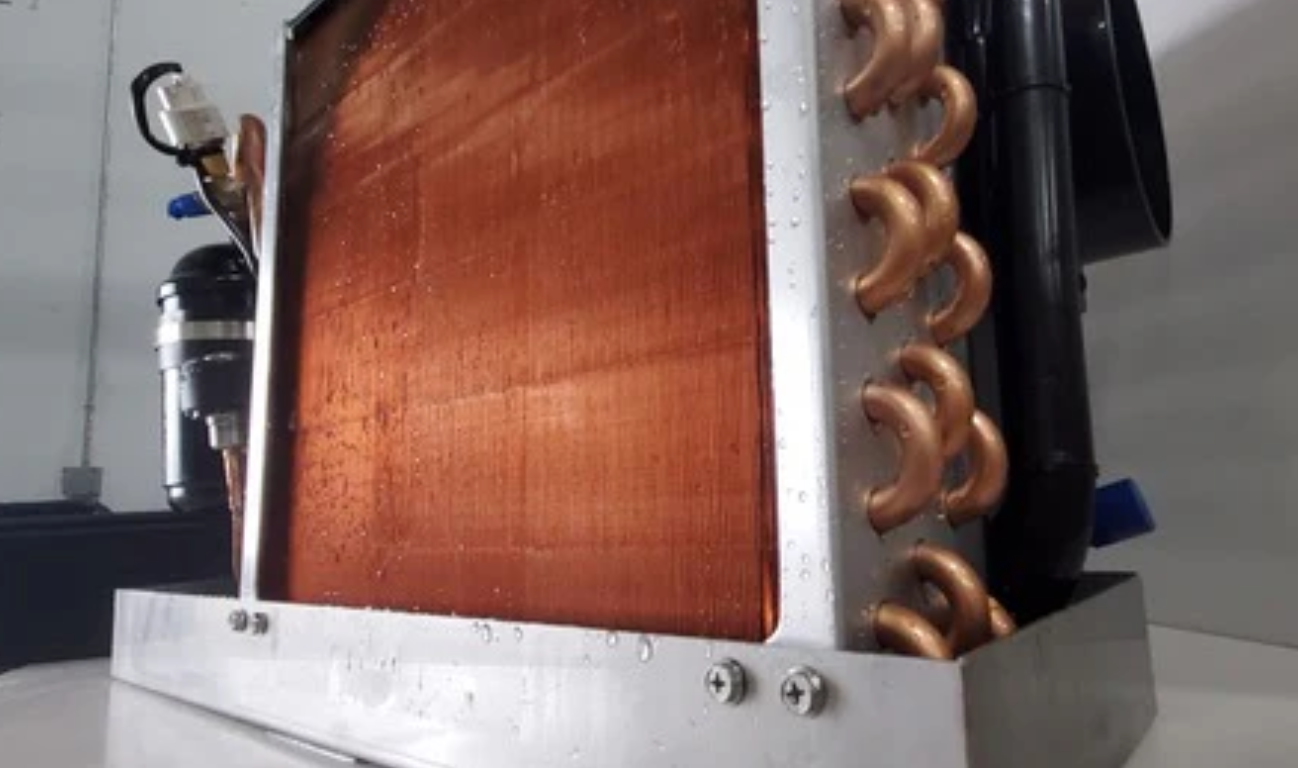

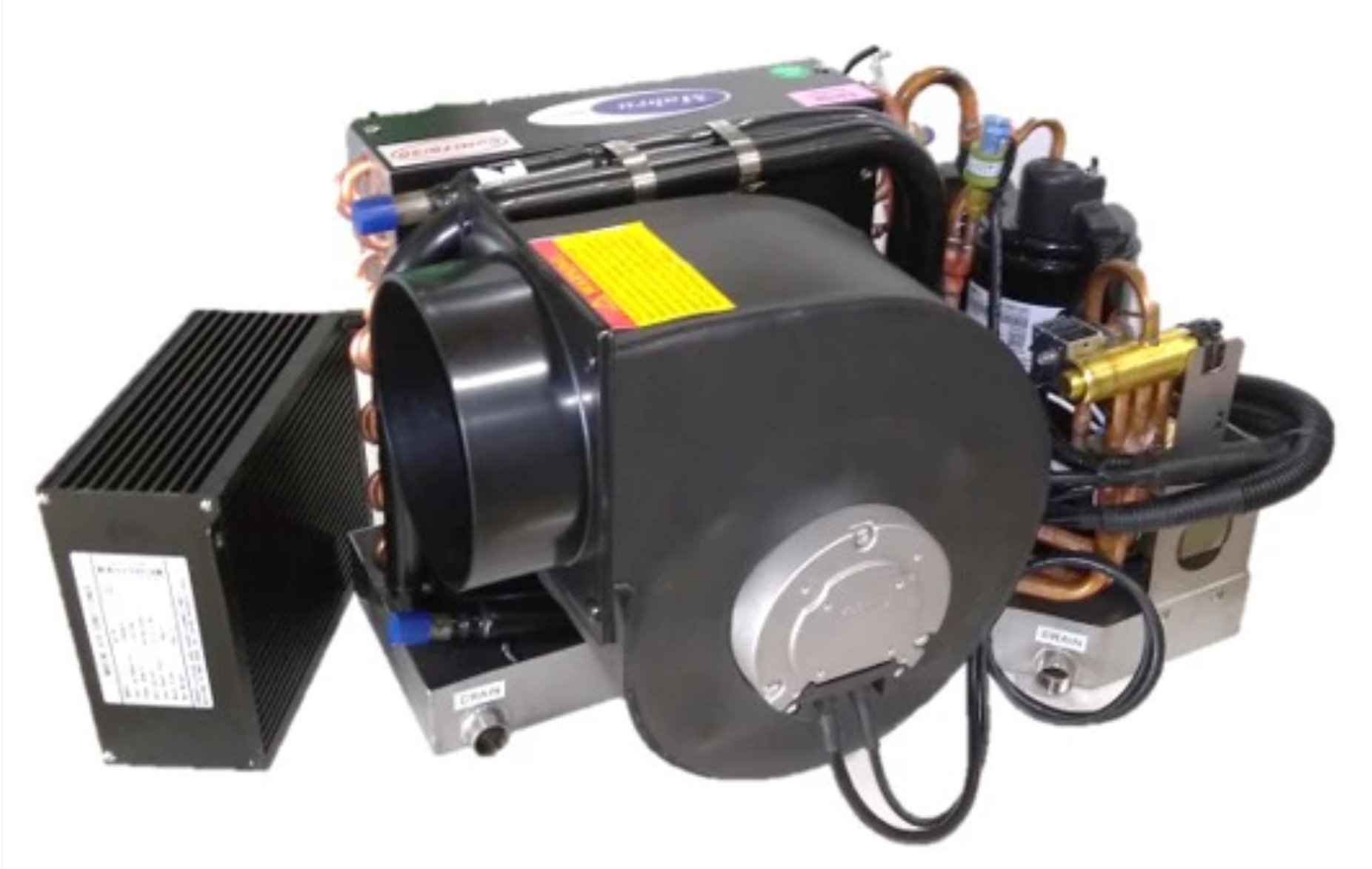

Introducing Mabru's new 17,000 BTU International Voltage 115/230v self-contained SC17VI, utilizing a Variable Frequency Drive (VFD) On-demand, a VFD adjusts the speed of an HVAC fan and variable speed compressor, saving energy and extending the life of the team. A VFD responds to a signal from a controller, allowing equipment to run at the power required to meet the demand for heating and cooling. This replaces the older version of conventional AC with cranking amp spikes, eliminating on / off starts at the compressor. Ideal for battery off grid solar operation, best marine heat pump ever.
The new Mabru SC17VFD with the variable speed compressor will draw fewer amps than its predecessor (the SC17K), making it more affordable to work with inverters.
Comparing the consumption between the conventional AC @ 115V, the New SC17VFD @ 115V will save energy up to 50% in energy, allowing the air conditioner to run more smoothly and continuously, constantly drying the air, which is represented in greater comfort.
ULTRA EFFICIENT MARINE AIR CONDITIONER 17000 BTU 115V
TECHNICAL SPECIFICATIONS:
SC17VI
Cooling capacity: 17,000BTU
Heating capacity: 17,800BTU
Power source: 115-230V AC
Cooling Amp draw at 115V: 2.9 at low speed, and 9.0 at full speed.
Heating Amp draw at 115v: 3.4 at low speed, and 11.1 amp at full speed.
Cooling Amp draw at 230V: 1.9 at low speed, and 4.8 at full speed.
Heating Amp draw at 230V: 2.2 at low speed, and 5.6 amp at full speed.
Fan Blower CFM H/M/L: 800/670/570
Pump GPH minimum: 500gph
Refrigerant R410A
Minimum Air Duct Size (in) : 6 inch
Minimum Return Air Grille Size: 144 sq in
Minimum Supply Air Grille Size: 19 sq in
Sea Water pipe: 5/8 Inches
Net weight lbs: 68 Lb
Shipping weight: 75 Lb
Measurements: W 19.6 x L 12.25 x H 13 Inches
Running time on an MPS 250 Amp: Tested with a Mastervolt 2000 Watt PowerCombi ~ 2.5 hours@ Full Speed
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return or exchange.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused, including tags, instruction manuals, warranty cards, and in its original packaging. You’ll also need the receipt or proof of purchase. We reserve the right to refuse returns or assess additional fees at our discretion if the merchandise is missing parts or is not in new condition
If your return request is accepted, we’ll send you a return shipping label, as well as instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
To start a return, please contact us at info@theyachtrigger.com
Damages and Warranties
Please inspect your order upon receipt and contact us immediately if the item is defective, or damaged, or if you receive the wrong item so that we can evaluate the issue and make it right. Most items we sell are covered by manufacturers' warranties. If you experience difficulty with a product, please contact the appropriate manufacturer for assistance and troubleshooting help, or email us at info@theyachtrigger.com
Exceptions / Non-returnable Items
Certain types of items cannot be returned, e.g. custom products such as special orders. We also do not accept returns for hazardous materials, flammable liquids, or gasses. Please get in touch if you have questions or concerns about your specific item. Unfortunately, we cannot accept returns on sale items or gift cards.
Exchanges
The fastest way to ensure you get what you want is to request a return of the item you have, and once the return is accepted, make a separate purchase for the new item. This will ensure that your correct item is in stock.
European Union 14-day Cooling off period
Notwithstanding the above, if the merchandise is being shipped into the European Union, you have the right to cancel or return your order within 14 days, for any reason and without a justification. As above, your item must be in the same condition that you received it, unworn or unused, with tags, instruction manuals, warranty cards, and in its original packaging. You’ll also need the receipt or proof of purchase.
Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. When processing a refund, no additional transaction fee is incurred. However, the original credit card transaction fee isn't refunded to you when issuing a refund. If approved, you’ll automatically be refunded on your original payment method within 10 business days. Please remember it can take some time for your bank or credit card company to process and post the refund. If more than 15 business days have passed since we’ve approved your return, please contact us at info@theyachtrigger.com
Return policy abuse
We reserve the right to refuse service to anyone suspected of abusing any policy of The Yacht Rigger.

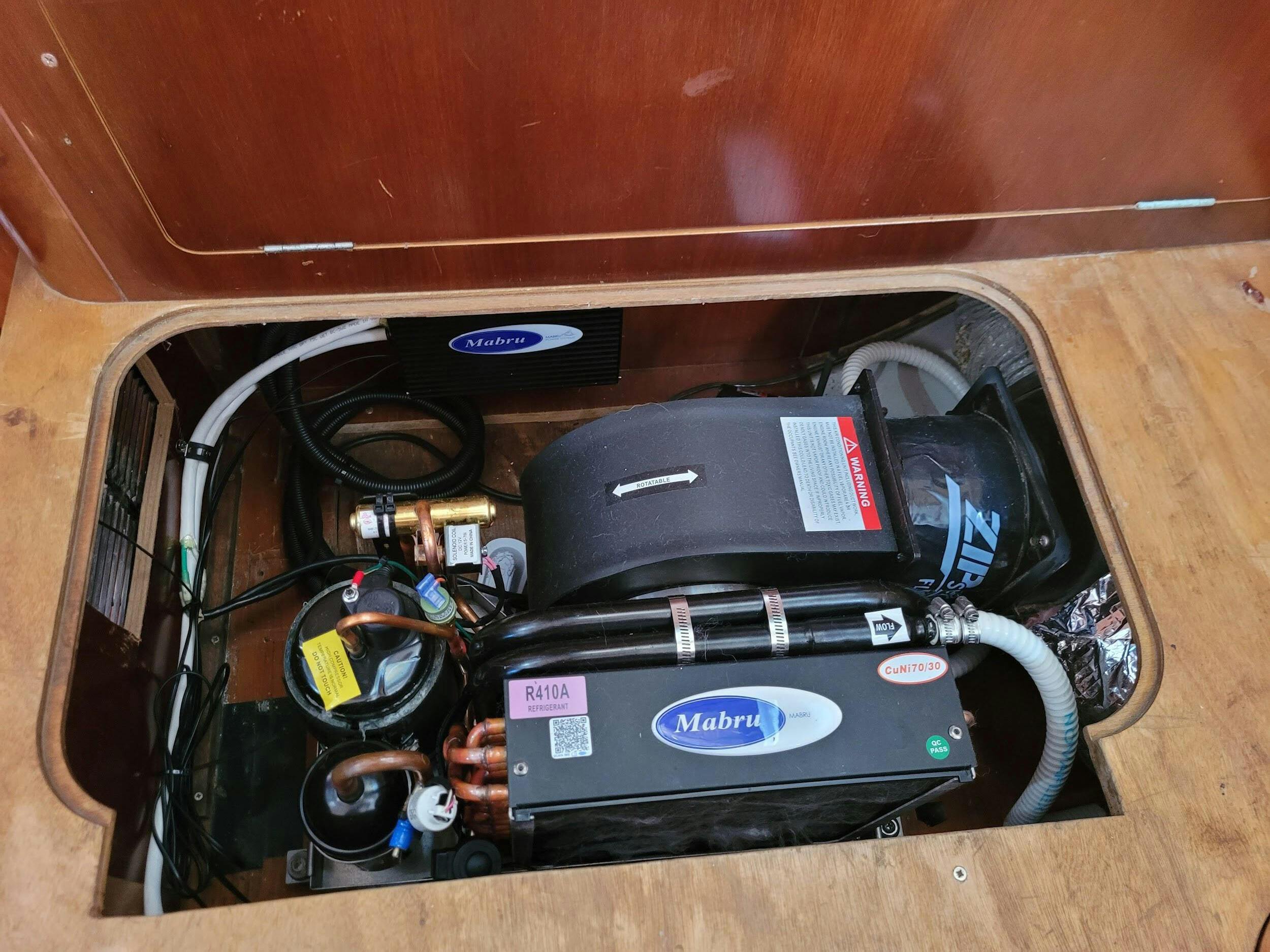

Mabru air conditioner is great improvement from my old model. Cools boat down quickly. Easy install. I run this 17k unit of my 12/100/3000 ,victron invertor. Sometimes the solar panels will provide enough power for air conditioner ,2 fridges and all other loads.
