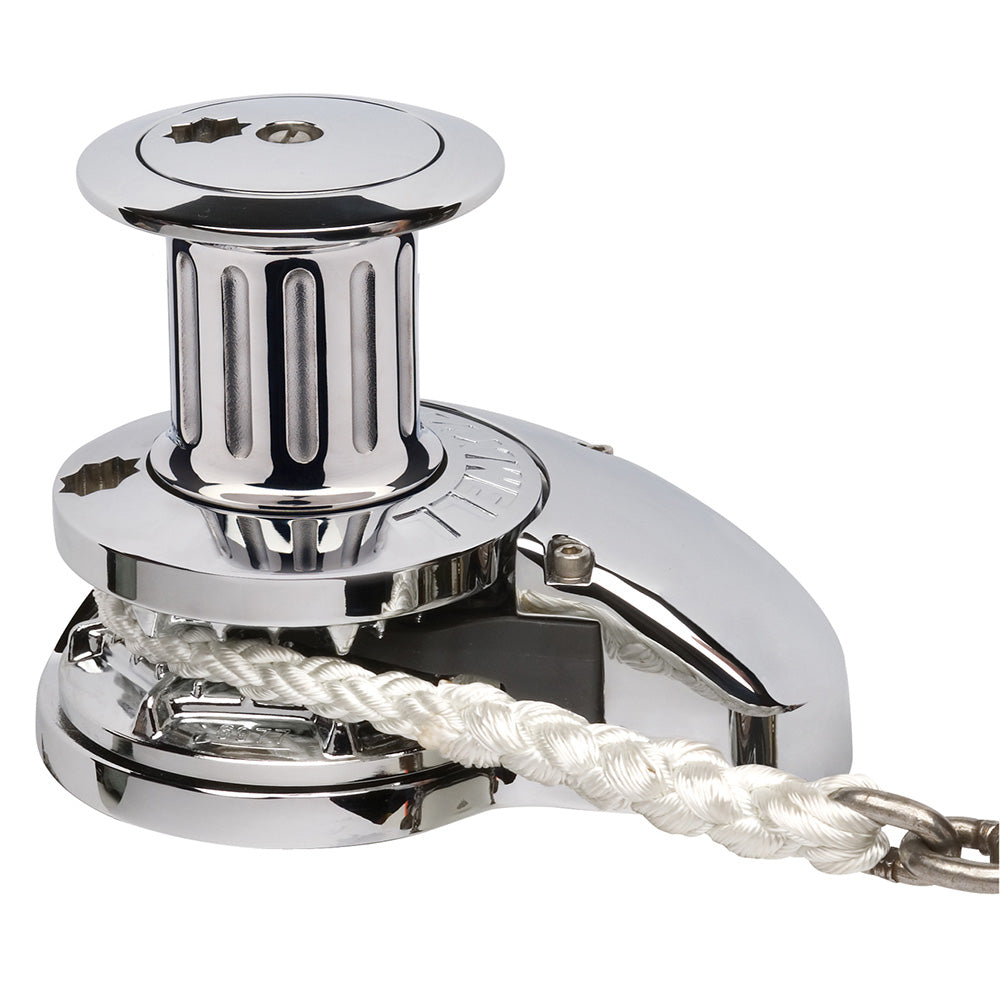

The stainless steel (AISI 316) RC10 Series rope/chain windlass is part of Maxwell’s upper mid-range line-up and is suitable for boats ranging from 9m (30ft) to 14m (48ft). The RC10-8 is a second-generation rope/chain windlass and is a favorite choice for cruising yachts, launches, pilothouse vessels, and light commercial operators. The intentionally simple design yields excellent longevity and performance figures and has contributed to a well-earned reputation for reliability.
The patented Wave Design™ rope/chain gypsy (chain wheel) is able to accommodate a wide range of chain pitch differences (both imperial and metric) within the RC10’s specified chain size diameters.
Features:
Works just as effectively with all-chain rode
The gearbox can be removed by hand and without tools for easy maintenance and inspection
Full disassembly capability of the top works utilizing only the handle provided and an Allen key
Manual override and ‘Free Fall’, using the emergency crank/clutch handle provided
Sealed oil bath and marine-grade hard anodized, alloy gearbox provides maximum output via a precision worm and worm wheel
Every Maxwell RC10 automatic rope/chain windlass comes with top works, motor/gearbox and dual-direction solenoid
The unique spacer tube design allows for installation through virtually any deck thickness, and the multiple mounting positions and self-aligning gearbox ensure optimal orientation in virtually all installation situations
Specifications:
Maximum Pull: 1540 lbs. (700 kg)
Static Hold: 3300 lbs. (1500 kg)
Chain Size: 5/16 in. (8 mm)
Rope Size (Nylon): 9/16 in. – 5/18 in. (14 mm – 16 mm)
