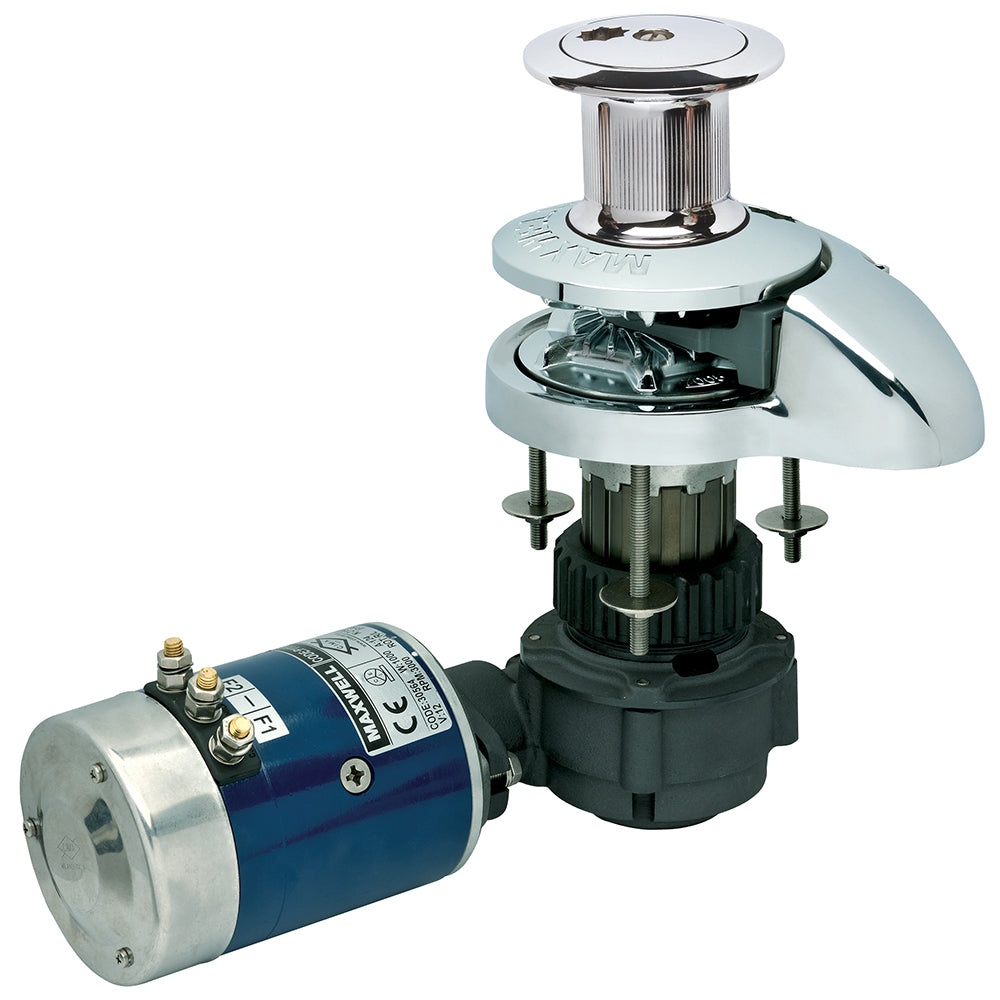

Maxwell RC8-8 Windlass w/Capstan 12V - 5/16" Chain to 9/16" or 5/8" Rope

RC8-8 Windlass with Capstain - 12V - 5/16" Chain to 9/16" or 5/8" Rope

RC Rope/Chain Series

Maxwell's RC series windlasses proudly follow in the highly successful footsteps of the Freedom, Liberty and HRC fully automatic rope/chain anchor winches. RC10 and RC8 are available in both capstan and low profile versions. RC6 is available in low profile version only.

The RC12 Series incorporates Maxwell's latest stylish innovation in automatic rope/chain technology. Retaining the classic open design styling more appropriate on larger boats, the RC12 Series represents the next generation of rope/chain windlass evolution in every respect.

Every Maxwell automatic rope/chain windlass is available with all the necessary components for fully automatic dual direction control in a competitively priced package.

Maxwell’s Revolutionary Chainwheel

Maxwell once again leads the market in innovative thinking with the introduction of their latest Wave Design™ chainwheel. This patented rope/chain wheel incorporates two unique design concepts that greatly improve the handling and control of the rope/chain spliced rode. The outer ribs of the chainwheel are angled slightly forward ensuring that the rope and the chain are smoothly guided in the wheel during anchor retrieval.

As the rope pulls into the wheel, the opposite facing inner ribs grip the rope in an undulating manner, securing the rope more firmly in a 'wave pattern' action that is far superior to the traditional 'jam cleat' manner of holding the rope compared to all other products on the market. Not only does this Wave Design™ hold the rope more securely, it is also kinder on the rope resulting in increased longevity of your anchor rode.

Wave Design™ Chainwheel

Maxwell once again leads the market in innovative thinking with the introduction of their latest Wave Design™ chainwheel.

This rope/chain wheel incorporates two unique design concepts that greatly improve the handling and control of the rope/chain spliced rode. The outer ribs of the chainwheel are angled slightly forward ensuring that the rope and the chain are smoothly guided in the wheel during anchor retrieval.

As the rope pulls into the wheel, the opposite facing inner ribs grip the rope in an undulating manner, securing the rope more fi rmly in a ‘wave pattern’ action that is far superior to the traditional ‘jam cleat’ manner ofholding the rope. Not only does this Wave Design™ hold the rope more securely, it is also kinder on the rope resulting in increased longevity of your anchor rode.

Is fitted to the RC Series and the HRC Series windlasses, designed for anchor rodes with any marine grade chain, G4, BBB, Proof Coil and Metric.

Features:

• The larger stainless steel RC8-8 can be used with 8mm (5/16 inch) chain spliced to 14mm (9/16 inch) three strand or 8-plait rope.
• The ingeniously designed rope/chain gypsy (chainwheel) is able to accommodate a wide range of chain pitch differences within the specified chain size diameters suitable for use with the RC8 Series.
• A sleek, Low Profile version and a MAX-grip capstan drum version, with drum made in chromed bronze, are available.
• Simple two piece installation saves time and money and allows easy retrofitting without disassembly of the windlass.
• Unique spacer tube design allows installation through virtually any deck thickness and the multiple mounting positions and self aligning gearbox ensure optimal location of gearbox and motor in virtually all installation situations.
• The RC8 features Maxwell's revolutionary Wave Design chainwheel.
• The heavy duty stainless steel pressure arm is designed to effectively help grasp the rope/chain splice, giving the RC8 an unparalleled level of performance. In combination with a heavy duty, large wire diameter, stainless steel pre-loaded spring, the pressure arm always exerts maximum control pressure.
• The RC8 works just as effectively with all-chain rodes.
• Huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.
• Full disassembly capability of the topworks utilising only the handle provided and an Allen key.
• Manual override and Free Fall, using the emergency crank/clutch handle provided.
• Sealed oil bath and marine-grade hard anodised, alloy gearbox provides maximum output via a precision worm and worm wheel.

Specifications:

• Chain - Diameter (Inches): 5/16"
• Freefall: Yes
• Rope Diameter (Inches): 5/8"
• Vertical/Horizontal: Vertical
• Box Dimensions: 11"H x 17"W x 19"L WT: 42.8 lbs
• UPC: 9414761098748
