Description

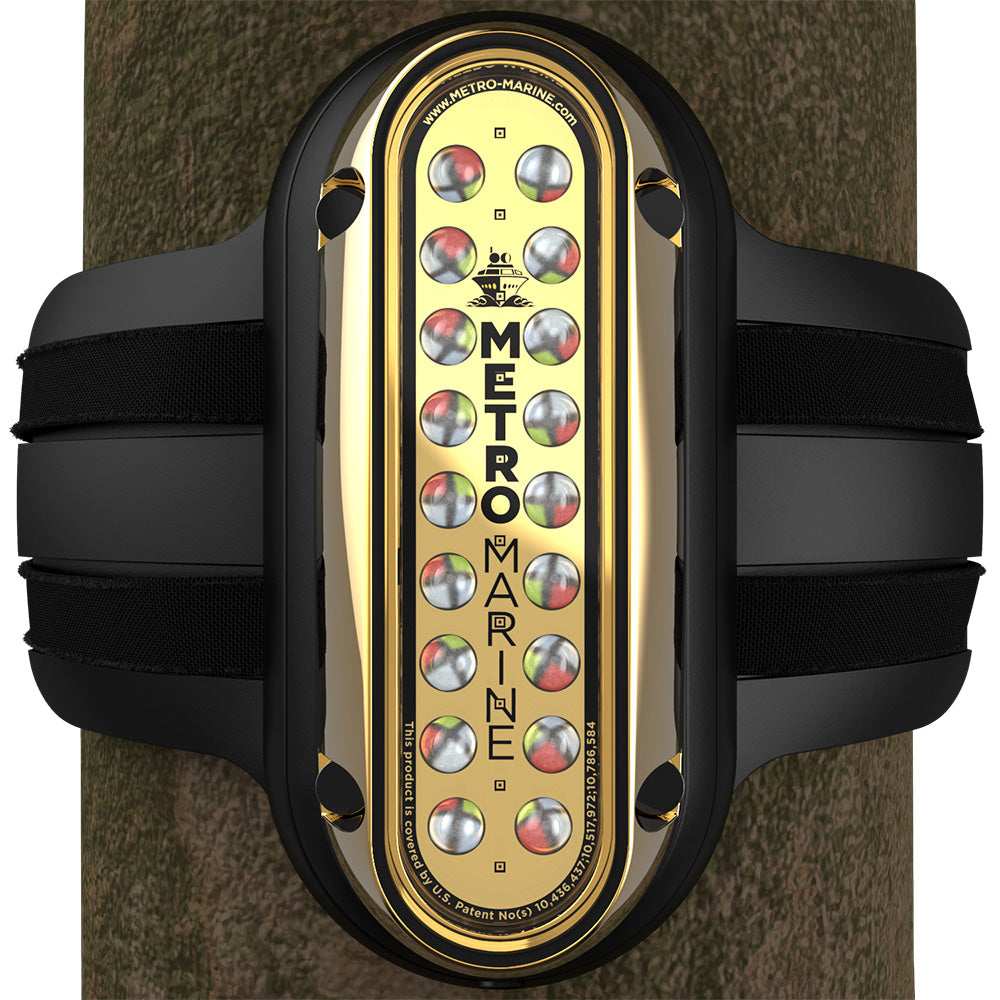

High-Output Vertical Piling Mount Light with Intelligent Full Spectrum LED's - RGBW, 45° Beam
The F-Series line of underwater marine lighting fixtures is designed to mounted a depth of up to 4.6M (15') below the water’s surface to provide vibrant color and color-changing light in the water. With watertight aluminum bronze housings and silicon bronze hardware, Metro Marine’s F-Series luminaires are perfect for marine-based applications such as mounting to yachts, docks, sea walls, as well as for use in fountains and theme park installations. . Leveraging Metro’s rich legacy of innovation and leadership in optics & LED control technology, the F-Series underwater lighting fixtures introduce a unique LED array to the market with 72 H.O. LEDs per fixture, allowing close adjacent fixture placement where fully-mixed, uniform light is important. Our F-Series RGBW Luminaires also integrate a separate white LED in each of the 18 individually optically lensed RGBW LED configurations, creating higher-quality whites and richer color blends than possible with traditional RGB+White fixtures.
The F-PME1-V-FS-45 is a superior underwater RGBW LED luminaire with 45° optical lensing for lighting mid- to large-scale structures and yachts ranging from 10M (32') to 30M (100'), with uniform color control, and high efficiency.
Clear Lens Technology
One of the main problems seen with underwater marine lighting fixtures is the aggressive growth (biofouling) that attaches to the clear lenses in front of the LEDs. This growth blocks the light, and causes the fixtures to overheat. When UVC’s became available in LED form, Metro Marine devised and patented a unique and innovative system utilizing UVC LEDs to keep the lenses on our fixtures crystal clear – forever!
Anti-Condensation Assembly Methodology
Condensation is a critical issue found in many underwater marine lighting fixtures. It can cause internal corrosion which can destroy underwater lighting fixtures from the inside-out. Taking a scientific approach, we have solved this problem, completely eliminating condensation from forming in our fixtures. We manufacture our fixtures in a Class 1000 Clean Room, and our patent-pending assembly methodology guarantees our fixtures will never experience condensation!
Technical Specifications:
- Beam Angle - 45°
- Input Voltage - 10VDC-30VDC
- Power Consumption - 88W
- Dimensions - 8.5" (W) x 10" (H) x 2.59" (D)
- Weight - 3.41 lbs
- Lens Material - Clear Quartz
- Operating Temperature - -40 to 122°
Specifications:
- Color: Full Color RGBW
- Material: AB2 Aluminum Bronze
- Mounting Style: Piling
- Voltage - Input Range (Volts): 10-30v
- Watts: 88w
