Description

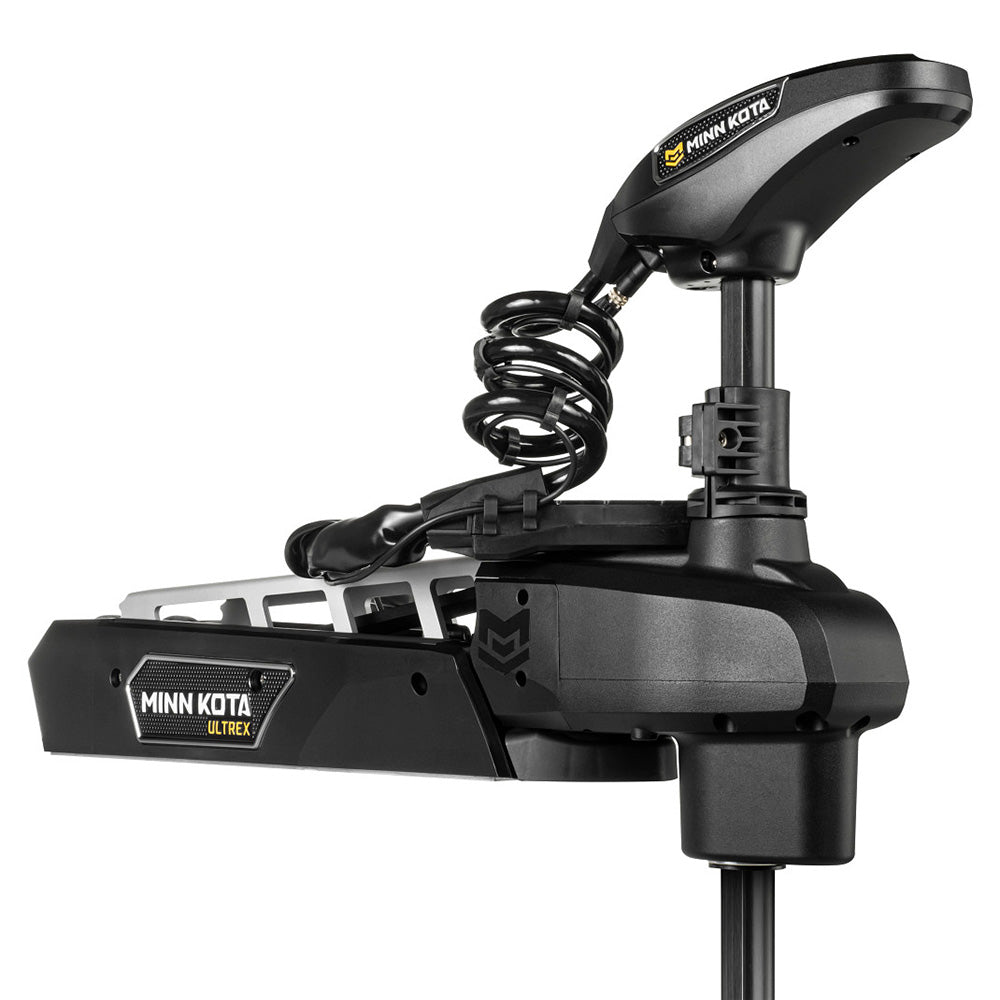

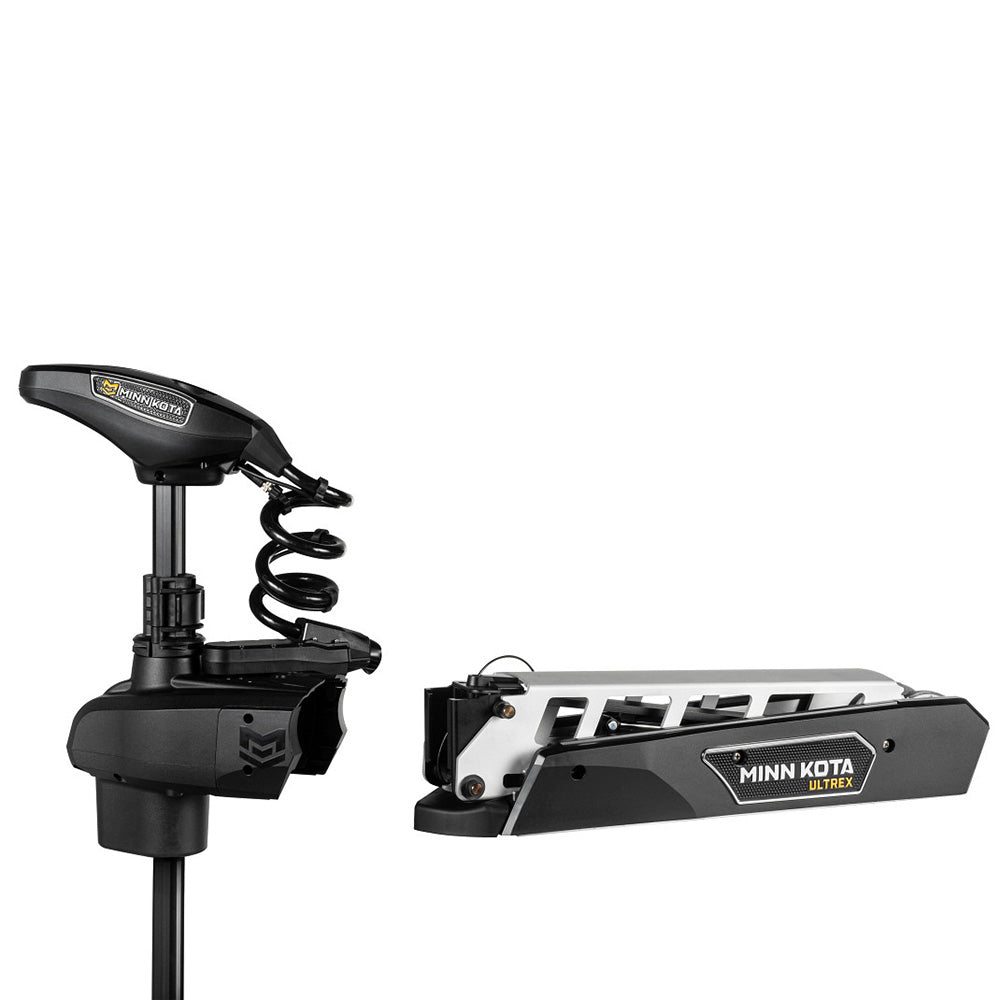

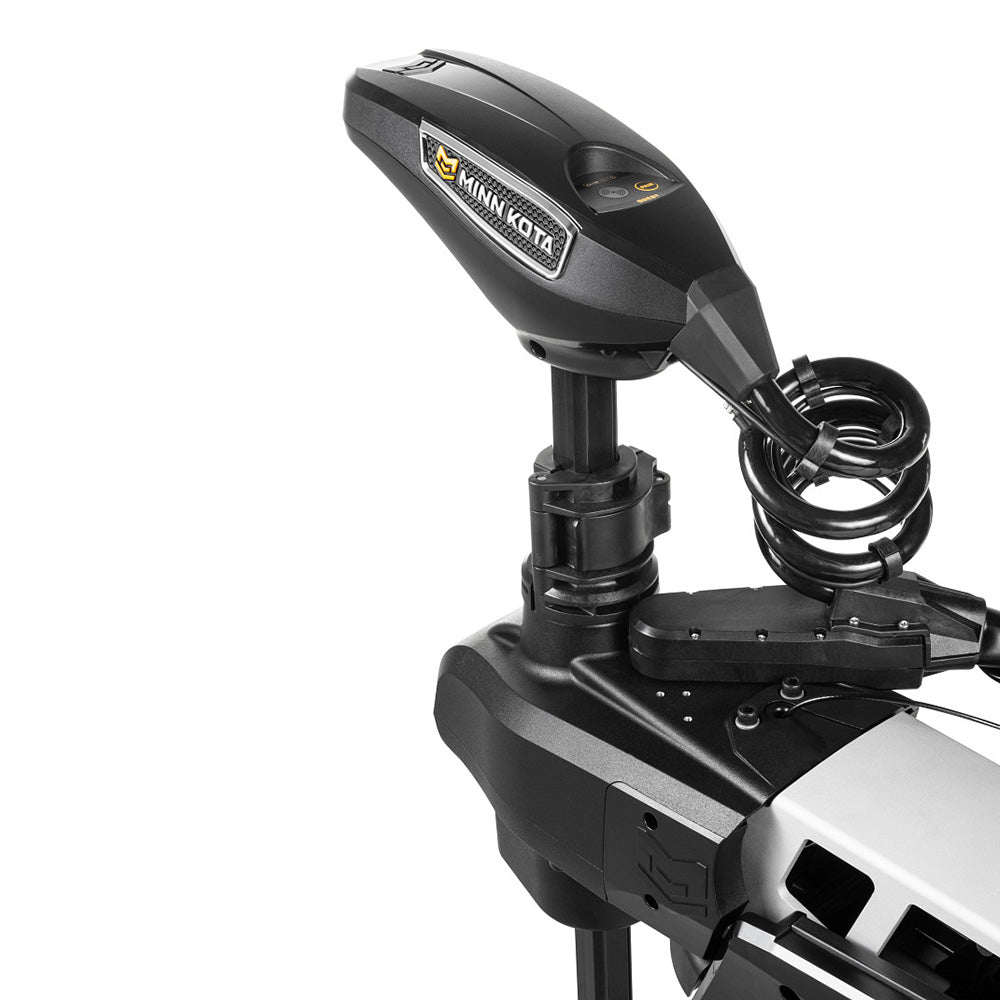

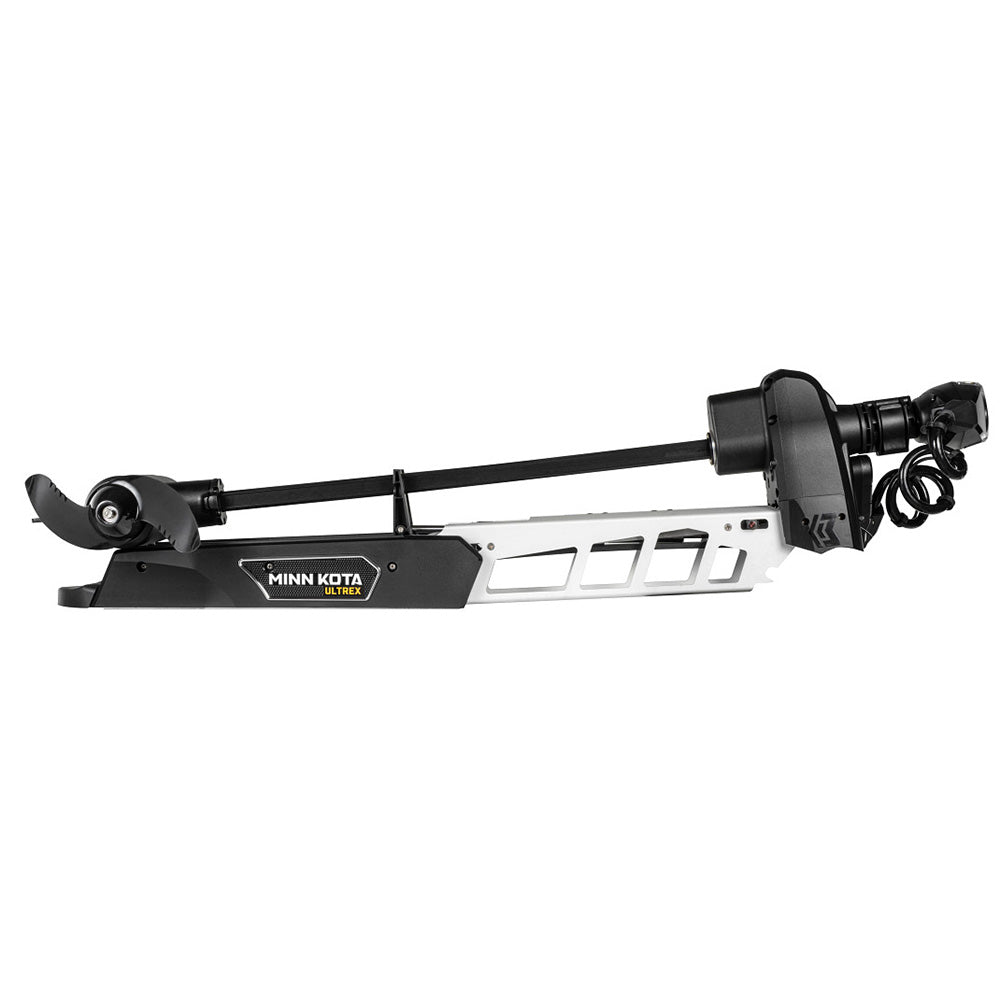

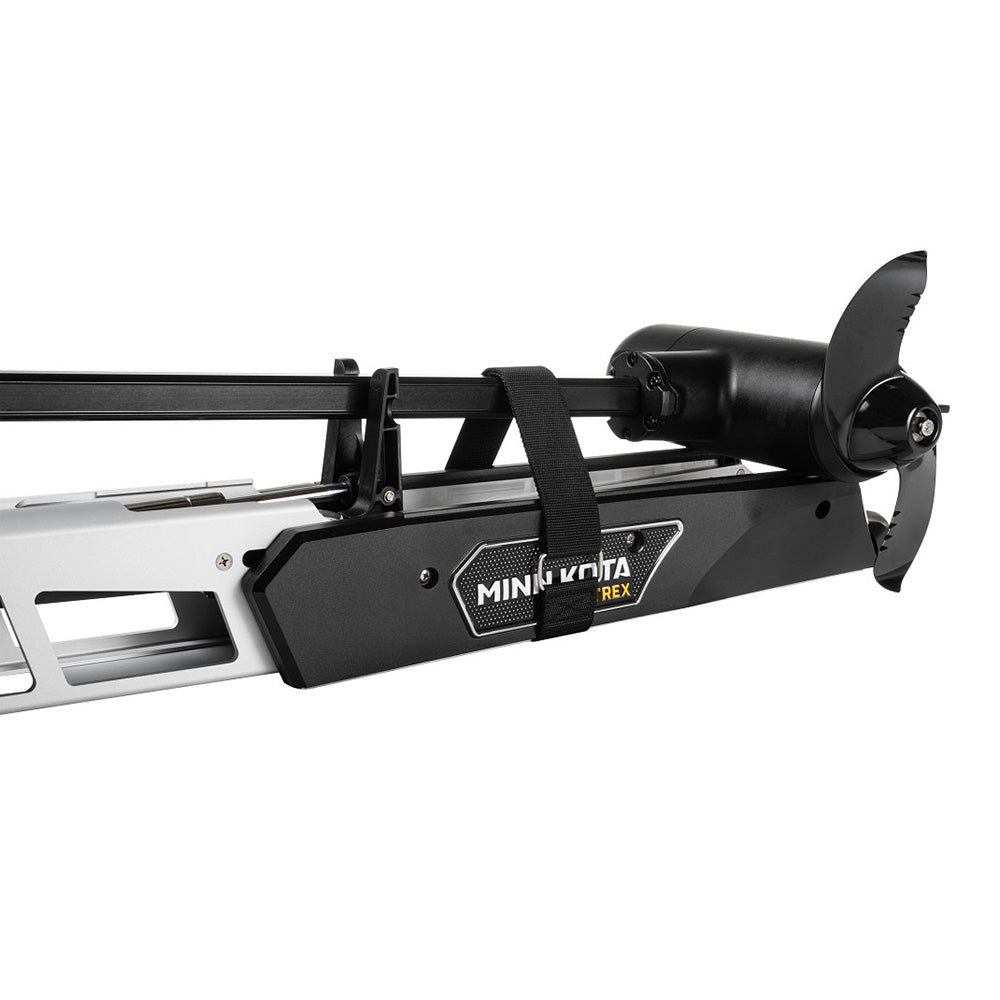

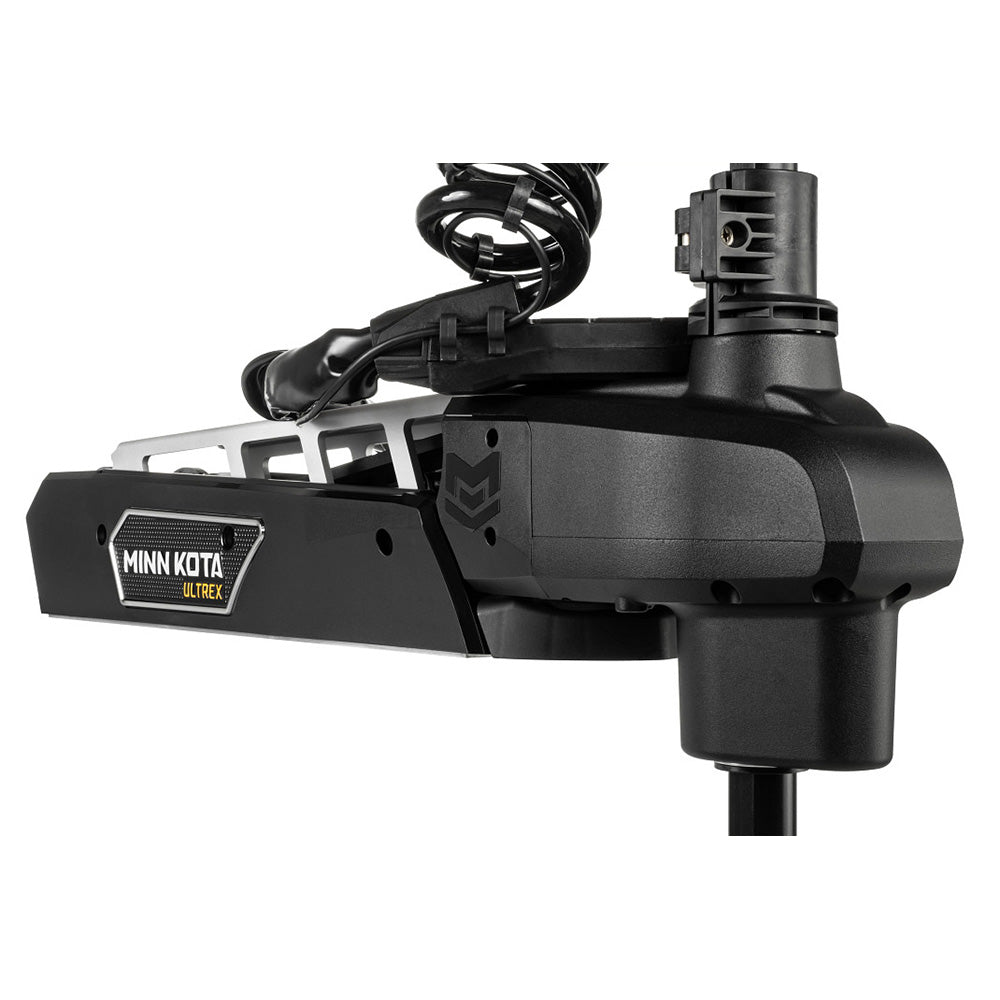

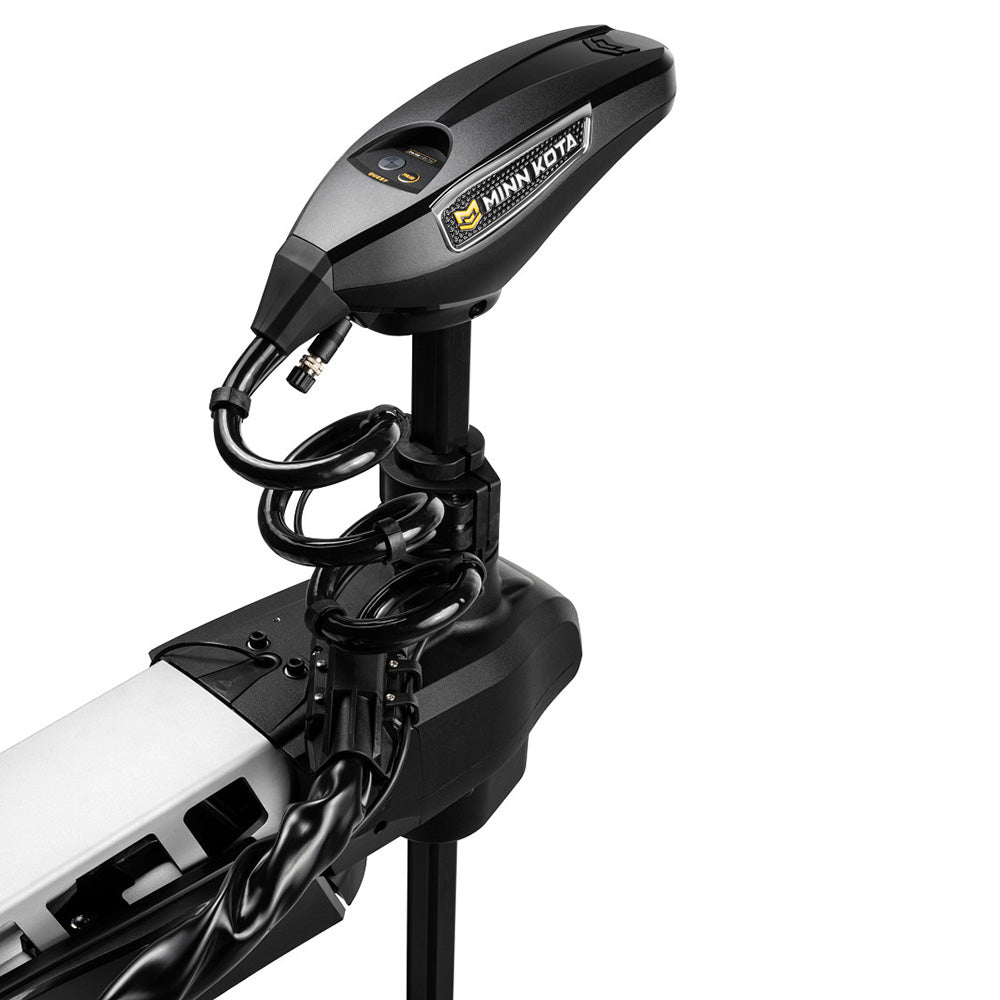

Ultrex QUEST™ 90/115 Trolling Motor with Micro Remote - Dual Spectrum CHIRP - 24/36V - 90/115LBS - 60"
Only Ultrex combines the most responsive, intuitive steering ever with GPS-powered automatic boat control. Now the best trolling motor ever built has been completely reimagined to handle even tougher abuse. The new QUEST series of dual 24/36 volt brushless trolling motors was designed for anglers who demand the best from their equipment, even in the harshest environments. With a programmable foot pedal, a re-engineered motor and mount, more advanced GPS functionality than ever, and even an eco mode to extend battery life, the only thing this motor won't do is quit.
QUEST Series

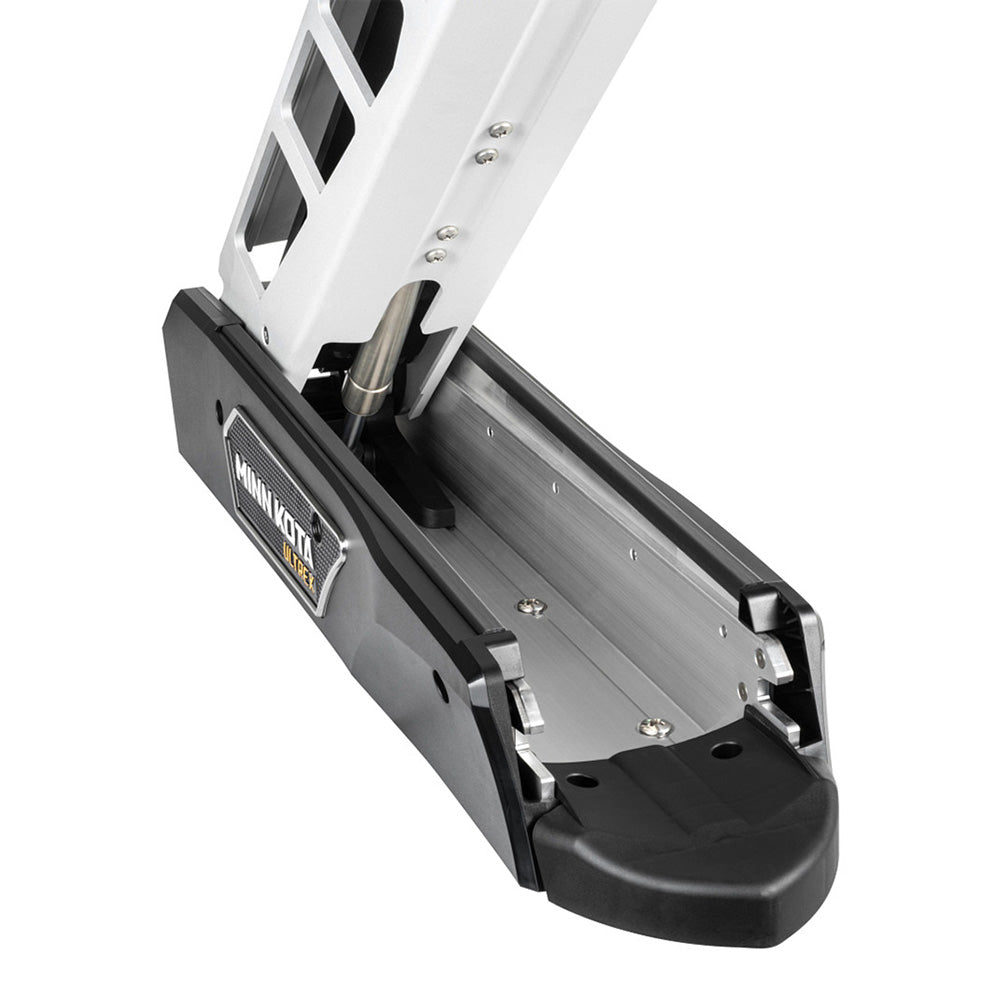

This 24/36V dual-voltage brushless motor has been completely re-imagined from the ground up with updates to mounts, propellers, lift assist systems, drive motors, and software, taking the world’s greatest trolling motors and redesigning them to outperform everything else on the water for years to come.
Advanced GPS Trolling System
The One-Boat Network gives you unprecedented control over your boat by linking your trolling motor to your Humminbird® fish finder. Control your trolling motor from the included remote or a connected Humminbird. You can set spot locks, record paths, follow depth contours, automatically navigate to your favorite spots, control speed and steering, and more.
Spot-Lock with Jog
Spot-Lock will hold you in place with unparalleled GPS accuracy. Available on the pre-installed GPS system, Spot-Lock gives you the power to stay right on top of any productive fishing spot, without touching your trolling motor. With the included heading sensor, you can use Jog to move your Spot-Lock location five feet in any direction.
Drift Mode
Automatically engages speed and course control simultaneously, meaning anglers no longer need to depend on drift socks, kicker motors, or manual operation to control speed over water, even in the heaviest wind and current.
Heel-Toe / Programmable Foot Pedal
It's the only foot pedal with Power Steering for all-day comfort and instant responsiveness — plus a user-programable button to keep the most used features a tap away, including: marking a waypoint, engaging AutoPilot, or deploying or retracting Minn Kota shallow water anchors.
Real-time Battery Monitoring
Check battery power levels while the motor is in use, real-time "time until empty" display monitor, with a notification when battery power is reduced to 20% to prompt users to enter "Eco-mode" which can reduce current draw to extend battery life.
Digital Maximizer™
Provides up to 5 times longer run time on a single battery charge. These variable speed trolling motors let you dial in your exact speed, and they deliver only as much power as you need, helping to conserve your battery for a full day of fishing.
Indestructible Composite Shaft — Guaranteed for Life
At the core of your Minn Kota trolling motor is an indestructible composite shaft. It's a Minn Kota exclusive, and they guarantee it for life.
Mobile App Compatibility
Control Ultrex directly from your Apple® or Android™ device with our mobile app. You get quick command of speed, steering, Spot-Lock and AutoPilot — plus the ability to update software.
Built-In Dual Spectrum Chirp Sonar
Keeps your transducer and wiring completely concealed and protected running everything through the trolling motor's shaft. By covering a wide range of frequencies, Humminbird®'s CHIRP produces more accurate, more detailed returns of fish, structure and the bottom than traditional sonar.
What's Included
Ultrex 90/115 lb. 60" trolling motor with Built-In Dual Spectrum CHIRP, Corded Foot Pedal, Micro Remote, Lanyard, Heading Sensor, 30' Ethernet Extension Cable, Humminbird HELIX Adapter cable, Stabilizer, Hold Down Strap, MKP-39 Prop and Mounting Hardware.
Specifications:
- For Use In: Freshwater
- Shaft Length (inch): 60"
- Max Thrust (pounds): 90/115 lbs.
- Voltage: 24/36
- One-Boat Network Compatible: Yes
- QUEST Series: Yes
- Spot-Lock: Yes
- Built-In Sonar: Dual Spectrum CHIRP
- Foot Pedal Style: Heel-toe/cable
- Control: Foot Pedal, Wireless Remote
- Auto/Stow Deploy: No
- Power Trim: No
- Power Steering: Yes
- Lift-Assist: Yes
- Bowguard: No
- Wireless Remote: Yes
- i-Pilot (GPS): No
- AutoPilot: Yes
- CoPilot: No
- Speeds: Variable
- Digital Maximizer: Yes
- Battery Meter: Yes
- Max Amp Draw: 58
- Mount Style: Scissor-Lock
- Mounting Location: Bow-mount
- Motor Style: Cable-steer
- Prop: Power Prop (MKP-40)
- Warranty: Three-Year Warranty
Specifications:
- Autopilot: Yes
- Built-In Transducer: Yes
- Control Type: Micro Remote
- Included Propeller: MKP-40
- Mounting Style: Bow
- Salt Water/Fresh Water: Fresh
- Series: Ultrex
- Shaft Length (Inches): 60"
- Thrust (Pounds): 90/115 lbs
- Voltage - Input Range (Volts): 24v or 36v
- Box Dimensions: 10"H x 20"W x 77"L WT: 98 lbs
- UPC: 029402049219
Quick Guide (pdf)
Owner's Manual (pdf)
