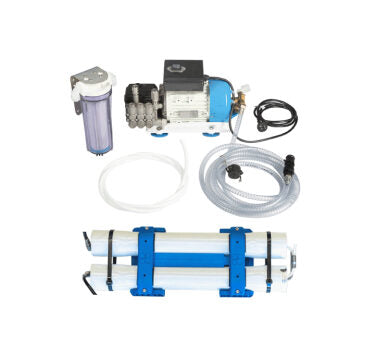

Modular-AC-70 (Compact)


Power Supply: 115V (US Plug)
Price:
Sale price$4,838.00
Stock:
In stock
Save Product

If you want to permanently install your system, do not require future portability, and want a minimum footprint installation, the Rainman modular watermaker is a good option.

This system has the same internals and performance as the traditional Rainman system, with an integrated lift pump so there is only one motor to switch on.

The Rainman modular system excludes the blue shells, and includes a variety of valves and hardware useful for your installation.

Three main components (pump/motor, prefilter, RO unit) can be mounted separately from each other. The valve/gauge controls are to be mounted remotely, so the watermaker can remain out of sight.

  • Available for drop shipping from Australia. Usually arrives within 10 days upon payment.
  • Totally enclosed fan cooled (TEFC) induction motor.
  • Draws 1300 watts in steady state operation.
  • Designed to run with minimum of a Honda 2kW generator or a quality 2kVA inverter.

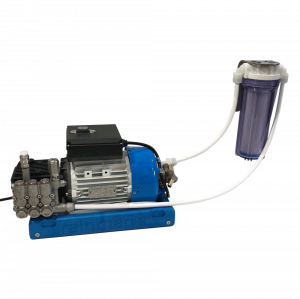

  • Jabsco impeller pump to lift water and provide positive pressure to the high pressure pump.
  • General Pump WMR series 316 stainless steel high pressure pump, the workhorse of the RO industry.
  • General Pump relief valve to prevent over pressurization and allow for pressure washing.
  • Five 5 micron pleated paper pre-filter cartridges included.
  • 2.2 lb bag pickling solution powder included.
  • Dimensions: Length 18.5″, Width 8.5″, Height 10.5″
  • Weight: 54lb

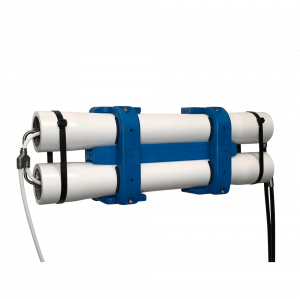

The compact membrane is the ideal companion for the electric PSU if you are short on space, and do not require the higher output that the High Output membrane provides. This compact membrane, together with the Rainman Electric PSU is capable of producing between 13 - 18 Gallons Per Hour.

  • Two 21″ Dow Filmtec RO membranes will produce 13 to 18 gph, depending on water temperature.
  • All salt water plumbing is 316 stainless steel.
  • Quality fluid filled pressure gauge.

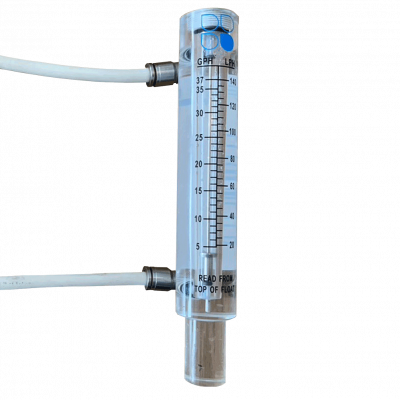

  • Integrated Flow Gauge for use in brackish/fresh water
  • 316 stainless steel pressure valve for long life.
  • 10 ft input hose with quick fit connector for connection to pressure supply unit, won’t mark your deck.
  • 10 ft food grade polyurethane fresh water delivery hose.
  • 33 ft food grade polyurethane extension hose for reaching your forward water tank.
  • 10 ft brine waste hose.
  • Dimensions: Length 27.0″, Width 3.5″, Height 7.75″.
  • Weight: 32lb.

All systems come complete with a full supply package of filters and pickling solution mix, tools and manuals. Ready to operate out of the box.

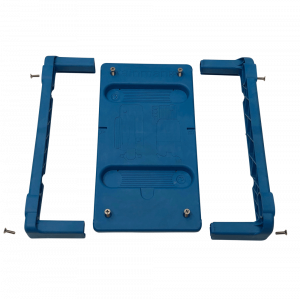

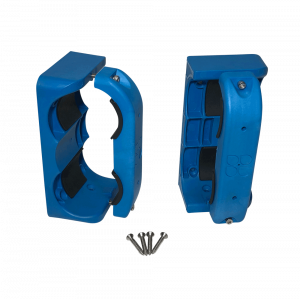

This installation model comes complete with a full mounting kit solution, in addition to all installation hardware.

Download Manuals:
Operation Manual – Electric (AC or 12VDC) System v2.81
Quick Reference Card – AC Electric
All Rainman Manuals
