Navico B75H 20 Bronze Thru-Hull CHIRP xSonic 9-Pin

B75H 20° Bronze Thru-Hull CHIRP xSonic 9-Pin

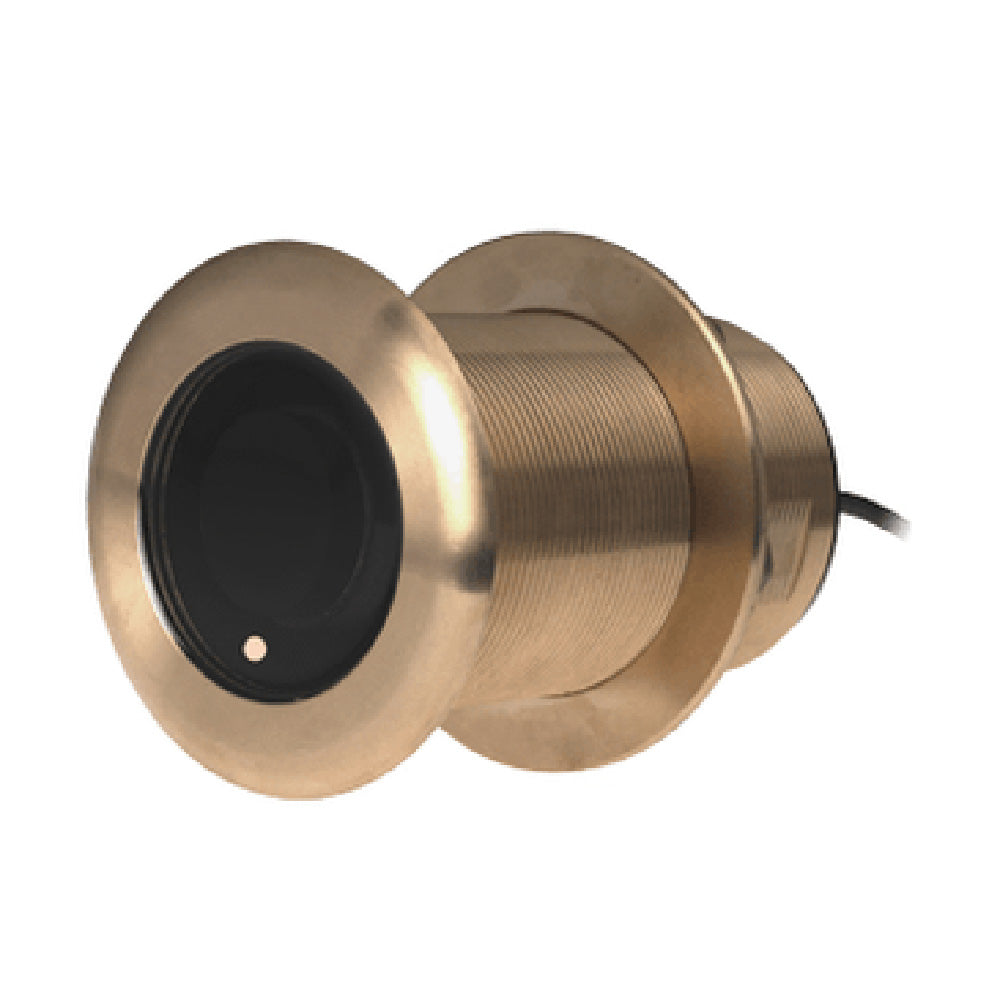

The B75H is a bronze, thru-hull, tilted, high-frequency (130-210kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.

Features:

• CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures
• Depth/Temperature - Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings
• Easy To Install
• High Frequency - CHIRP range is 130kHz-210kHz for good target detail in shallow water and excellent bottom tracking in deep water
• Highly Accurate - Provides extremely accurate data
• 20° Tilt - The 20° tilt is ideal for boats with a 16° to 24° hull deadrise
• Low Profile - The low profile housing minimizes drag with just 5mm extending outside of the hull
• Plug & Play Connection - Easily connect to NSS, NSE, NSO or Lowrance

Specifications:

• Cable Length (Feet): 33'
• Chirp: High
• Imaging: Standard
• Mounting Style: Thru-Hull
• Pins: 9
• Speed Included: No
• Temperature: Yes
