Description

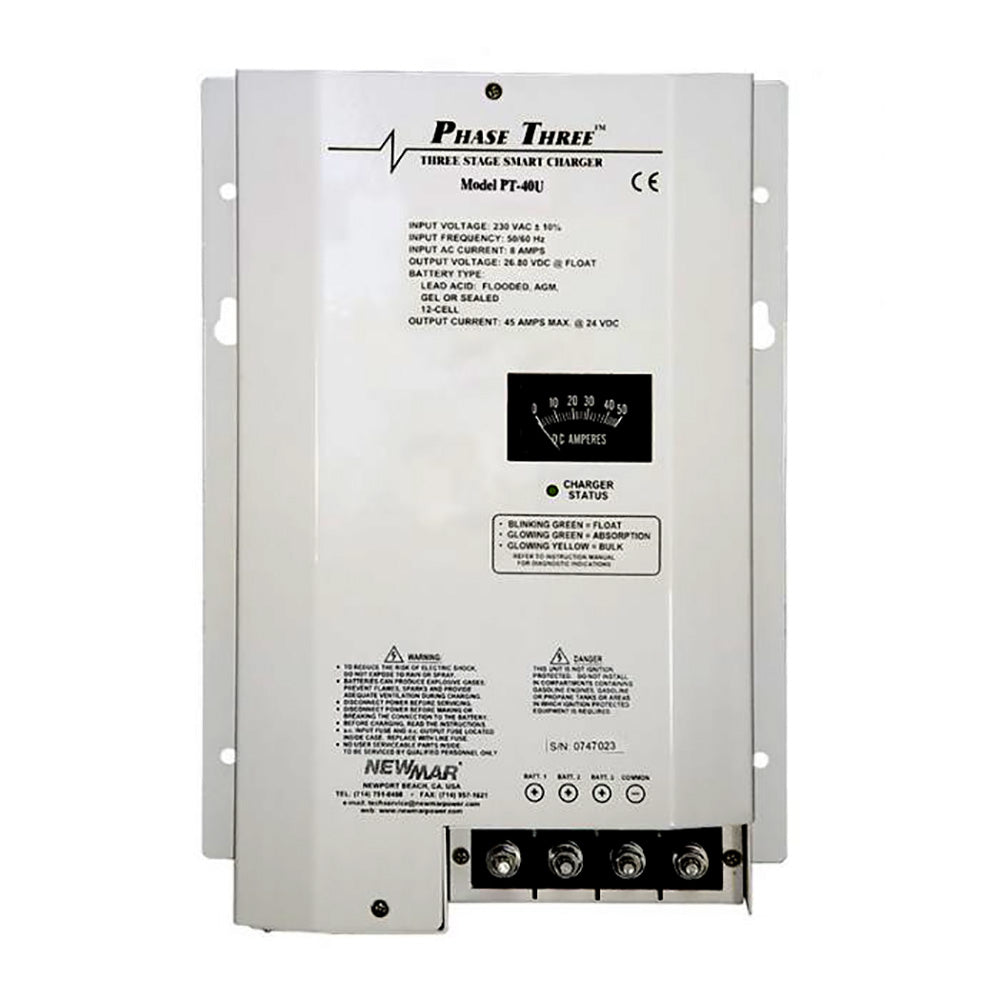

PT-40U Battery Charger
Newmar’s Phase Three Series Battery Chargers employ “Smart” battery charging technology for 12-volt systems aboard marine applications including workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life.
A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries’ ambient temperature. This model is housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance.
Features:
12-volt model
“Smart” circuitry provides three-stage charging – bulk, absorption, and float
Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages
Case Size (H x W x D): 13.85B x 9.5 x 4.8B inches (35.2B x 24.1 x 12.2B centimeters) *Note with Dripshield installed B add .75” (1.9 cm) to height and 1.35” (3.4 cm) to depth
Weight Lbs./Kg: 11/6
Optional Temp. Sensor Model: TCS-12/24
Remote Panel Model: EVM-12-2
Equalize Option: No
Output Indicator Reference: M-3
Compliance Reference: CG
Temperature Rating References:
Temperature: -20 degrees C to +70 degrees C
Derate Linearly From 100% @ 50 degrees C to 50% @ 70 degrees C
Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation):
ABS: PT Series meets SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13.
Options:
Remote Panel, model EVM-12-2, for us with model PT-40 only (Enables monitoring of when the battery charger is “on” and the batteries’ state of readiness, at a glance of two (2) battery banks only)
Temperature Compensation Sensor, Model TCS 12/24, for use with all models except PT 7 (-5 mV per cell degrees C, 25′ cable (40’cable optional)
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
