Portable Watermaker - AC Power - 70 (Compact)


Power Supply: 115V (US Plug)
Price:
Sale price$4,922.00
Save Product

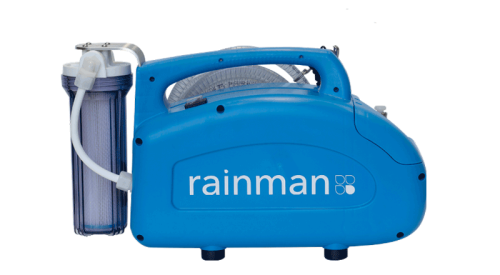

These portable desalination systems are ideal for applications with ac power, such as a Honda 2000 watt generators and high quality inverters. Simply unbox, plug in and make water – set up is less that 10 minutes and your capability extends for up to 18 gallons per hour. Eliminate those water worries with a Compact Rainman Watermaker.

  • Available for drop shipping from Australia. Usually arrives within 10 days upon payment.
  • Sturdy injection moulded polypropylene shell.
  • Totally enclosed fan cooled (TEFC) induction motor.
  • Draws 1300 watts in steady state operation.
  • Designed to run with minimum of a Honda 2kW generator or a quality 2kVA inverter.
  • Pre-filter and housing externally mounted for ease of service.
  • Jabsco impeller pump to lift water and provide positive pressure to the high pressure pump.
  • General Pump WMR series 316 stainless steel high pressure pump, the workhorse of the RO industry.
  • General Pump relief valve to prevent overpressurization and allow for pressure washing.
  • Sturdy 15ft draw hose fitted with one way valve so it remains primed, with detachable strainer.
  • Five 5 micron pleated paper pre-filter cartridges included.
  • 2.2 lb bag pickling solution powder included.
  • Dimensions: Length 23.5″, Width 10.5″, Height 13.5″
  • Weight: 54lb

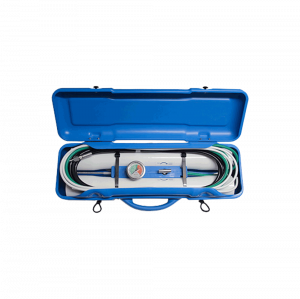

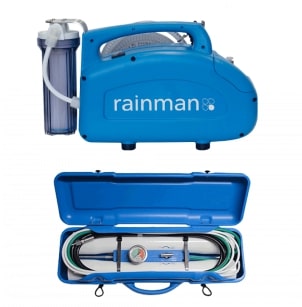

The compact membrane is an ideal companion for the electric PSU if you are short on space, and do not require the higher output that the High Output membrane provides. This compact case, together with the Rainman Electric PSU is capable of producing between 13 - 18 Gallons Per Hour.

  • Two 21″ Dow Filmtec RO membranes will produce 13 to 18 gph, depending on water temperature.
  • If desired, it the entire case can be permanently mounted, or internal system can be removed and installed with included rubber mounts.
  • All salt water plumbing is 316 stainless steel.
  • Quality fluid filled pressure gauge.

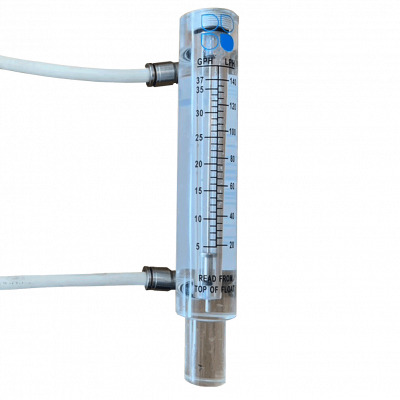

  • Integrated Flow Gauge for use in brackish/fresh water.
  • 316 stainless steel pressure valve for long life.
  • Rugged polyethylene case.
  • 10 ft input hose with quick fit connector for connection to pressure supply unit, won’t mark your deck.
  • 10 ft food grade polyurethane fresh water delivery hose.
  • 33 ft food grade polyurethane extension hose for reaching your forward water tank.
  • 10 ft brine waste hose.
  • Dimensions: Length 27.25″, Width 5.75″, Height 9.75″.
  • Weight: 32lb.

This is effectively an shortened version of the 40″ High Output RO Case.

All systems come complete with a full supply package of filters and pickling solution mix, tools and manuals. Ready to operate out of the box.

Portable systems also complete with a moulded strap down system for added storage options.

Download Manuals:
Operation Manual – Electric (AC or 12VDC) System v2.81
Quick Reference Card – AC Electric
All Rainman Manuals & Downloads

DESALINATION

Fresh Water Anywhere...

Rainman Watermakers present a streamlined solution crafted for producing clean, drinkable water from seawater. Tailored to fit in compact spaces or adaptable for on-the-go usage, they offer unparalleled versatility.
