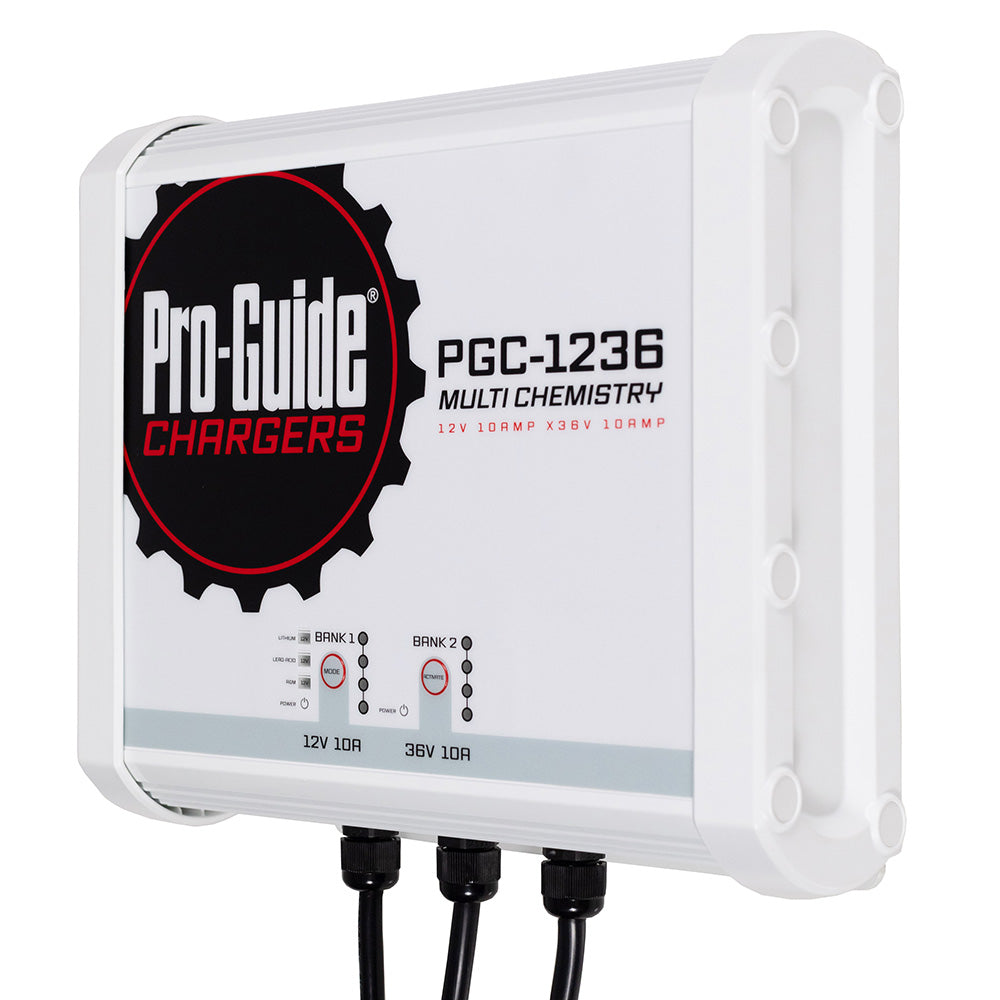

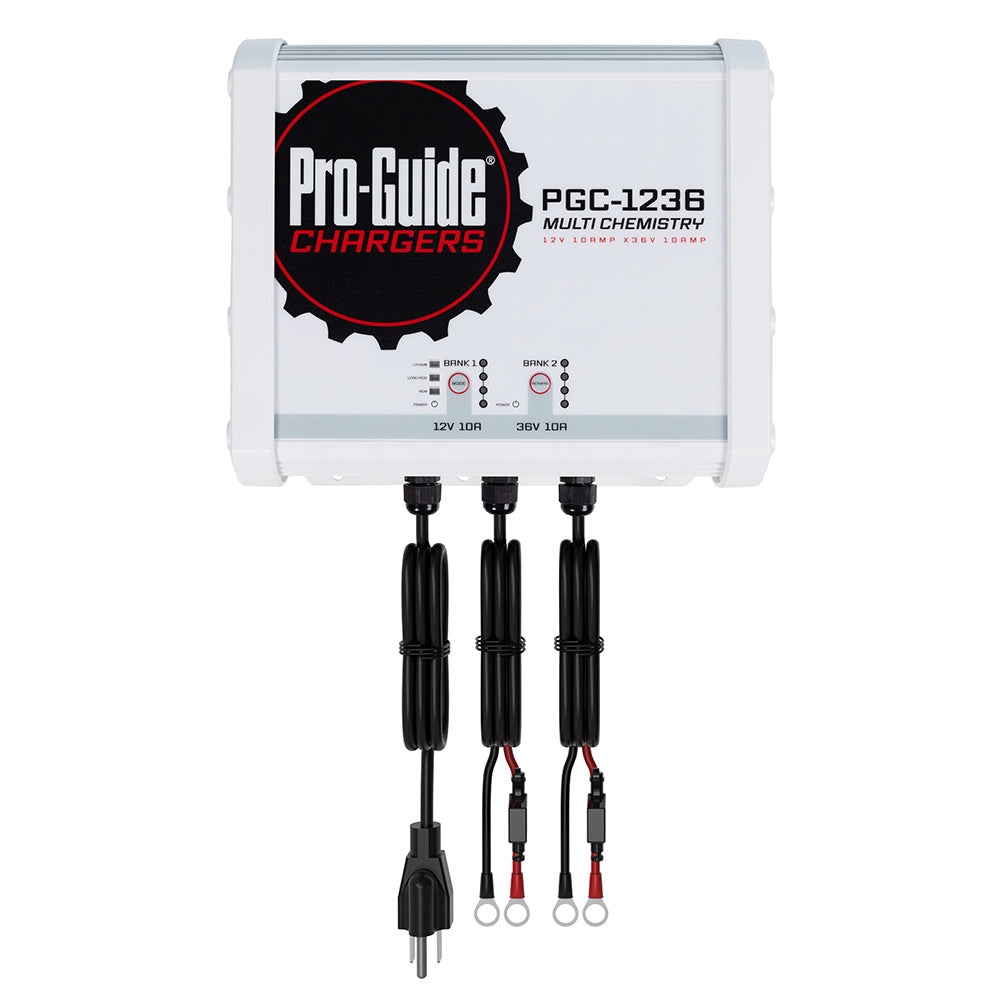

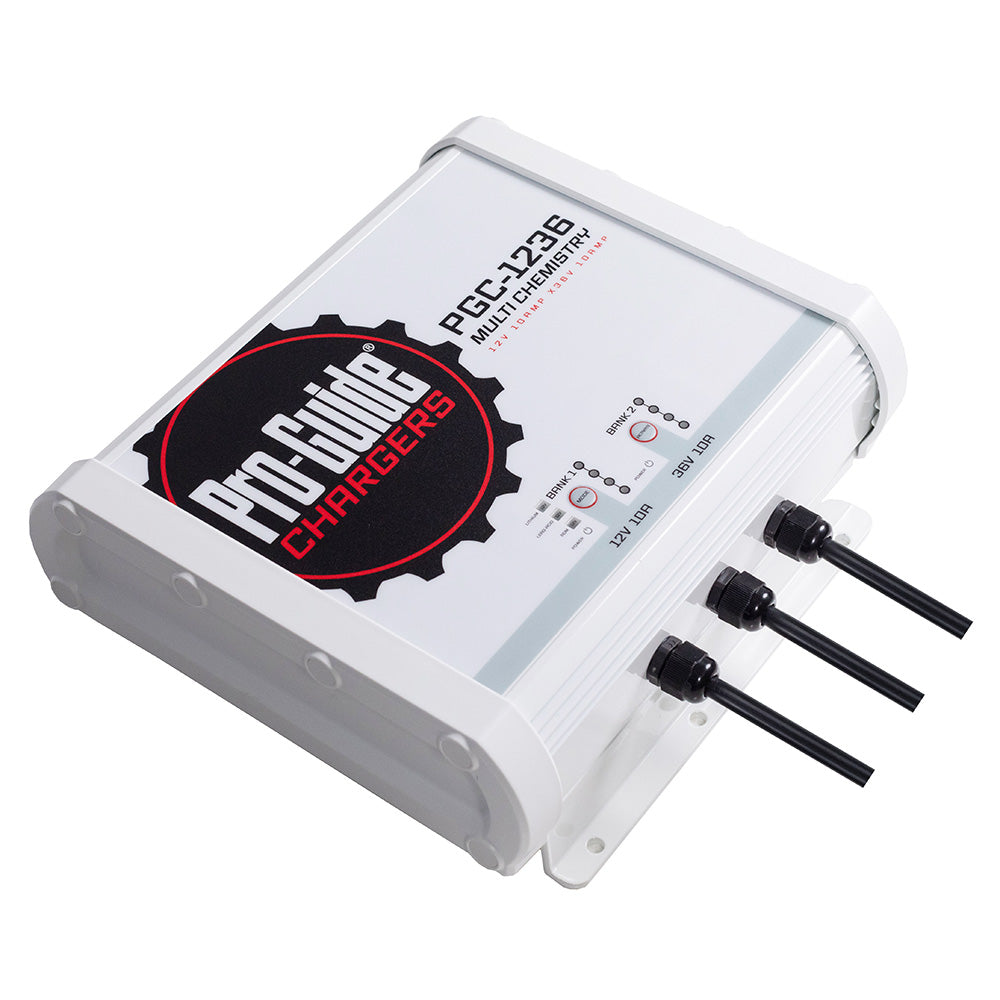

The Pro-Guide PGC-1236 is a 12V Lead Acid / AGM / Lithium & 36V Lithium on-board battery charger.
Each 12V Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.
Allowing the charger to supply a single 12V Charging Bank for Lead Acid, AGM, or Lithium Chemistries, and then a second bank to charge a 36V Lithium Battery(s).
Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.
The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each battery's state of charge on a specific timeline, ensuring that you'll be fully charged for your next adventure.
With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.
Protection:
Output Over-Voltage
Output Over Current
Output Short Circuit
Output Reverse Polarity
Over Temperature
Input:
Input Voltage: AC 110-120V
Frequency: 60Hz
Input Current: <6A
Specifications:
Battery Type: 12V Lead Acid/AGM/Lithium & 36V Lithium
Output Voltage: DC 12V x 1 & DC 36V x 1
Max Output Voltage: 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, & 14.4-14.7 for Lithium Battery & 43-44 for 36V Lithium Battery
