The latest Rainman innovation introduces full automation for our Modular and Framed families of watermakers. It allows operation of the system by a wired remote micropanel and a bluetooth connected phone app. Be comfortable that the automated system will safely control the pressure, manage how much water is made, and operate in fresh, brackish, or seawater.

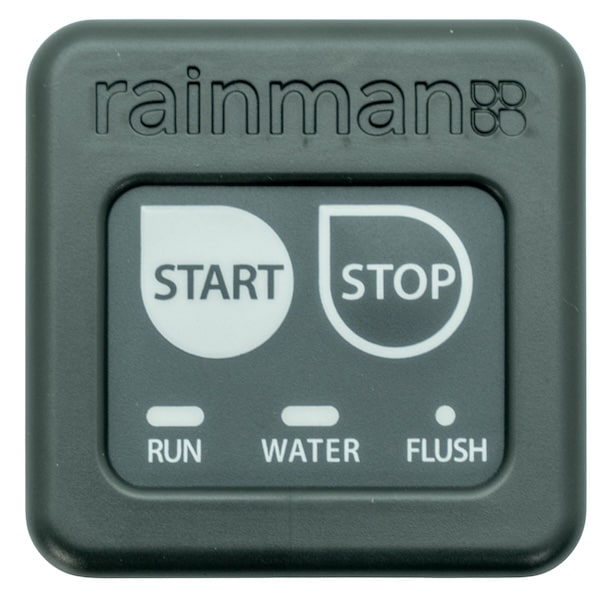

The automated control panel has two small micropanels for system control. One is located within the main panel near the watermaker and another is for a wired remote operation. It contains START and STOP buttons, along with LED indicators for RUN, WATER, and FLUSH. The timer can be set by holding the START button for a few seconds. Or have it connected to your tank’s float switch to automatically shut the system down when full.
Use of the Rainman phone app provides full monitoring and control of your Rainman watermaker. In addition to startup and shutdown of the system, the run timer can be set in terms of time or litres/gallons made. Full operational parameters can be monitored in real time:
– Low pressure to know when prefilter needs changing
– High pressure to ensure pump is operating satisfactorily
– Product water flow rate to monitor output
– Brine water flow rate to ensure total pump throughput is correct
– Product water salinity and temperature
– Diverter valve status to ensure water is flowing to the tank
All fault conditions are presented with helpful tips to ensure your system is operating correctly.
The apps are available on your app store and has basic demo mode to gain insight on capabilities.
No Customers are left behind. Any AC powered Rainman watermaker that has been installed can be upgraded to incorporate the fully automated control panel. This includes systems currently operating with the manual control panel or even portable systems that have been plumbed in.

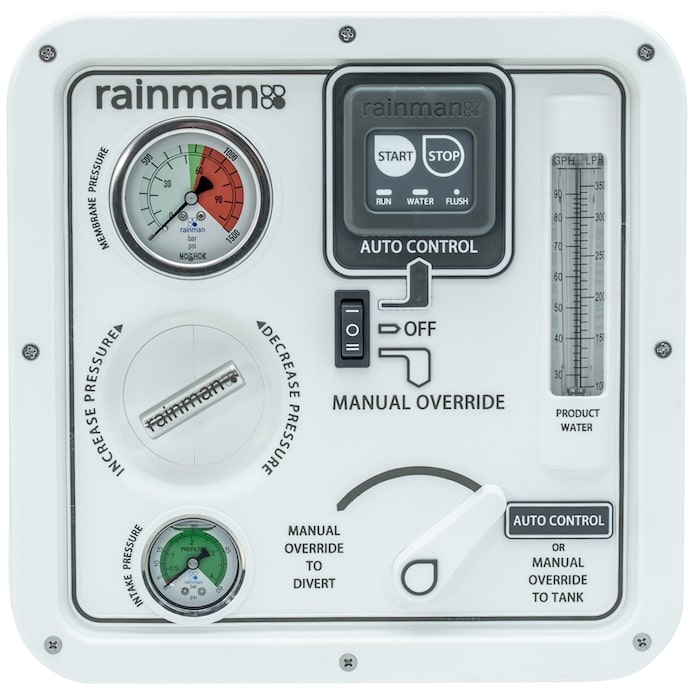

Upgrading from a current manual control panel with autoflush is a matter of swapping out the old panel for the new panel. Cutout is the same, but the system is about 25mm (1″) deeper in the back. The auto panel comes with a 30mm extender to mount the panel proud of the wall if required. The extender also fits with the current enclosure box. The autoflush motor valve will be replaced by a solenoid valve.
In the unlikely scenario of an electronics or sensor failure, simply turn the switch on the main panel to “Manual Override”. The system can then be controlled by the manual pressure control valve, using the analogue pressure gauges and flow metres to operate your Rainman watermaker.
When you add any Rainman Watermaker to your cart , add the Annual Supply Kit to your cart for FREE
Rainman Watermaker - Annual Supply Kit
The Rainman Advantage
Rainman Watermakers offer a compact and efficient solution for producing fresh, potable water from seawater. Designed for versatility, these systems can be installed in a space-saving configuration or used as a portable unit for ultimate flexibility.
Rainman watermakers are built with premium components sourced from leading manufacturers, including Honda, General Pump, Filmtec, and Noshok. We ensure that the filters, membranes, and replacement parts are non-proprietary, facilitating easy service and support globally.
Portable or Installed configurations
Rainman Watermakers are available in Portable and Installed configurations. Each can be converted to the other for maximum flexibility! Portable and installed systems allow for you to choose the best fit for your application as your preference changes.
The Rainman Watermaker portable configuration comes ready to go right out of the box. With set up of your portable desalination taking as little as 10 minutes, you can benefit right away from a fully functional, and extremely robust portable desalination system without the cost and downtime of complex installations.
Rainman watermakers can be installed within there sturdy cases, or as a traditional installed module. This gives you the flexibility should you choose to install your watermaker immediately, or if even you decide to in years from now. A range of accessories are available to help you install your Rainman watermaker in our parts store.
Electric or Gasoline Watermaker
Rainman Watermakers are solid, robust portable desalination systems designed for the extremes of a maritime environment and built with ingenuity, with the most popular of our systems needing only a small portable generator to operate, and our gasoline systems being completely independent and backed by the global and prestigious Rainman Honda warranty. Check out the videos below to watch out most popular portable desalination systems in action and why you too will fall in love the Rainman Watermakers.
ELECTRIC WATERMAKER
Rainman watermakers are quick and easy to setup, yet very simple and reliable to operate. Our 115V rainman desalination systems are the most popular system on the market.
GASOLINE WATERMAKER
True portability, our gasoline systems require no external power, and are the icon of true efficiency. 1 gallon of gasoline equals 140 gallons of water. No Power, No Problem.
