Dashboard Mount with Backing Plate for 8" Tablets with Cases

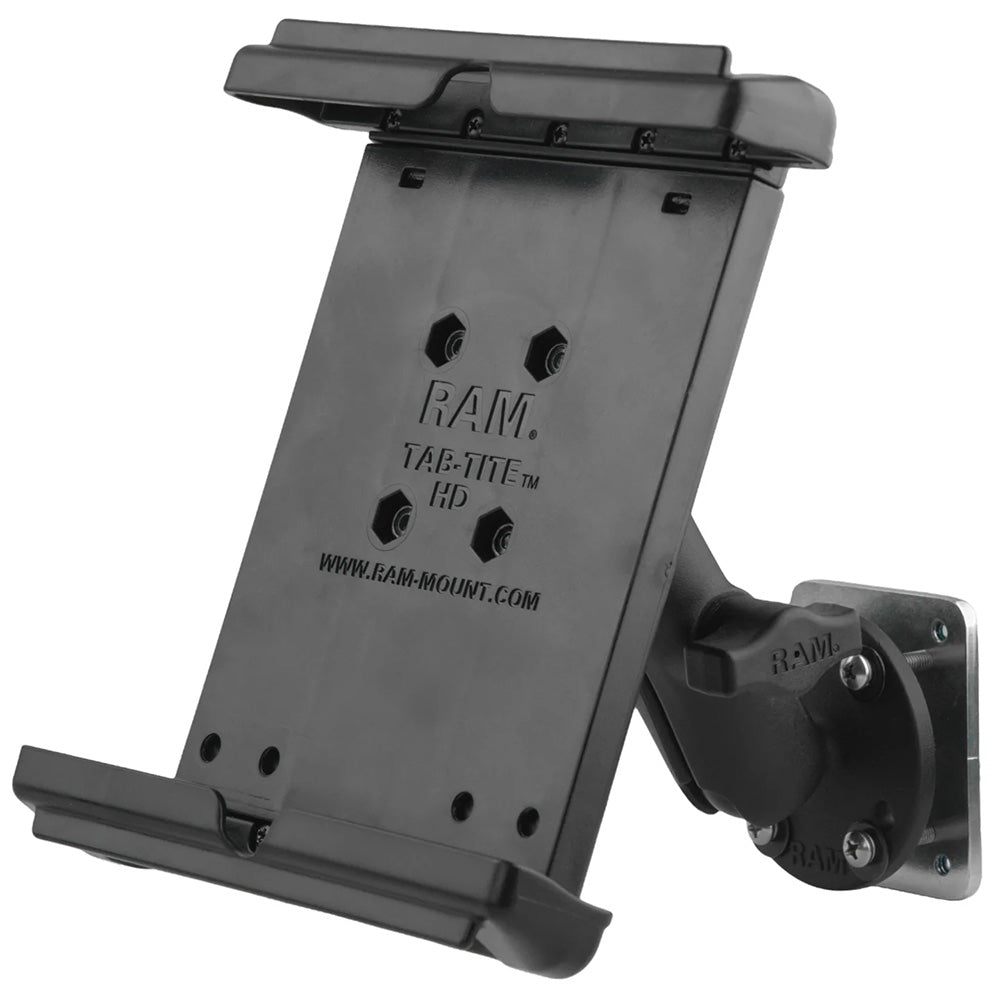

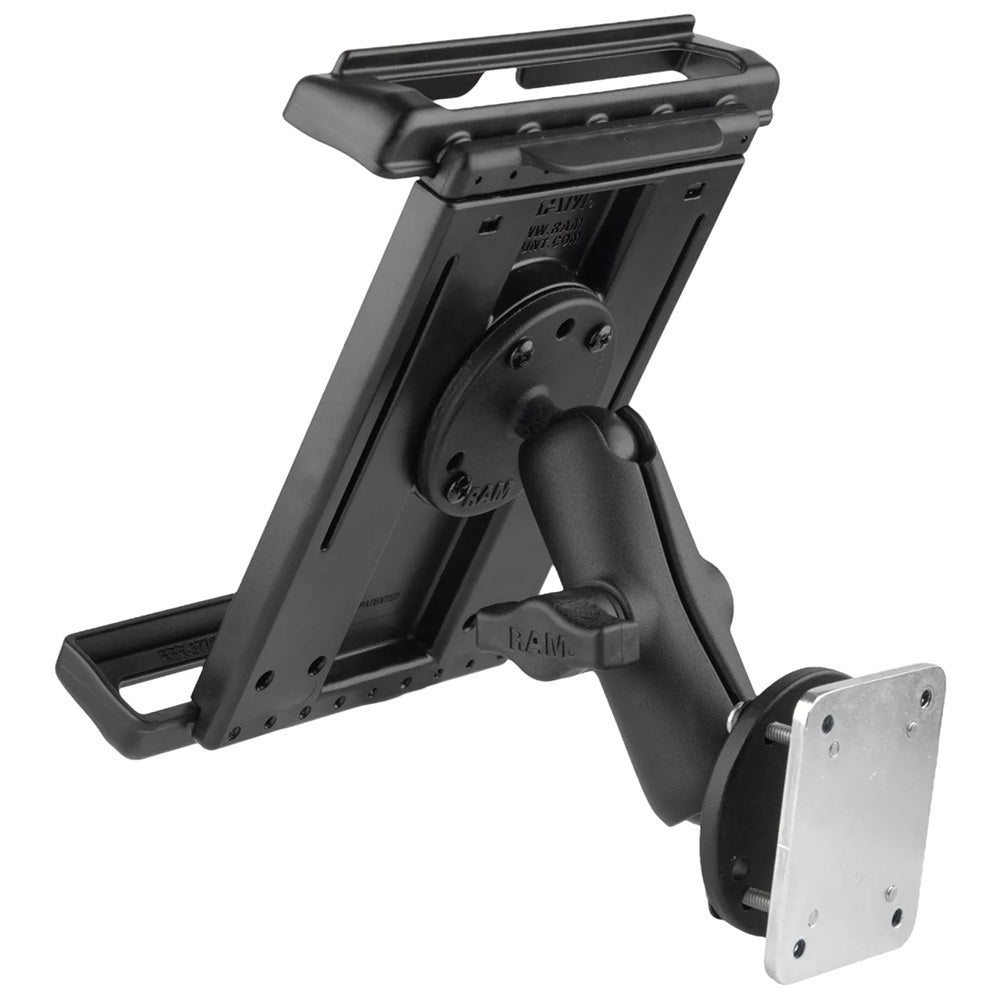

This vehicle kit consists of a RAM® Tab-Tite™ spring-loaded holder for 8" tablets with a case, a medium B-size double socket arm, two 2.5" diameter round bases that contain the universal AMPS hole pattern, a 2.10" x 2.60" backing plate, and mounting hardware.
The mount is designed with a 1-diameter B-size rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles.
Features:
- The spring-loaded holder secures most 8 in. tablets with a case; interchangeable end cups allow you to modify the holder when upgrading devices
- Includes a 4-hole AMPS pattern ball adapter, a B-size medium-length double socket arm, and a backing plate kit for drill-down mounting; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Specifications:
- Hardware Included: Assembly Hardware, (1) 2.10" x 2.60" Steel Backing Plate, (4) #8-32 x 1" Screws, (4) #8 Split Lock Washers, and (4) #8 Flat Washers
- Holder Dimensions (inch): Height Range: 7.125" - 9.5", Width Range: 5.06" - 5.68", Depth Range: .13" - 1"
- Socket to Socket Length (inch): 3”
- Hole Pattern (inch): 4-Hole AMPS: 1.181" x 1.496", 3-Hole 120-Degree: 1.812" Diameter
- Plate Size (inch): 2.5" Diameter
- Ball Size (inch): B size (1”)
- Weight Capacity: The standard use is 2 lbs. and the heavy-duty use is 1 lb.
- Materials: Marine-grade aluminum, high-strength composite, and powder-coated steel
- Weight: 1.04 lb.
Compatible Devices:
- Apple: iPad mini 6 with Case
- Amazon: Fire 7 Kids, Fire HD 8 Kids, and Fire HD 8 with Case
- ASUS: MeMO Pad 8 with Case, VivoTab 8 with Case
- Dell: Venue 8 with Case, Venue 8 (2014) with Case, Venue 8 7840 with Case, and Venue 8 Pro with Case
- Huawei: MediaPad M3 with Case, MediaPad M3 Lite with Case, MediaPad T1 8.0 with Case, and MediaPad T3 8 with Case
- Lenovo: Ideapad Miix 300 with Case, IdeaTab A2107 with Case, Tab 2 A8 with Case, Tab 4 8 with Case, Tab 4 8 Plus with Case, Tab A8-50 with Case, Tab S8 with Case, and Tab3 8 with Case
- LG: G Pad F 8.0 (2nd Gen) with Case, G Pad F2 8.0 with Case, G Pad II 8.0 with Case, and G Pad X II 8.0 with Case
- Nvidia: Shield Tablet with Case
- Panasonic: Toughpad FZ-M1
- Samsung: Galaxy Tab 2 7.0 with Case, Galaxy Tab 3 8.0 with Case, Galaxy Tab A 8.4 with Case, Galaxy Tab A7 Lite 8.7 with Case, Galaxy Tab E 8.0 with Case, Galaxy Tab Pro 8.4 with Case
